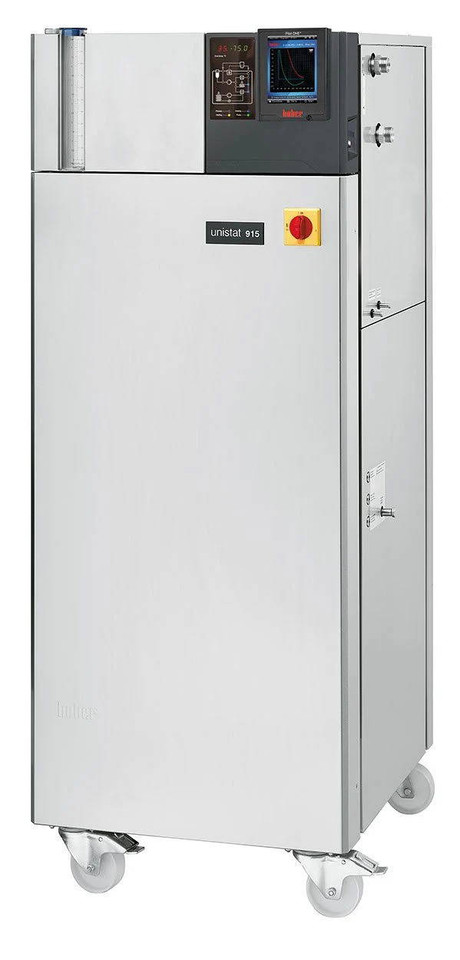

General & Temperature Control

Temperature range:

-90...250 °C

Temperature stability:

±0,01 K

Display resolution:

0,01 K

Alarm message:

optic, acoustic, relay

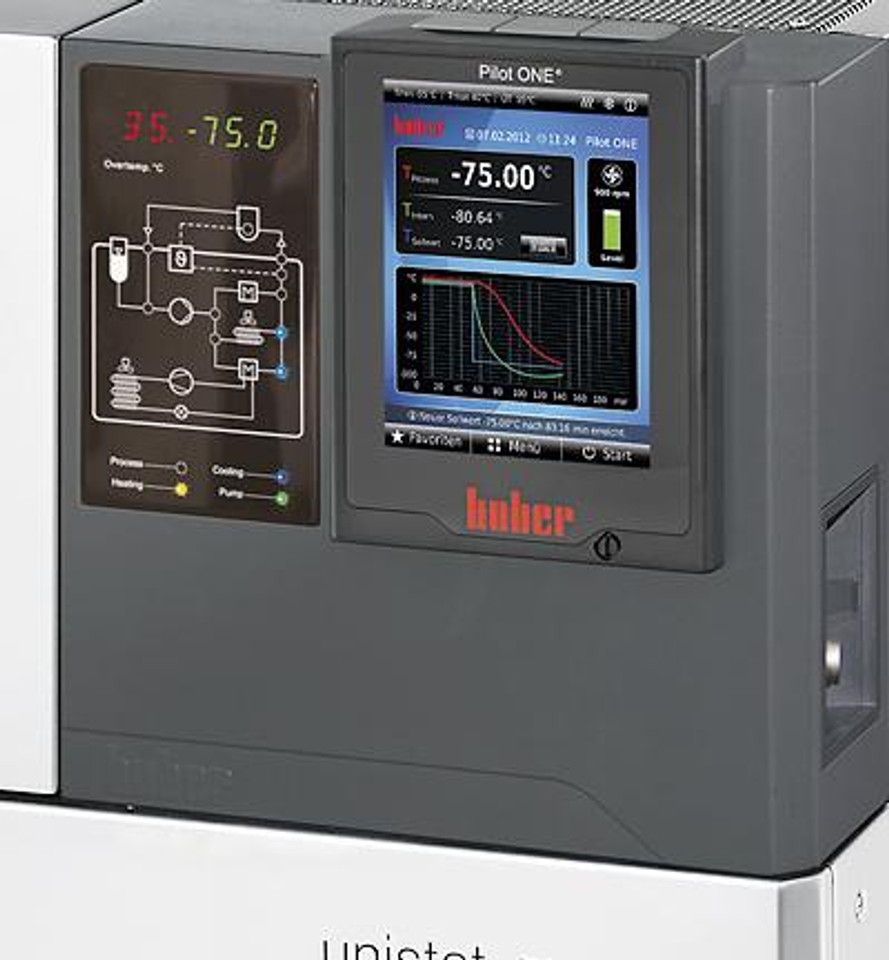

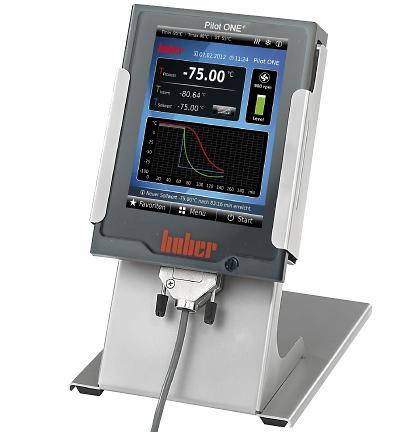

Controller:

Pilot ONE

Safety class:

III / FL

Protection class:

IP20

Dimensions (W x D x H):

630 x 704 x 1851 mm

Weight, net:

545 kg

Heating / cooling capacity

Heating capacity:

6 kW

Cooling capacity:

°C

kW

250

6,5

200

7,5

150

9

100

11

0

11

-20

11

-40

8,2

-60

4,2

-80

1,3

-90

0,6

Refrigeration machine:

water-cooled, CFC- and HCFC-free

Refrigerant 1st stage:

R507 (A1, H280)

Refrigerant quantity 1st stage:

2,9 kg

Refrigerant 2nd stage:

R23 (A1, H280)

Refrigerant quantity 2nd stage:

1,23 kg

Circulation pump

Delivery capacity pressure pump max.:

110 l/min; 1,5 bar

Pump connection:

M30x1,5 AG male

Max. permissible viscosity:

50 mm²/s

Pump speed adjustable:

Yes

Pump type:

magnetically coupled, stainless steel

Pump characteristics:

Pressure pump, variable speed, magnetically coupled

Connections

External sensor connection:

Pt100

Control input:

ECS ONE

Control output (potential-free contact):

POKO ONE

Interface digital:

Ethernet, USB (Host u. Device), RS232

Operating data

Permissible ambient temperature:

5...40 °C

Sound pressure level:

64 dB(A)

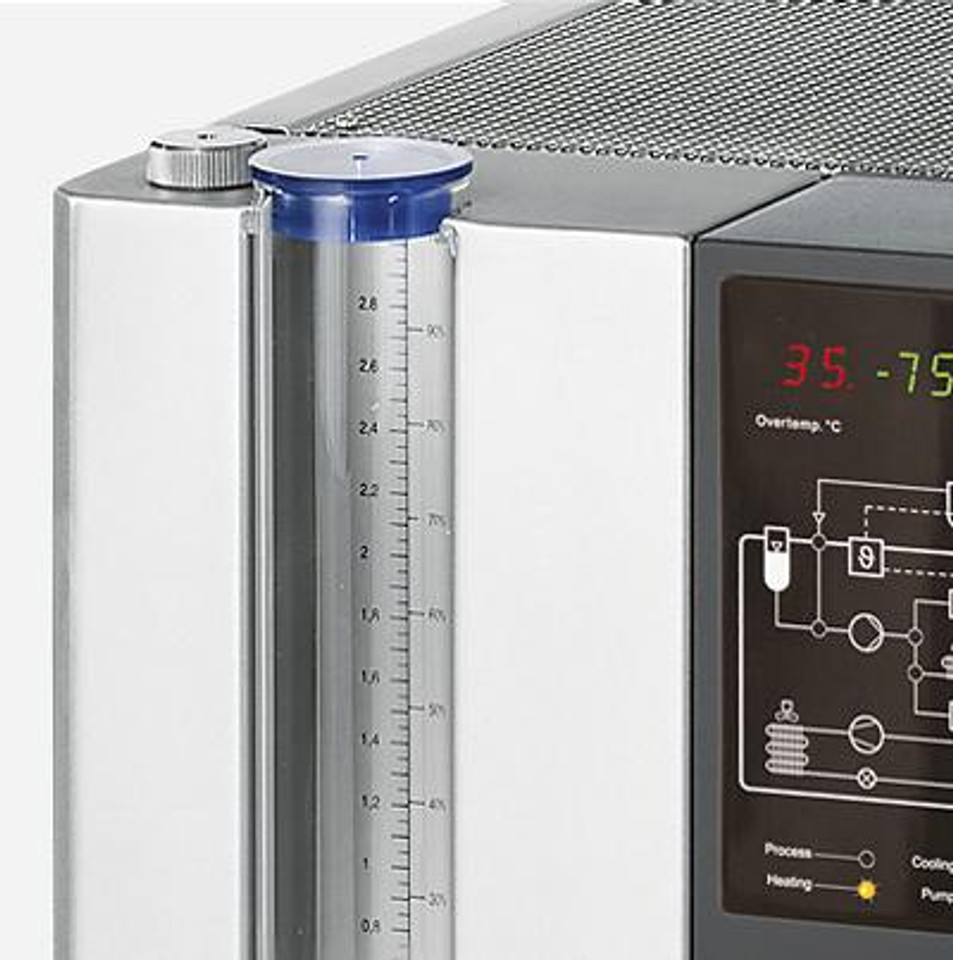

Filling volume min.:

3,9 l

Expansion volume:

6,5 l

Cooling water connection:

G3/4 male

Cooling water consumption at 15°C, flow 0°C:

720 l/h

Cooling water differential pressure min.:

1 bar

Cooling water pressure max.:

6 bar

Power supply:

208V 3~ 60Hz

Current consumption max.:

52 A

Fuse:

3x63 A
