Description

Notice: This item is subject to drop ship and may have a extended lead time

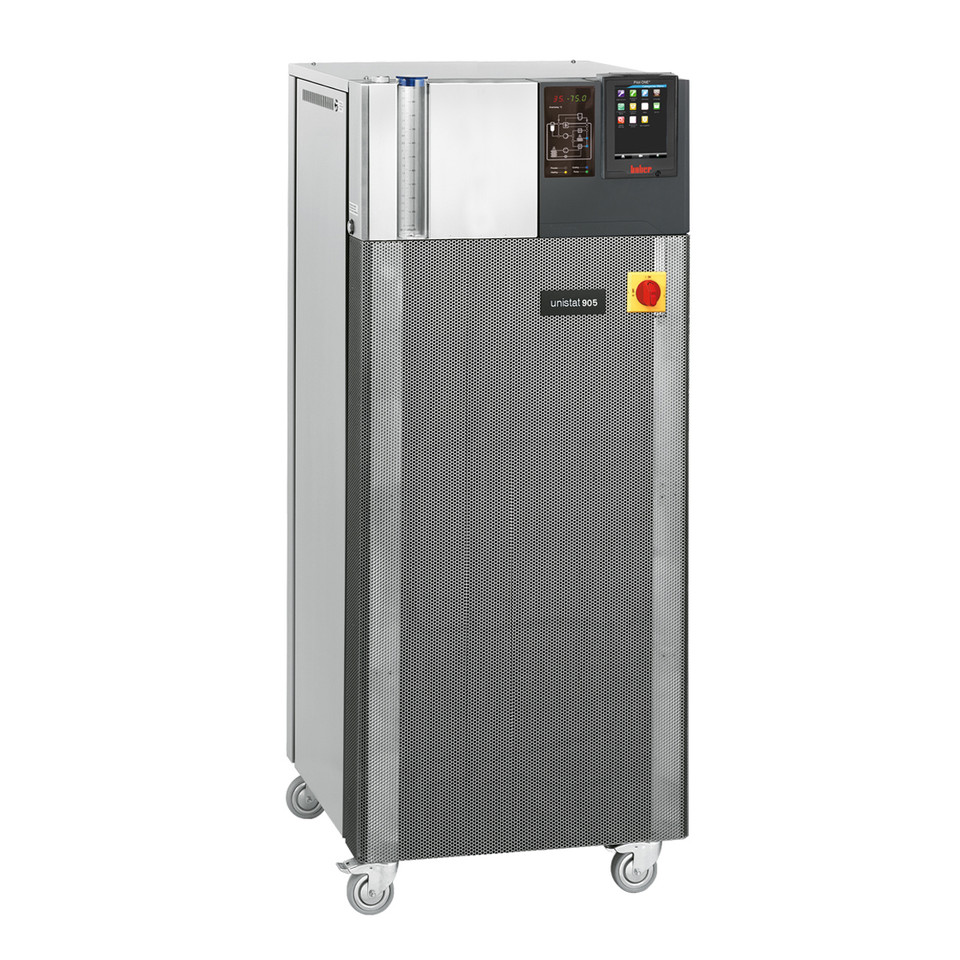

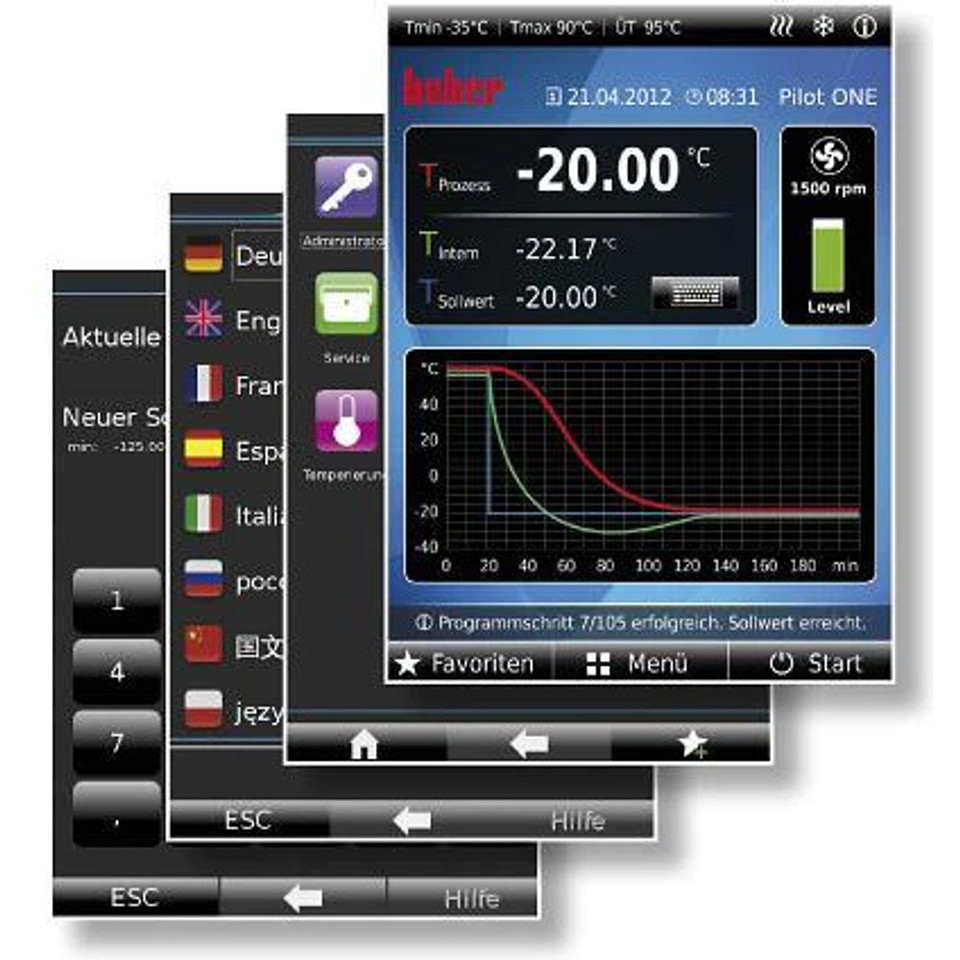

Unistat Circulators are an ideal solution for fast and precise thermal control of externally connected applications. These systems offer rapid temperature change and a wide temperature range without having to change fluid. The new Pilot ONE controller features a navigation system with easily remembered icons and menus which are sorted by color to make routine work simpler. An amazing software guides you through your set up ensuring all the necessary settings are correct.

Unistat 905 208V Data sheet

Click Here 3 Year Warranty Register

Please observe the notes on installation and/or the space requirements of our products

General Information & Temperature Controller
Temperature range	-90 to 250 °C
Temperature stability	±0.01 °C
Temperature control	TAC, self-optimizing (True Adaptive Control)
Display resolution	0.01 °C
Alarm message	optical, acoustical
Controller	Pilot ONE (E-grade "Professional")
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	540 x 654 x 1738 mm \| 21.26 x 25.75 x 68.43 inches
Weight	396 kg \| 873.18 pounds
Heating / Cooling Capacity
Heating capacity	6 kW
Cooling machine	air-cooled
Refrigerant 1. stage	R452A (A1, H280) (2,5 kg)
Refrigerant 2. stage	R23 (A1, H280) (0,75 kg)
Circulation Pump
Pressure pump max.	48 lpm ; 0.9 bar \| 12.68 gpm ; 13.05 psi
Pump connection	M30x1,5 AG male
Permissible viscosity	50 mm²/s
Connections
Pt100 connection	Pt100
Analogue input	via optional Com.G@te
Analogue output	via optional Com.G@te
Digital interface	RS232, Ethernet, USB Device, USB Host
Operating Data
Old sku	1035.0013.01
Permissible ambient temp.	5...35 °C
Filling volume min.	3.2 Liters \| 0.85 gal
Volume of expansion	5.3 Liters \| 1.4 gal
Power supply	208V 3~ 60Hz
Current max	40 A

undefined

For Technical Support, Questions, or Other Issues Please Email or Call Us!

Specifications

Temperature range:	-90 to 250 °C
Temperature stability:	±0.01 °C
Heating capacity:	6 kW
Filling volume min.:	3.2 Liters \| 0.85 gal
Pressure pump max.:	48 lpm ; 0.9 bar \| 12.68 gpm ; 13.05 psi
Current max.:	40 A
Dimensions (W x D x H):	540 x 654 x 1738 mm \| 21.26 x 25.75 x 68.43 inches
Weight:	396 kg \| 873.18 pounds
