Description

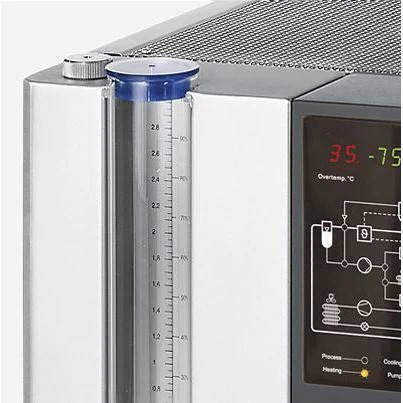

HUBER Unistat 815 Dynamic Pilot ONE Temperature Controller | USA Lab
Unistat 815 circulators deliver fast, precise thermal control for demanding external applications. With wide working range (-85…250 °C) and no fluid changeovers, they provide rapid temperature ramps and tight stability for reactors, pilot plants, and process scale-up.

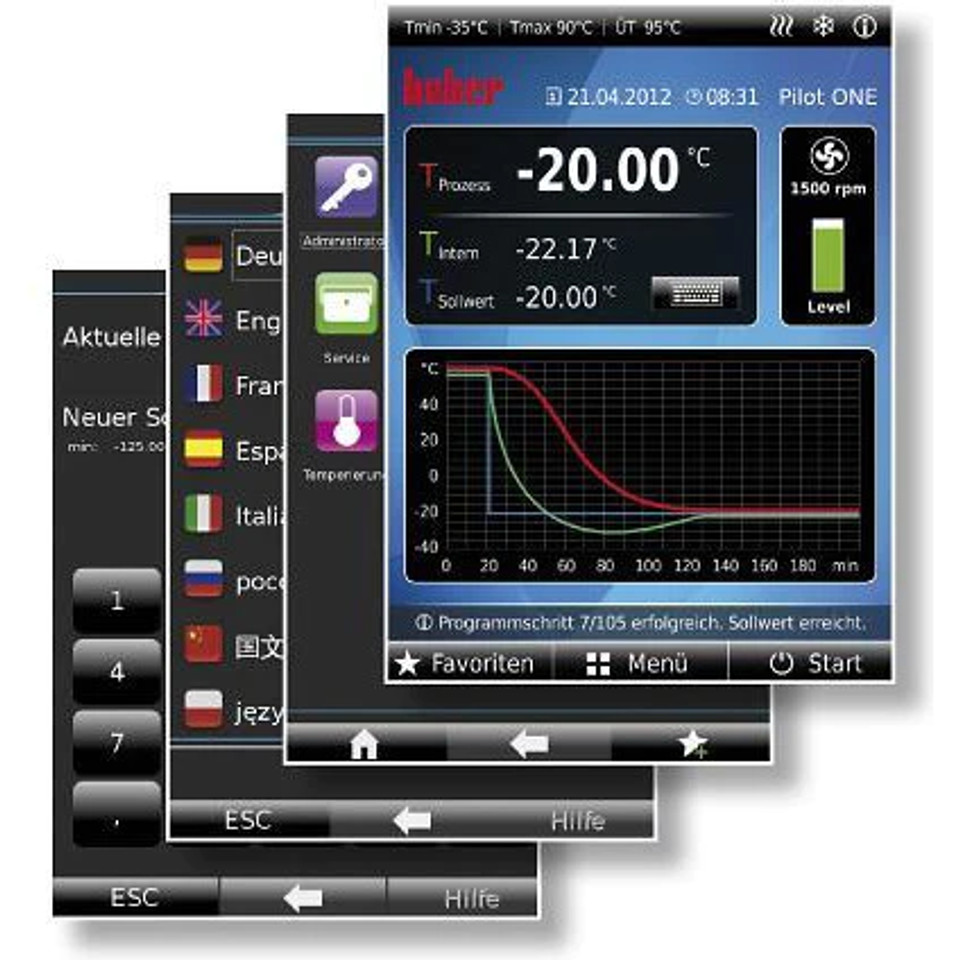

The Pilot ONE controller introduces an intuitive icon-based interface with color-sorted menus and guided setup. Smart software walks you through configuration so critical safety, control, and communication parameters are correct from the start.
Verify electrical requirements (208V 3~ or 460V 3~) and facility power before ordering. Follow manufacturer guidelines for refrigerants and ventilation; indoor use, 5–40 °C ambient.
-85…250 °C Range ±0.01 K Stability Pilot ONE Control Air-Cooled, CFC/HCFC-Free
Dynamic control: Powerful heating/cooling profile with rapid ramps and tight process stability.
Pilot ONE UX: Guided setup, clear alarms (optic/acoustic/relay), and advanced communications.
Ready for scale-up: Variable-speed magnetically coupled pump; up to 40 l/min at 0.9 bar.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why the Unistat 815 with Pilot ONE?
- Wide working range — -85 to 250 °C without changing fluid for most applications.
- Excellent stability — ±0.01 K with 0.01 K display resolution for critical processes.
- Guided control — Pilot ONE icon navigation, color menus, and clear alarm messaging.
- Robust refrigeration — Air-cooled, CFC/HCFC-free cascade using R452A & R23.
- High-flow circulation — Magnetically coupled stainless pump; variable speed pressure mode.
Talk to an expert
Need help selecting voltage, fluid, or accessories for your application?
Technical Specifications
| General & Temperature Control | 208V 3~ 60Hz | 460V 3~ 60Hz |
|---|---|---|
| Model | 208V 3~ 60Hz | 460V 3~ 60Hz |
| Temperature range | -85...250 °C | |
| Temperature stability | ±0,01 K | |
| Display resolution | 0,01 K | |
| Alarm message | optic, acoustic, relay | |
| Controller | Pilot ONE | |
| Safety class | III / FL | |
| Protection class | IP20 | |
| Dimensions (W x D x H) | 460 × 604 × 1665 mm | 460 × 604 × 1465 mm |
| Weight, net | 331 kg | 229 kg |
| Heating / cooling capacity | ||
| Heating capacity | 2 kW | 2.6 kW |
| Cooling capacity | °C | kW |
| 250 | 6,5 | |
| 200 | 7,5 | |
| 150 | 9 | |
| 100 | 11 | |
| 0 | 11 | |
| -20 | 11 | |
| -40 | 8,2 | |
| -60 | 4,2 | |
| -80 | 1,3 | |
| -90 | 0,6 | |
| Refrigeration machine | air-cooled, CFC- and HCFC-free | |
| Refrigerant 1st stage | R452A (A1, H280) | |
| Refrigerant quantity 1st stage | 1.8 kg | |
| Refrigerant 2nd stage | R23 (A1, H280) | |
| Refrigerant quantity 2nd stage | 0.39 kg | |
| Circulation pump | ||
| Delivery capacity pressure pump max. | 40 l/min; 0.9 bar | |
| Pump connection | M30x1,5 AG male | |
| Max. permissible viscosity | 50 mm²/s | |
| Pump speed adjustable | Yes | |
| Pump type | magnetically coupled, stainless steel | |
| Pump characteristics | Pressure pump, variable speed | |
| Connections | ||
| External sensor connection | Pt100 | |
| Control input | ECS ONE | |
| Control output (potential-free contact) | POKO ONE | |
| Interface digital | Ethernet, USB (Host u. Device), RS232 | |
| Operating data | ||
| Permissible ambient temperature | 5...40 °C | |
| Sound pressure level | 64 dB(A) | |
| Filling volume min. | 3.9 l | |
| Expansion volume | 3.3 l | |
| Current consumption max. | 23A | 13A |
| Fuse | 3x25 A | 3x16A |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the HUBER Unistat 815 Dynamic Pilot ONE Temperature Controller?
The HUBER Unistat 815 Dynamic Pilot ONE Temperature Controller is a high-performance recirculating system offering -85…250 °C control with ±0.01 K stability for external applications.
How does Pilot ONE improve the Unistat 815?
Pilot ONE adds guided setup, icon navigation, color-coded menus, and comprehensive alarm messaging to streamline configuration and operation of the HUBER Unistat 815 Dynamic Pilot ONE Temperature Controller.
What pump performance does the HUBER Unistat 815 provide?
The HUBER Unistat 815 Dynamic Pilot ONE Temperature Controller uses a magnetically coupled stainless pressure pump with variable speed, delivering up to 40 l/min at 0.9 bar.
Which power options are available for the HUBER Unistat 815?
Two configurations: 208V 3~ 60 Hz and 460V 3~ 60 Hz. Check max current (23 A / 13 A) and fuses (3×25 A / 3×16 A) before purchase.
