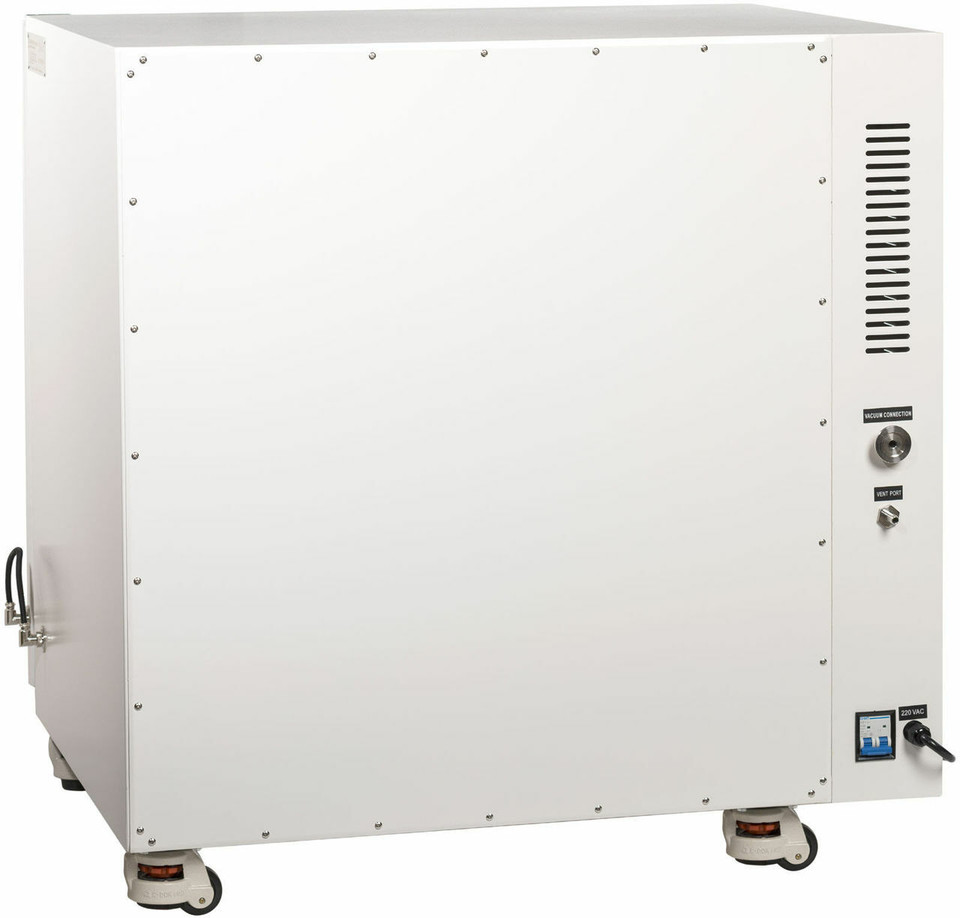

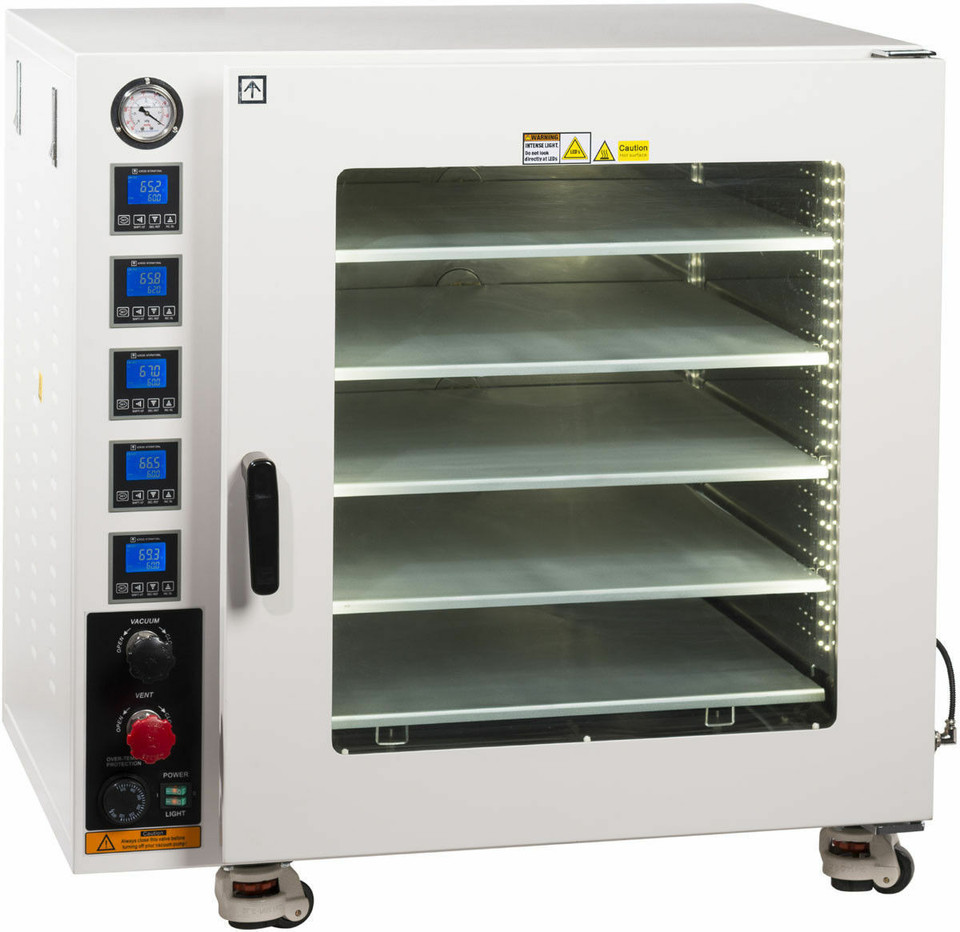

Ai UL/CSA Certified 7.5 CF 480°F Vacuum Oven with All SST Tubing




Brand :

$8,990.00
SKU:
AT75a-UL
UPC:
840215209122
Condition:
New
Brand:
Across International
Model:
AT75a-UL
MPN:
AT75a-UL

**PLEASE CALL FOR AVALIBILITY, ITEM MAY DROP SHIP**

FOUR ALUMINUM SHELVES INCLUDED WITH OVEN PURCHASE. SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

Introducing the new Ai UL/CSA certified AccuTemp 7.5 cubic foot vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption..


Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Attention: Before initial use, run oven at 400°F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International and USA Lab Equipment are not responsible for any loss of material inside of the oven.

Features

  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
  • 3rd gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in station-able swivel casters with locks for ultra-portability.
  • For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance within 30 minutes from our engineers.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

Vacuum Oven Specifications

 Electric

110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
or
220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts

 Heater

300 watts x 5, built into 5 aluminum shelves, for the fastest, most energy efficient and uniform heating

 Chamber

Size: 22 x 23.5 x 25"
Material: Stainless steel
Capacity: 7.5 cubic feet

 Temperature Control

Controller: low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 250°C (or 480°F)
Display units: Fahrenheit or Celsius
Uniformity: +/- 5% of setpoint
Dwelling timer range: 1 to 9999 minutes
Warm-up time to 100°F: 45 minutes
Warm-up time to 480°F: 2 hours 15 minutes

 Vacuum

Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude)
Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange x 1
Vent port: KF25 flange x 1
Vacuum pump: Sold separately

 Weight

Unit: 410lbs, shipping: 630lbs

 Dimensions (WxDxH)

Unit: 34.5 x 33 x 35.5"
Shipping: 40 x 39 x 43"

 Shelves

Heated shelves: 5 non-removable aluminum shelves 22 W x 23.25" D each
Optional stackable aluminum shelves: 22 x 23.25 x 2.25" (WxDxH)
Total area w/o stackable shelves: 512 x 5 = 18 ft² or 2560 in²
Total area with 5 stackable shelves: 512 x 10 = 36ft² or 5120in²
Distance between shelves (without stackable shelves): 4.5"
Distance between shelves (with 5 stackable shelves): 2.25"
Max. load capacity per shelf: 20lbs

 Door Gasket Material

Silicone or Viton

 Observation Window

1/2" tempered safety glass

 Safety

Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial

 In-Door Lights

White LED

 Warranty

2 years

 Compliance

UL (E482564), CE



Standard Package

 Part Description

 Quantity

Part Omage

 Ai UL/CSA Certified AccuTemp 7.5 cu ft Vacuum Oven
1 pc

 KF25 Quick Clamp and Centering Ring 1 set
 User's Manual 1 pc
