AI UL/CSA CERTIFIED 4.8 Cu Ft Forced Air Drying Oven - 250°C 220V Single Phase




Brand :

$2,290.00
SKU:
FO19140
Condition:
New
Brand:
Across International
MPN:
FO19140
Furnace/Oven Type:
Forced Air Oven
Power Requirements:
220-240V 50-60Hz 15A Single Phase

**PLEASE CALL FOR AVALIBILITY, ITEM MAY DROP SHIP**

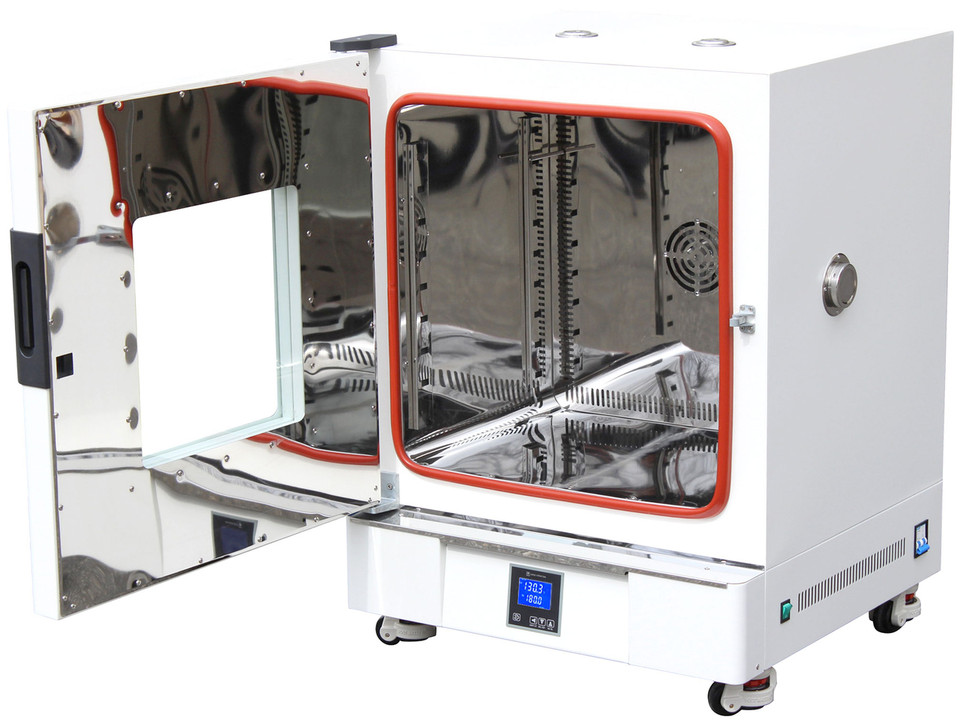

Ai 4.8 cu ft Forced Air Ovens use a microcontroller to enhance precision, accuracy and uniformity. Memory function retains all your settings when power is down and resumes previous oven operation when power is back up. Alarm can be set to trigger when current temperature is outside of desired range.

Note: This model only available in 220 volt single phase.



Features

• Great for medical device drying and sterilization
• Built-in temperature calibration
• Forced-air circulation combined with digital temperature control achieves dependable and uniform environment for a variety of laboratory applications
• Corrosion resistant stainless steel interior finish with toughened double glazing observation window
• Gentle downward flow along chamber wall provides less disruption to sample material
• Adjustable moisture escape port
• Overheat protection automatically cuts power when temperature is beyond limit or sensor fails



Ai 250°C 4.8 Cu Ft Specifications

Electrical Requirements

208-240VAC 50/60Hz Single Phase, 2500 Watts

Chamber Dimensions

21" W x 16.5" D x 22" H

Unit Dimensions

28" W x 25.75"D x 37.5" H

Shipping Dimensions

33" W x 32" D x 41" H

Temperature Range

Ambient Temperature to 250°C

Timer Range

1 to 9999 Minutes

Racks Included

2 (Additional Racks Available at Extra Cost)

Maximum Rack Capacity

9 (Height Between Each Rack is 2")

Moisture Escape Port

2" Diameter x 2, Adjustable (On Top of the Oven)

Access Port

2" Diameter x 1, With Covers

Shipping Weight

275lbs

Certification

ETL Tested to UL and CSA Standards (Optional), CE

Warranty

One Year















Standard Package


Part description

 Quantity

Part image

 AI 4.8 cu ft forced air oven
1 pc

 Stainless steel wire shelf (x2) and L-Brackets (x4)
 2 sets

 User's manual 1 pc






Brand:
Across International
MPN:
FO19140
Furnace/Oven Type:
Forced Air Oven
Power Requirements:
220-240V 50-60Hz 15A Single Phase
