Description

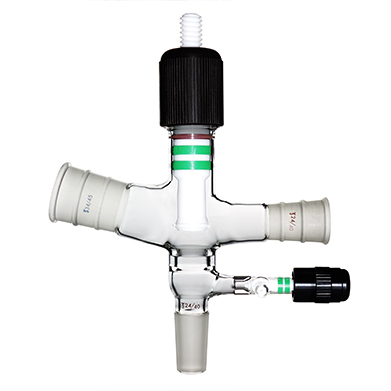

USA Made 34/45 Single Cow Isolation Adapter w/ Viton Gaskets & PTFE Valve C2
The USA Made 34/45 Single Cow Isolation Adapter is specifically designed for the APSPD5L-C2 5L Distillation Kit and can also fit other distillation heads when the outlet size is 34/45. Its large 34/45 inlet provides increased surface area while the isolation configuration helps support controlled operation during distillation workflows.
This C2 isolation adapter features a PTFE valve with three Viton gaskets for a secure seal and a smaller PTFE valve for convenient vacuum release. The combination of 34/45, 24/40, and 24/40 joint connections provides a defined connection configuration for compatible distillation equipment.
Designed as a USA Made high-quality component, the USA Lab C2 Cow Isolation Adapter is a practical upgrade for compatible distillation setups requiring isolation and easy vacuum release. Its specified joint sizes make it suitable for the APSPD5L-C2 5L Distillation Kit and other heads with a 34/45 outlet.
34/45 Large Inlet PTFE Valves Viton Gaskets USA Made
34/45 Inlet: Large 34/45 inlet — provides increased surface area for compatible distillation connections.
Sealing: PTFE valve with three Viton gaskets — supports a secure isolation seal.
Vacuum Release: Smaller PTFE valve — allows convenient vacuum release during operation.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this C2 Cow Isolation Adapter?
- Designed for APSPD5L-C2 — specifically made for the USA Lab APSPD5L-C2 5L Distillation Kit.
- 34/45 compatibility — can fit compatible distillation heads when the outlet size is 34/45.
- Large 34/45 inlet — provides increased surface area for the compatible connection.
- PTFE valve and Viton gaskets — the main valve uses three Viton gaskets to support a superior seal.
- Easy vacuum release — includes a smaller PTFE valve for convenient vacuum releasing.
Talk to an expert
Get product guidance, application support, and compatibility information for your distillation setup.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | USA Made 34/45 Single Cow Isolation Adapter w/ Viton Gaskets & PTFE Valve C2 |
| Product Type | Single Cow Isolation Adapter |
| Series / Configuration | C2 |
| Compatibility | APSPD5L-C2 5L Distillation Kits |
| Outlet Requirement | 34/45 outlet |
| Left Joint Size | 34/45 |
| Right Joint Size | 24/40 |
| Bottom Joint Size | 24/40 |
| Inlet Size | 34/45 |
| Inlet Configuration | Large inlet for increased surface area |
| Main Valve Material | PTFE |
| Vacuum Release Valve Material | PTFE |
| Valve Configuration | Main isolation valve and smaller vacuum-release valve |
| Gasket Type | Viton |
| Main Valve Gaskets | 3 gaskets |
| Seal Function | Isolation sealing |
| Vacuum Release Function | Convenient vacuum releasing |
| Manufacturing | USA Made |
| Application | Compatible distillation and isolation applications |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right equipment for your distillation workflow.
FAQ
What distillation kits is the USA Made 34/45 Single Cow Isolation Adapter designed for?
The USA Made 34/45 Single Cow Isolation Adapter is specifically designed for the APSPD5L-C2 5L Distillation Kits and can also fit compatible heads with a 34/45 outlet.
What are the joint sizes on the USA Made 34/45 Single Cow Isolation Adapter?
The adapter has a 34/45 left joint, a 24/40 right joint, and a 24/40 bottom joint.
What valve and gasket materials are used on the C2 Cow Isolation Adapter?
The C2 Cow Isolation Adapter uses PTFE valves and Viton gaskets. The main PTFE valve is equipped with three Viton gaskets for sealing.
Does the C2 Cow Isolation Adapter include a vacuum release valve?
Yes. The adapter includes a smaller PTFE valve designed for convenient vacuum releasing during compatible distillation operations.
