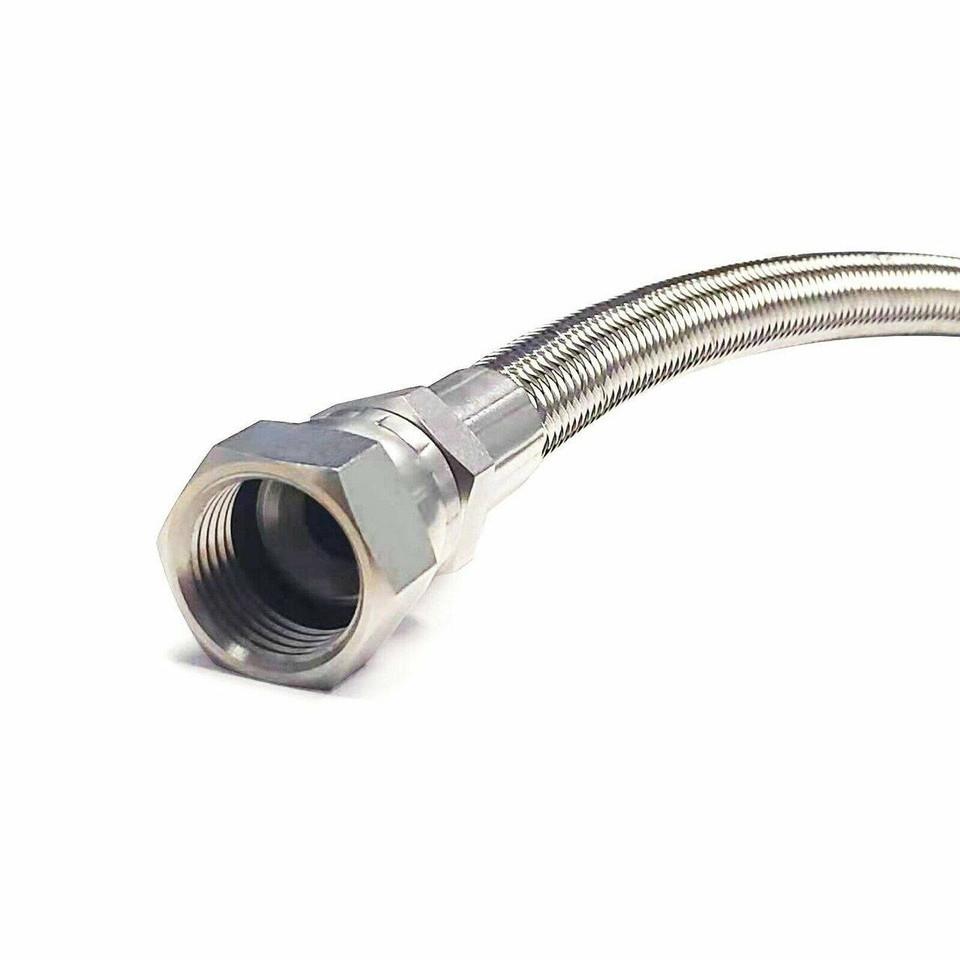

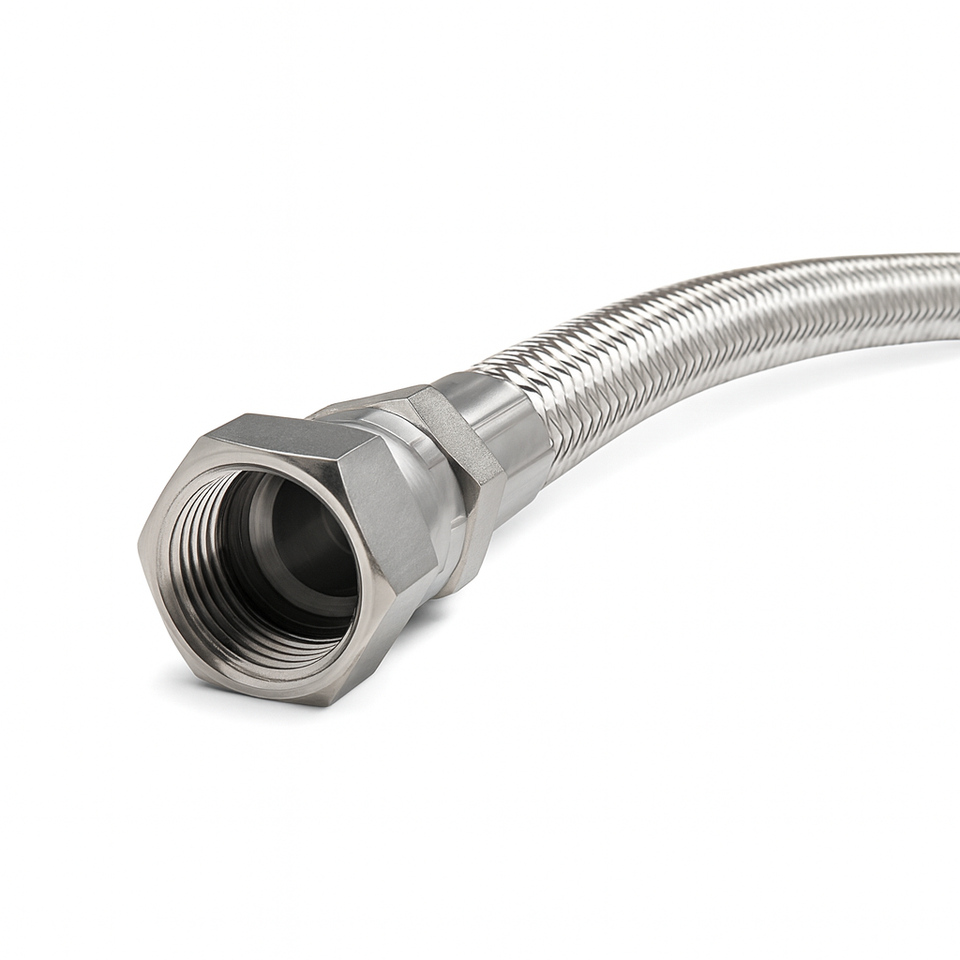

USA Made 1/4" 37° JIC Stainless Steel Hose

The USA Made 1/4" 37° JIC Stainless Steel Hose is a high-quality PTFE hose designed for demanding fluid-transfer applications. It features a smooth-bore carbon black static dissipative PTFE liner with Type 304 stainless steel wire braid reinforcement for durable service and pressure handling.

This smooth-bore JIC hose is designed to handle challenging fluids including acids, solvents, fuels, and chemicals. The stainless steel braid functions as a pressure carrier and protective covering, while the PTFE liner provides a low-friction internal surface that supports high flow rates and makes the hose easier to drain and clean.

The 1/4" hose uses a 1/4" 37° female JIC swivel connection and is rated for up to 3000 PSI working pressure and 12000 PSI minimum burst pressure. It operates from -65°F (-54°C) to +450°F (+230°C) and is USA Made for laboratory, chemical, pharmaceutical, food, steam, fuel, and other demanding applications. Not for outdoor hydraulic or automotive applications.

1/4" 37° Female JIC PTFE (Teflon) Liner 304 Stainless Steel Braid 3000 PSI Working Pressure

High Pressure: 3000 PSI maximum working pressure and 12000 PSI minimum burst pressure — supports demanding fluid-transfer applications.

Smooth-Bore PTFE: Carbon black static dissipative PTFE liner — provides a low-friction surface for high flow rates and easier draining and cleaning.

Wide Temperature Range: -65°F (-54°C) to +450°F (+230°C) — supports a broad range of temperature-sensitive applications.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Made 1/4" 37° JIC Stainless Steel Hose?

USA Made construction — manufactured using high-quality hose materials for demanding service applications.
Smooth-bore PTFE liner — carbon black static dissipative PTFE provides a low-friction internal surface.
304 stainless steel braid — provides pressure-carrying reinforcement and protective coverage around the hose.
High pressure capability — rated for 3000 PSI maximum working pressure and 12000 PSI minimum burst pressure.
Broad application range — suitable for chemical and acid transfer, pharmaceuticals, food products, steam lines, air applications, pulp and paper, fuels, lubricants, glass manufacturing, and wastewater or slurry applications.

Talk to an expert

Get product guidance, application support, and compatibility information for your fluid-transfer system.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Made 1/4" 37° JIC Stainless Steel Hose
Hose Type	37° Female JIC Hose
Connection	1/4" 37° Female JIC Swivel
Liner Material	PTFE (Teflon)
Liner Construction	Smooth-Bore Carbon Black Static Dissipative PTFE
Braid Material	304 Stainless Steel
Braid Function	Pressure Carrier and Protective Covering
Maximum Working Pressure	3000 PSI
Minimum Burst Pressure	12000 PSI
Minimum Bend Radius	2"
Temperature Rating	-65°F (-54°C) to +450°F (+230°C)
Actual ID	0.19"
Actual OD	0.3"
Electrical Dissipation	Carbon Black Static Dissipative PTFE
Hose Bore	Smooth Bore
Manufacturing	USA Made
Fluid Applications	Acids, Solvents, Fuels, Chemicals, Food Products, Pharmaceuticals
Additional Applications	Steam Lines/Tire Presses, Air, Pulp and Paper, Glass Manufacturing, Wastewater or Slurry
Application Restriction	Not for Outdoor Hydraulic / Automotive Applications

Popular Industries & Use Cases

Chemical & Acid Transfer Pharmaceutical Processing Chemical Sciences Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right hose and connection for your application.

Call 734-855-4890 Email Sales/Support

FAQ

What is the connection on the USA Made 1/4" 37° JIC Stainless Steel Hose?

The USA Made 1/4" 37° JIC Stainless Steel Hose uses a 1/4" 37° female JIC swivel connection.

What pressure is the USA Made 1/4" 37° JIC Stainless Steel Hose rated for?

The hose has a maximum working pressure of 3000 PSI and a minimum burst pressure of 12000 PSI.

What materials are used in the USA Made 1/4" 37° JIC Stainless Steel Hose?

The hose uses a smooth-bore carbon black static dissipative PTFE liner with Type 304 stainless steel wire braid reinforcement.

What is the temperature range of the USA Made 1/4" 37° JIC Stainless Steel Hose?

The temperature rating is -65°F (-54°C) to +450°F (+230°C). The hose is intended for applications including chemical and acid transfer, pharmaceuticals, food products, steam, air, fuels, lubricants, and other demanding service applications. It is not for outdoor hydraulic or automotive applications.
