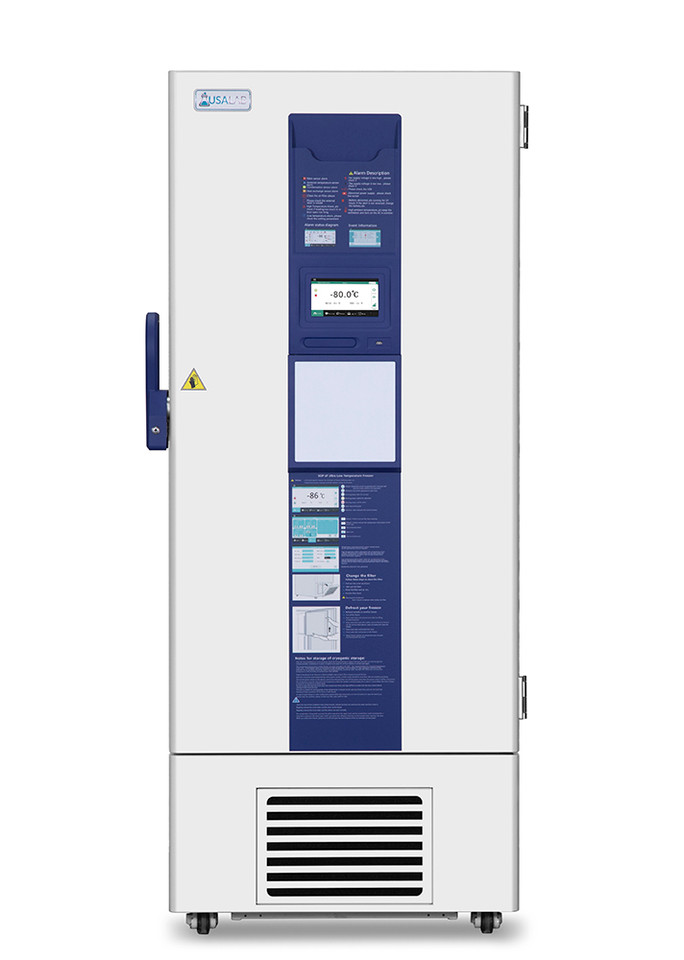

USA Lab UltraChill 20.8 Cu Ft -86°C Upright Ultra-Low Freezer - Touch Screen - UL Listed

UltraChill™ -86°C Upright Ultra-Low Freezer — 20.8 Cu Ft | USA Lab

Introducing our UltraChill 20.8 Cu Ft -86°C Upright Ultra-Low Freezer, engineered to protect high-value vaccines, enzymes, cell lines, and long-term research specimens. A robust cascade refrigeration system, precision microprocessor controls, and VIP + PURF insulation deliver dependable -86°C performance.

With a wide operating range of -40°C to -86°C, stainless-steel SUS304 interior, and foamed inner doors, UltraChill ensures exceptional uniformity and recovery while minimizing frost accumulation.

For compliance and uptime, the system integrates comprehensive audible/visual alarms, RS232/485 remote alarm access, onboard USB, and optional CO₂/LN₂ emergency backup kits.



20.8 Cu Ft (588 L) -40°C to -86°C Cascade System SECOP × 2 Compressors

7" LCD Touchscreen VIP + PURF Insulation 400 × 2" Boxes / 40,000 Vials 72-Hour Alarm Backup

High-capacity, high-throughput: Stores up to 400 two-inch boxes (≈40,000 × 2 mL vials) with 16 (5×5) racks for organized access.

Reliability at -86°C: Dual SECOP compressors with HC (R290 & R170) refrigerants, PTC sensor, and microprocessor control for stable ultra-low temps.

Lab-ready interface: 7" LCD touchscreen, USB export, and RS232/485 remote alarm access support QA, validation, and audits.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.



Resources & Downloads

User Manual

Why this UltraChill -86°C freezer?

• Precision control — microprocessor with 7" LCD touch screen and PTC sensor ensures fast recovery and tight stability.
• Built for uptime — dual SECOP compressors in a cascade system with VIP + PURF insulation for efficiency and durability.
• Large, organized storage — 588 L chamber with 16 (5×5) racks for 400 boxes and up to 40,000 × 2 mL vials.
• Comprehensive protections — high/low temp, power failure, abnormal voltage, door-ajar, and more plus 72-hour alarm backup.
• Service & compliance friendly — RS232/485 remote alarm access, USB export, 25 mm access port, and optional CO₂/LN₂ backup kits.

Talk to an expert

Get sizing help, validation docs, and integration tips for your cold chain.

Call 734-855-4890 Contact Sales

Technical Specifications

Model	UltraChill -86°C Upright Freezer (20.8 Cu Ft / 588 L)
Cooling type	Direct Cooling
Defrost	Manual
Temperature range	-40℃ ~ -86℃
Ambient temperature	10℃ ~ 32℃
Display	7" LCD touch screen
Access port QTY/Dia.	1 / 25 mm
USB Access	Y
Remote alarm Access	RS232 / 485
Outside material	Color sprayed steel
Inside material	SUS304
Castor	Universal
Refrigerant	HC (R290 & R170)
Temp. controller	Microprocessor
System	Cascade system
Sensor	PTC
Compressor brand/QTY	SECOP / 2
Capacity (L / cu.ft)	588 L / 20.76 cu.ft
Insulation	PURF + VIP
Inner door material/QTY	Foamed SUS304 / 2
Racks	16 (5×5)
Boxes (2 Inches)	400
Samples (2 mL)	40,000
High/low temperature (Alarm)	Y
Power failure (Alarm)	Y
Abnormal voltage (Alarm)	Y
Sensor error (Alarm)	Y
Door ajar (Alarm)	Y
Filter screen check (Alarm)	Y
Thermostat failure (Alarm)	Y
Low battery (Alarm)	Y
Condenser clean (Alarm)	Y
High ambient temperature (Alarm)	Y
Power failure backup (alarm)	72 h
Voltage frequency (V/Hz)	110V / 120V 60Hz
Power (W)	690 W
Current (A)	8.33 A
Power consumption	14.85 kWh/24h
Noise (dB)	53
Package size (W×D×H) (in)	38" × 45" × 86"
Exterior size (W×D×H) (in)	35" × 45.5" × 78.5"
Interior size (W×D×H) (in)	23.8" × 29" × 51.6"
Net Weight	640 lbs
Shipping Weight	780 lbs
Chart recorder	Optional
Data logger	Y
CO2 back up system	Optional
LN2 back up system	Optional
Gloves	Optional

Popular Industries & Use Cases

Pharmaceutical Biotechnology Clinical & Hospital Labs Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net TermsAcademic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is the storage capacity?

The chamber is 588 L (20.76 cu ft) and accommodates ~400 two-inch boxes (≈40,000 × 2 mL vials) using 16 (5×5) racks.

How is temperature controlled and monitored?

A microprocessor controller with 7" LCD touch screen manages set points from −40°C to −86°C. PTC sensing, USB export, and RS232/485 remote alarms support compliance.

Does it support CO₂ or LN₂ backup?

Yes, optional CO₂ and LN₂ systems provide emergency cooling during outages; alarm backup is rated to 72 hours.

What alarms are included?

High/low temperature, power failure, abnormal voltage, sensor error, door-ajar, filter screen check, thermostat failure, low battery, condenser clean, and high ambient temperature.

Important Shipping Notice!

DISCLAIMER:

All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.

Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.

Need Support?

We’ll get you answers fast.

Call 734-855-4890 Contact Us!

Introducing our UltraChill 20.8 Cu Ft -86°C Upright Ultra-Low Freezer -86°C Ultra Chill Series Upright Freezers, the ultimate solution for ultra-low temperature storage needs in scientific and medical applications. Designed with cutting-edge technology and meticulous attention to detail, these freezers provide unmatched reliability and performance to safeguard your valuable samples and specimens.

With a temperature range of -40°C ~ -86°C, our Ultra Chill Series freezers create an optimal environment for preserving biological materials, enzymes, vaccines, and other temperature-sensitive substances. Whether you're conducting research, storing biological samples, or preserving valuable pharmaceuticals, these freezers ensure the utmost integrity and longevity of your stored contents.

One of the standout features of our Ultra Chill Series is its superior temperature uniformity. Advanced cooling technology and precise airflow management guarantee consistent temperatures throughout the entire freezer, eliminating hot spots and minimizing temperature fluctuations. This level of uniformity ensures that each sample receives optimal storage conditions, maintaining their viability and quality over extended periods.

We understand the importance of precise temperature control, and our Ultra Chill Series freezers deliver just that. With user-friendly digital controls, you can easily set and adjust the desired temperature with accuracy and precision. The intuitive interface provides real-time temperature monitoring, enabling you to monitor and maintain the ideal storage conditions at all times.

Energy efficiency is a key consideration in today's world, and our Ultra Chill Series freezers are designed to minimize power consumption without compromising performance. Utilizing advanced insulation and efficient cooling systems, these freezers optimize energy usage, reducing operating costs while being environmentally friendly.

The -86°C Ultra Chill Series Upright Freezers offer a range of capacity options to suit your specific needs, allowing you to choose the size that accommodates your storage requirements. Each freezer is built with robust construction, ensuring durability and long-term reliability. Safety features such as door locks and alarms provide additional protection for your valuable samples, giving you peace of mind.

Our -86°C Ultra Chill Series Upright Freezers proudly hold the prestigious UL listing, symbolizing our commitment to quality and safety. The UL (Underwriters Laboratories) certification is a globally recognized mark that ensures our freezers meet stringent safety standards and have undergone rigorous testing.
