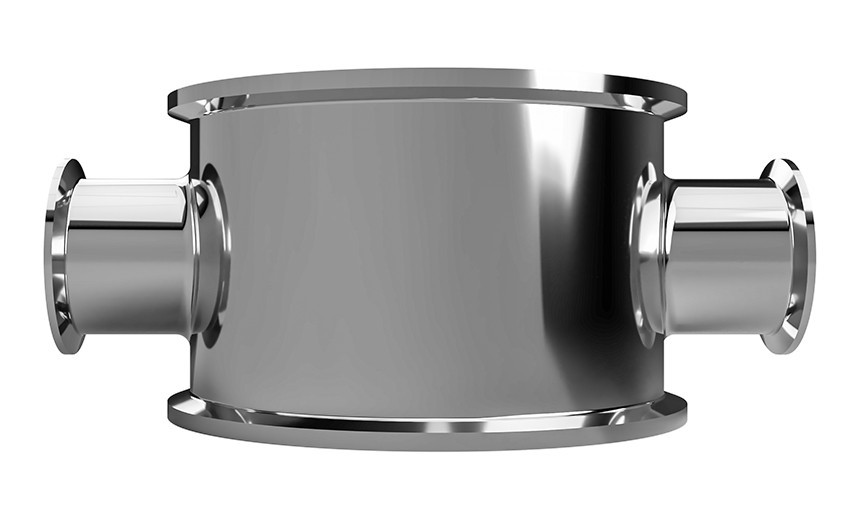

USA Lab Spool W/ 2 x 2" TC Ports | 90° or 180° Placement | Sight Glass Optional
The USA Lab Spool with 2 x 2" Tri-Clamp ports is a versatile stainless steel vessel accessory designed to provide additional connection points for compatible spools, tanks, columns, and processing equipment. Available in 6" and 8" sizes with multiple port configurations, it supports flexible equipment integration and sanitary connection requirements.

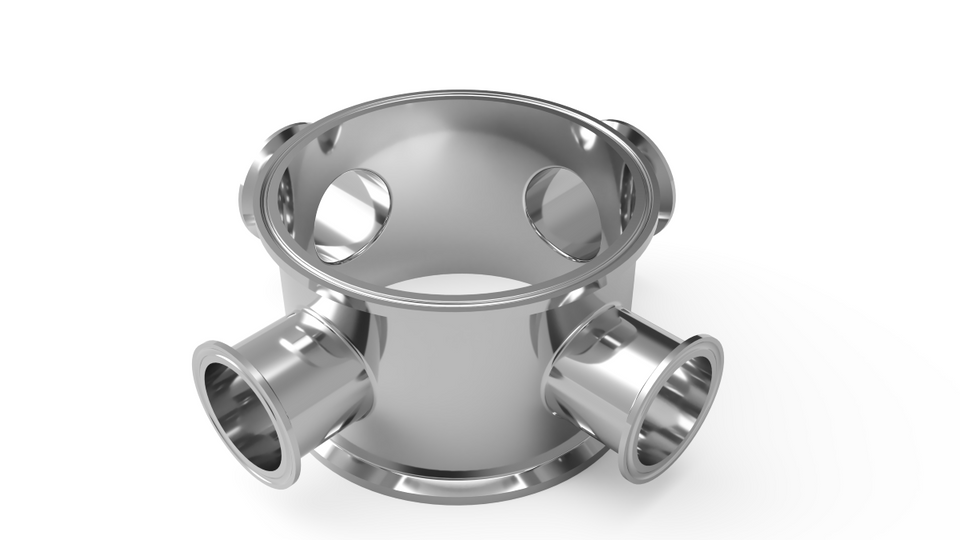

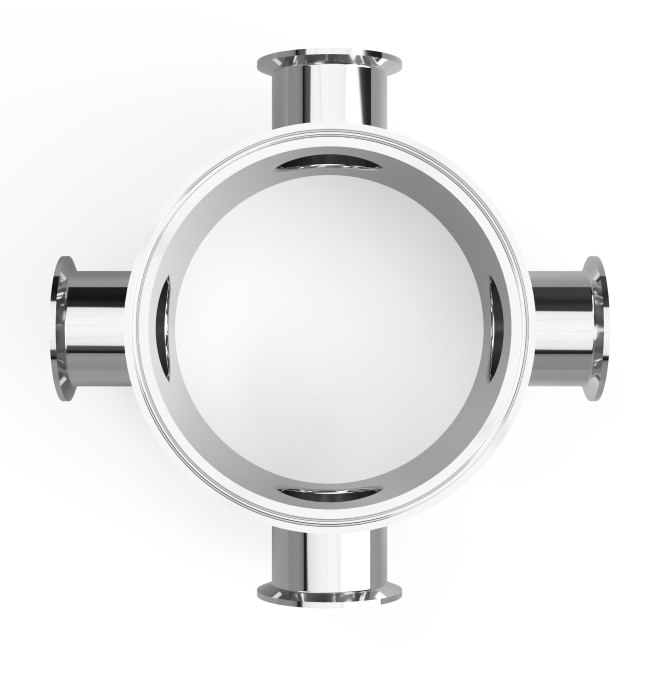

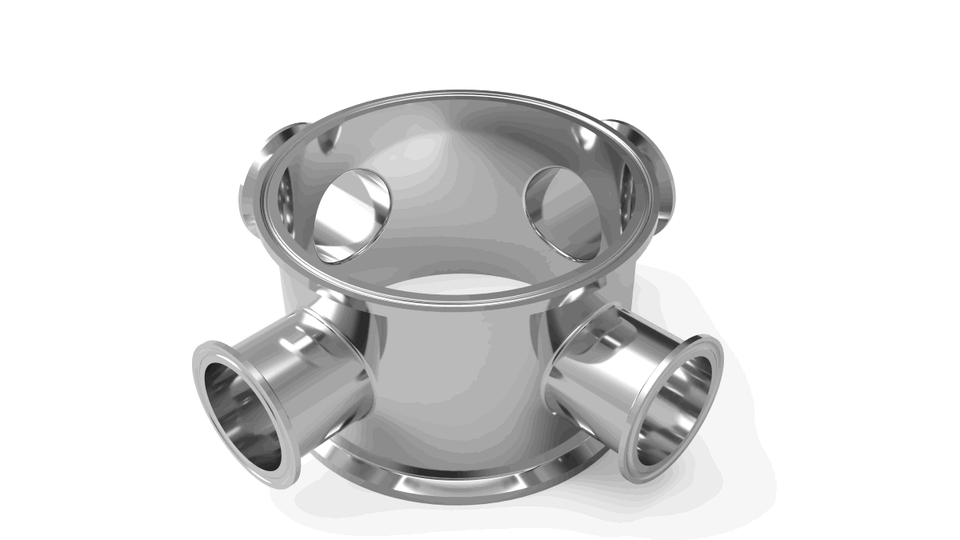

Choose between 90° or 180° port placement, with optional sight glass assemblies available for applications where visual monitoring is beneficial. Additional configurations include a 360° arrangement with four 2" Tri-Clamp ports, providing greater connection flexibility for more complex system layouts.
Built around standard 2" Tri-Clamp connections, the USA Lab Spool provides a reusable and adaptable solution for connecting process components while allowing operators to configure equipment according to their application. Its modular design makes it suitable for laboratory, processing, sanitary, and industrial equipment assemblies.
6" or 8" Size Options 2" Tri-Clamp Ports 90° or 180° Placement Optional Sight Glass Assembly

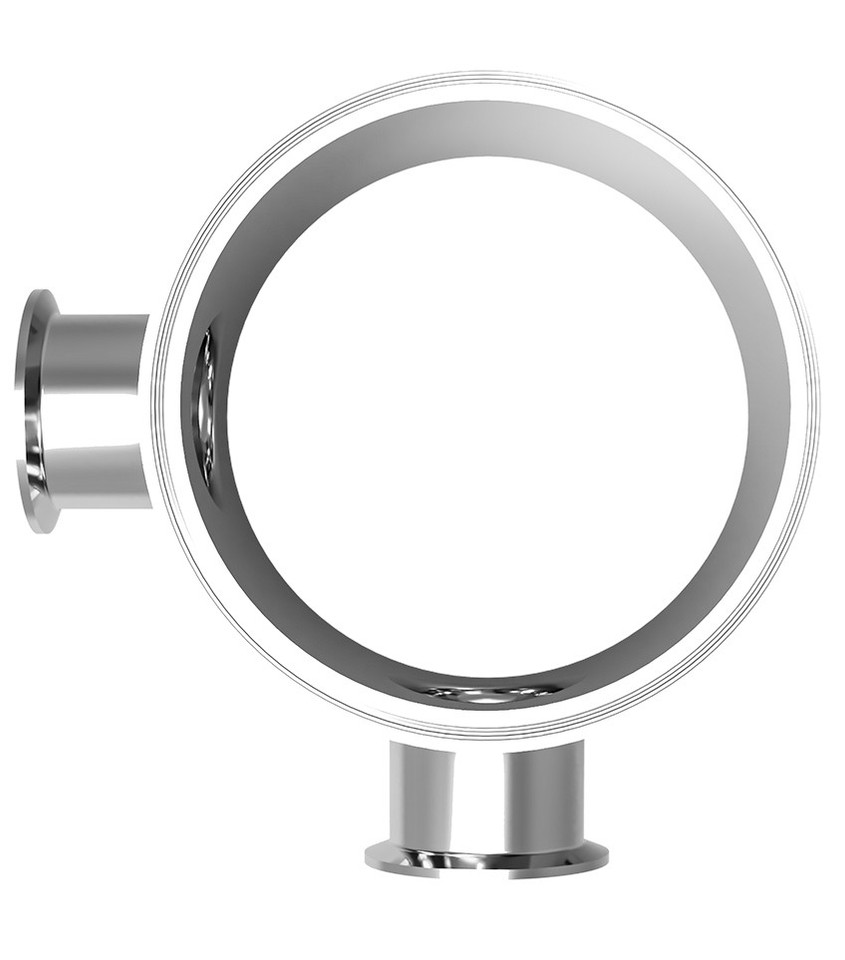

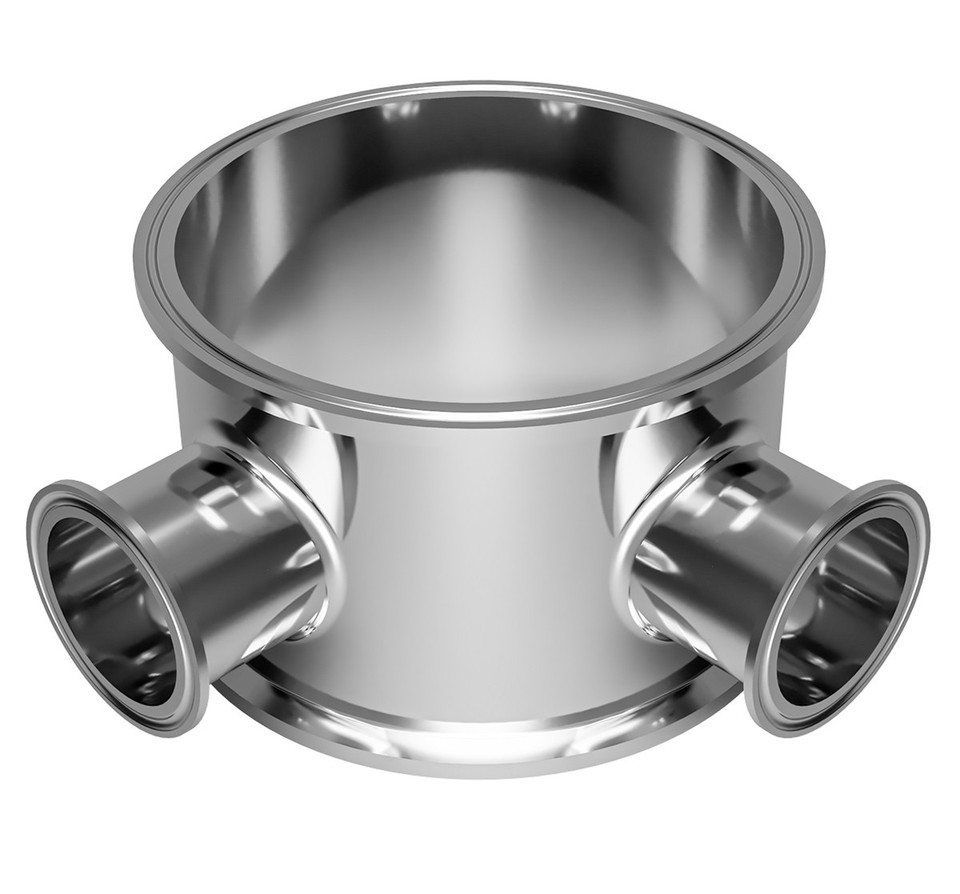

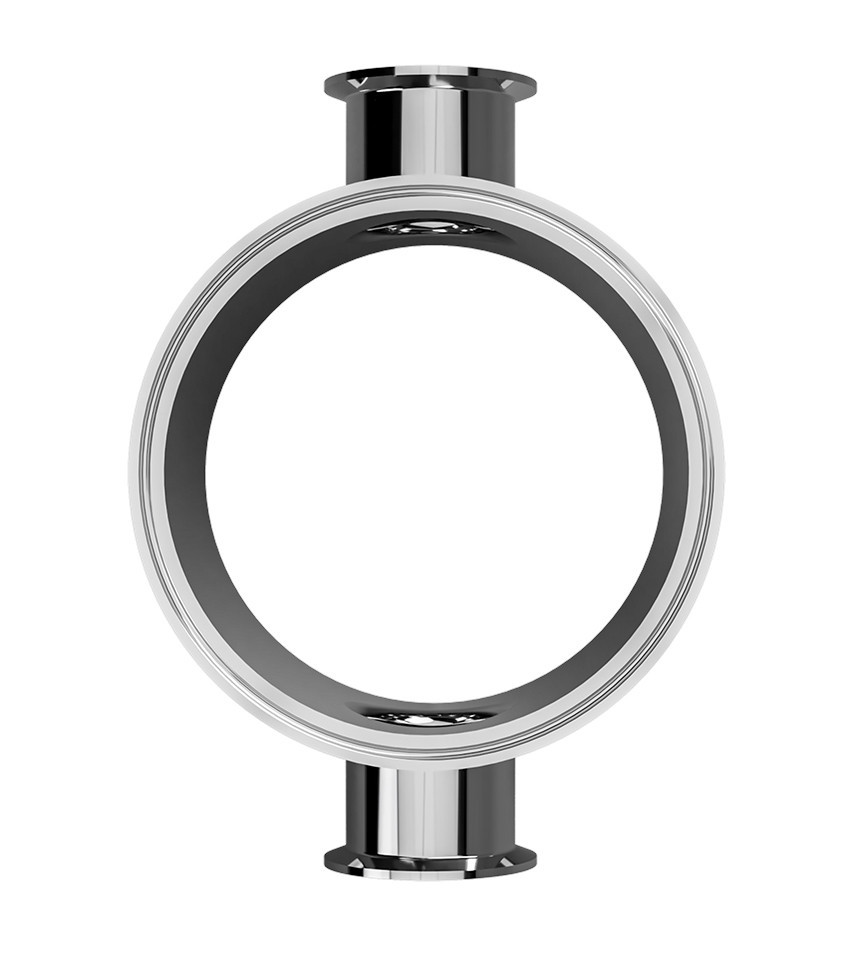

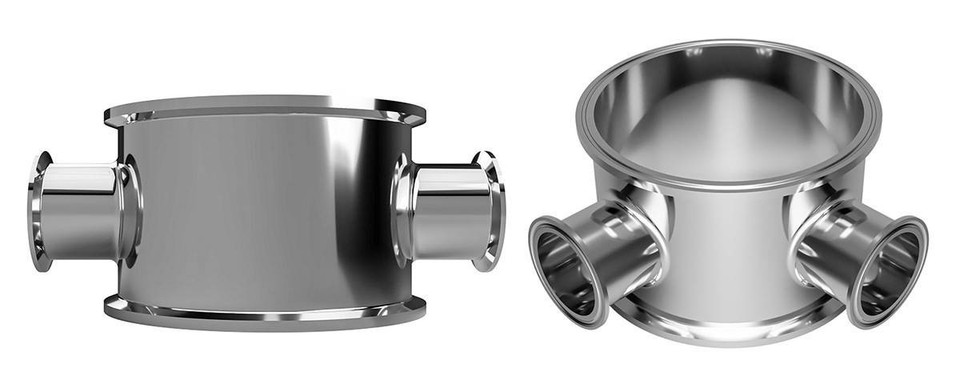

Flexible Port Placement: 90° or 180° configurations — allow connection points to be positioned for different equipment layouts.
Modular Connection: 2" Tri-Clamp ports — provide compatibility with standard sanitary components and fittings.

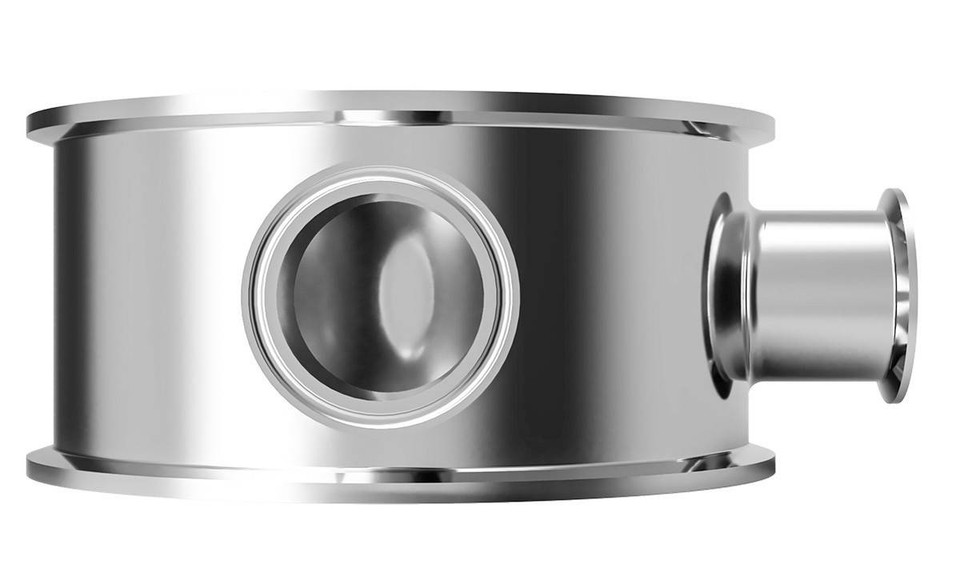

Optional Visual Monitoring: Sight glass configurations — provide an option for viewing material or process conditions inside the connected assembly.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this USA Lab Spool?
- Multiple configuration options — available in 6" or 8" sizes with several port arrangements to accommodate different system layouts.
- Standard 2" Tri-Clamp connections — provides a practical interface for compatible sanitary tubing, fittings, valves, and process components.
- 90° or 180° port placement — allows connection points to be oriented according to installation and equipment requirements.
- Optional sight glass assembly — provides visual access for applications requiring observation of material or process conditions.
- Reusable modular design — can be incorporated into compatible spools, tanks, columns, and other processing assemblies.
Talk to an expert
Get product guidance, configuration assistance, and compatibility information for your laboratory or processing system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Tri-Clamp Spool |
| Brand | USA Lab |
| Size Options | 6" or 8" |
| Port Connection | 2" Tri-Clamp (TC) |
| Primary Configuration | 2 x 2" TC Ports |
| Port Placement | 90° or 180° |
| Sight Glass Option | Available with Sight Glass Assembly |
| Multi-Port Configuration | 360° with 4 x 2" TC Ports |
| Sight Glass Multi-Port Configuration | 360° with 4 x 2" TC Ports and Sight Glass Assembly |
| Connection Standard | Tri-Clamp Sanitary Connection |
| Component Function | Equipment Connection and System Adaptation |
| System Integration | Compatible Spools, Tanks, Columns, and Process Assemblies |
| Design Type | Modular and Reusable |
| Connection Orientation | Configurable by Selected Variant |
| Available Port Quantity | 2 or 4, Depending on Configuration |
| Viewing Capability | Optional Sight Glass Assembly |
| 2" TC Tube OD | 2.52" |
| 2.52" | |
| Typical Application | Sanitary Process and Laboratory Equipment Integration |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help select the right configuration for your equipment and process requirements.
FAQ
What sizes are available for the USA Lab Spool?
The USA Lab Spool is available in 6" and 8" size options, allowing customers to select the configuration that best matches their compatible equipment and system layout.
What Tri-Clamp connections are used on the USA Lab Spool?
The USA Lab Spool uses 2" Tri-Clamp connections. Configurations are available with two 2" TC ports or four 2" TC ports depending on the selected variant.
What port placement options are available?
Available configurations include 90° or 180° placement for the two-port versions. A 360° configuration with four 2" Tri-Clamp ports is also available.
Is a sight glass available with the USA Lab Spool?
Yes. Sight glass configurations are available for selected variants, including 90°, 180°, and 360° configurations, providing an option for visual monitoring within compatible process assemblies.
