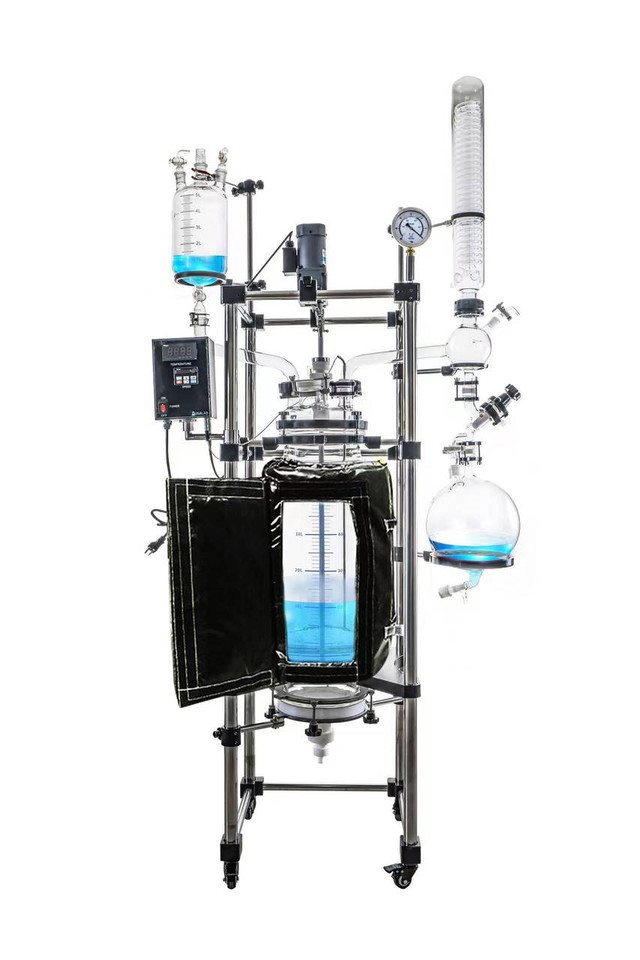

USA Lab Single Jacketed Glass Filter Reactor | JRF20, JRF50 & JRF100

The USA Lab Single Layer Glass Filter Reactor is a top-of-the-line solution for laboratories and process environments that need dependable temperature control, durable borosilicate construction, and efficient mixing in one integrated system. Each reactor features an outer jacket for liquid circulation, allowing operation across a wide thermal range from -80°C to 210°C.

Built with GG-17 borosilicate glass, PTFE seals, a rugged stainless steel support frame with casters, and digital step-less speed control, these reactors are designed for durability, chemical resistance, and smooth operation. The high-RPM stirring system, large condensing area, and integrated filtration design help improve process efficiency for demanding lab workflows.

Available in 20L, 50L, and 100L models, the USA Lab Single Jacketed Glass Filter Reactor delivers premium performance at an affordable price, backed by excellent customer service, U.S.-based parts and support, and a 1-year warranty.

The USA Lab Single Jacketed Glass Filter Reactor is ideal for chemical processing, botanical extraction, pilot-scale R&D, and advanced laboratory applications that require efficient agitation, vacuum capability, and broad temperature flexibility.

Notice: NOT Compatible With 208V Power Input (acceptable range: 230V–253V)

GG-17 Borosilicate Glass -80°C to 210°C 0-450 RPM Stirring ETL to UL and CSA Standards Digital Step-Less Control 20L, 50L & 100L Models

Temperature Range: Operates from -80°C to 210°C for flexible heating and cooling workflows.

Vacuum Capability: 0.0033 MPa / 25 Torr / 25000 Microns with max positive pressure of 3 psi.

Drive System: High-performance stirrer with digital step-less speed regulation up to 450 RPM.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Request Product Support Request a Quote Consulting Custom Request

Why this single jacketed glass filter reactor?

Premium glass construction — GG-17 borosilicate glass with 6.5mm ±0.5mm thickness offers strength and chemical resistance.
Broad thermal capability — outer jacket supports circulating fluid temperatures from -80°C to 210°C.
Built for process efficiency — large condensing area, integrated feed ports, and powerful mixing help streamline lab operations.
Durable mechanical design — PTFE seals, stainless steel support frame, and casters support long service life and easy movement.
Great overall value — premium performance, competitive pricing, and 1-year warranty with U.S.-based parts and support.

Talk to an expert

Get sizing help, compatibility guidance, and process support for the USA Lab Single Jacketed Glass Filter Reactor.

Call 734-855-4890

Technical Specifications

Specification	JRF20	JRF50	JRF100
Model	JRF20	JRF50	JRF100
Vessel Capacity	20L / 5.28 Gal	50L / 13.20 Gal	100L / 26.41 Gal
Material Flask Capacity	5L / 1.32 Gal	5L / 1.32 Gal	5L / 1.32 Gal
Receiving Flask Capacity	5L / 1.32 Gal	10L / 2.6 Gal	10L / 2.6 Gal
Fluid Jacket Capacity	9L / 2.37 Gal	16L / 4.22 Gal	25L / 6.60 Gal
Glass Material	GG-17 Borosilicate Glass \| Thickness: 6.5mm ±0.5mm	GG-17 Borosilicate Glass \| Thickness: 6.5mm ±0.5mm	GG-17 Borosilicate Glass \| Thickness: 6.5mm ±0.5mm
Rotary Speed	0-450 RPM	0-450 RPM	0-450 RPM
Glass Temperature Range	-80°C to 210°C / -112°F to 410°F	-80°C to 210°C / -112°F to 410°F	-80°C to 210°C / -112°F to 410°F
ETL Stirrer Wattage	120W	120W	200W
Lowest Vacuum Level	0.0033 MPa / 25 Torr / 25000 Microns \| Max Positive Pressure: 3 psi	0.0033 MPa / 25 Torr / 25000 Microns \| Max Positive Pressure: 3 psi	0.0033 MPa / 25 Torr / 25000 Microns \| Max Positive Pressure: 3 psi
Speed Regulation	Digital Step-Less	Digital Step-Less	Digital Step-Less
Condenser and Feed Valve Barbs	10MM - 3/8"	10MM - 3/8"	10MM - 3/8"
Bottom Drain Port	35MM - 1 3/8"	35MM - 1 3/8"	35MM - 1 3/8"
Receiving Flask Barb	16MM - 5/8"	16MM - 5/8"	16MM - 5/8"
Jacket Pressure	Maximum 29 psi - Nominal 25 psi	Maximum 29 psi - Nominal 25 psi	Maximum 29 psi - Nominal 25 psi
Fluid Connection	16MM - 5/8" barb or 1/2" NPT	16MM - 5/8" barb or 1/2" NPT	5/8" Barb or 3/4" MNPT
Certification	ETL to UL and CSA Standards	ETL to UL and CSA Standards	ETL to UL and CSA Standards
External Dimensions LxWxH	39 x 20.4 x 79"	41 x 23 x 90"	48 x 34 x 102"
Weight	176 lbs	205 lbs	275 lbs

Packing List

Packing List Item	Quantity
Vessel with Rack (Pre-assembled)	1
Main Condenser	1
Material Flask	1
Receiving Flask	1
Reflux Flask	1
C Clamp Valve	1
Feed Ports	6 Sets
Stopper	1
Clamp for Material Flask	1
Strap for Condenser	1 Set
Sealing Screw / Flange	3 Sets
Fluid Line Sealing Clamp / Flange	2 Sets
Control Box	1
Vacuum Gauge	1
Support Rings	2
Stirring Motor w/ Paddle	1
Temperature Probe	1
Liquid 5/8" Connections	2
Metal Clamp	2
Insulation Wrap	1
Dow Corning Vacuum Grease	1
Vacuum Hose	10 ft.

Lid Specifications

Model	20L	50L	100L
Left Port	50mm Ball Joint	50mm Ball Joint	50mm Ball Joint
Right Port	50mm Ball Joint	50mm Ball Joint	50mm Ball Joint
Rear Port	34mm Joint	34mm Joint	34mm Joint
Stirring Port	50mm Flange Port	50mm Flange Port	60mm Flange Port
Front Port 1	80mm with PTFE Lid	80mm with PTFE Lid	80mm with PTFE Lid
Front Port 2	50mm Flange Port	50mm Flange Port	50mm Flange Port
Feed Ports	6 Sets

Popular Industries & Use Cases

Botanical Extraction Chemical Sciences Academic & Research Process Development

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right USA Lab Single Jacketed Glass Filter Reactor for your application.

Call 734-855-4890 Email Sales/Support

FAQ

What is the USA Lab Single Jacketed Glass Filter Reactor used for?

The USA Lab Single Jacketed Glass Filter Reactor is commonly used for chemical processing, filtration, extraction, mixing, and temperature-controlled laboratory workflows. It combines jacketed thermal control, agitation, and glass reactor functionality in one system.

What sizes are available for the USA Lab Single Jacketed Glass Filter Reactor?

The USA Lab Single Jacketed Glass Filter Reactor is available in three models: JRF20 with a 20L vessel, JRF50 with a 50L vessel, and JRF100 with a 100L vessel. This makes it easy to choose the right size for bench-scale, pilot-scale, or larger process work.

What materials are used in the USA Lab Single Jacketed Glass Filter Reactor?

The USA Lab Single Jacketed Glass Filter Reactor uses GG-17 borosilicate glass with 6.5mm ±0.5mm thickness, PTFE seals for chemical resistance, and a durable stainless steel support frame with casters for strength and mobility.

What are the operating temperature and speed ranges?

The USA Lab Single Jacketed Glass Filter Reactor supports glass temperature operation from -80°C to 210°C (-112°F to 410°F) and offers digital step-less stirring speed control from 0 to 450 RPM for flexible process control.
