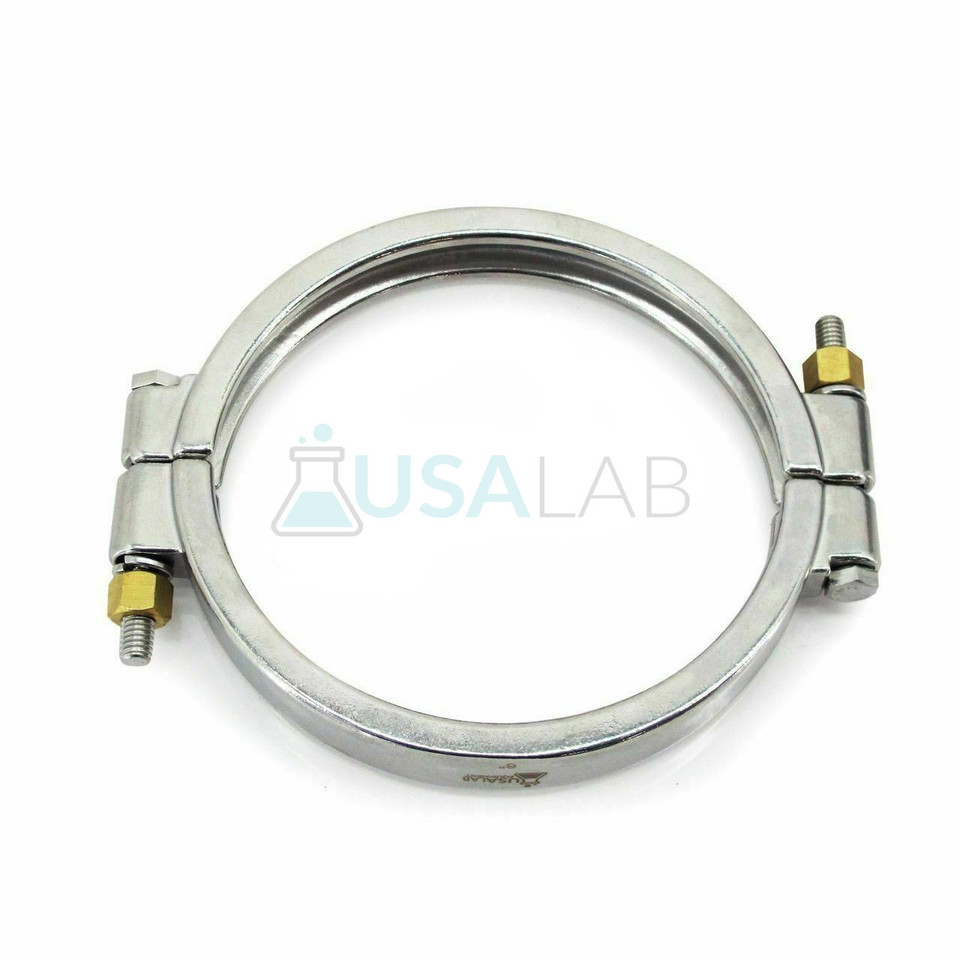

USA Lab Premium Heavy Duty High Pressure Tri-Clamp – SS304, 1.5"–12" | USA Lab
The USA Lab Premium Heavy Duty High Pressure Tri-Clamp is engineered for demanding sanitary process assemblies that require increased structural strength, reliable sealing force, and high-pressure performance. Constructed from 304 stainless steel with a thicker, reinforced clamp body, it provides enhanced rigidity and durability compared with standard high-pressure Tri-Clamps.
Available in 1.5" through 12" sizes, these heavy-duty Tri-Clamps are designed to provide consistent compression between compatible sanitary ferrules and gaskets. A recommended installation torque of 12–14 Nm supports repeatable, secure sealing across high-cycle and high-stress process applications.
Pressure ratings are size- and temperature-dependent, with verified ratings provided at both 70°F and 250°F. The USA Lab Premium Heavy Duty High Pressure Tri-Clamp is well suited for food and beverage, pharmaceutical, biotech, brewing, distilling, and other sanitary processing environments.
SS304 Construction High-Pressure Rated 1.5"–12" Sizes 12–14 Nm Torque Heavy-Duty Design
Reinforced SS304 Body: Thicker construction provides greater rigidity and durability for demanding sanitary process assemblies.
High Clamp Force: Recommended torque of 12–14 Nm supports consistent, repeatable sealing between compatible ferrules and gaskets.
Size-Specific Pressure Ratings: Available from 1.5" to 12" with pressure ratings specified for both 70°F and 250°F operation.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why choose the USA Lab Premium Heavy Duty High Pressure Tri-Clamp?
- Premium 304 stainless steel: Provides corrosion-resistant construction suitable for sanitary process environments and repeated cleaning cycles.
- Reinforced heavy-duty design: Thicker clamp construction increases rigidity and structural durability compared with standard high-pressure Tri-Clamps.
- High-pressure performance: Size-specific pressure ratings support applications ranging from high-pressure process lines to larger sanitary assemblies.
- Repeatable sealing: The 12–14 Nm recommended torque window helps establish consistent clamp force when properly paired with compatible ferrules and gaskets.
- Broad size selection: Available in 1.5", 2", 3", 4", 6", 8", 10", and 12" configurations.
Talk to an expert
Get help with Tri-Clamp sizing, pressure ratings, torque guidance, ferrule selection, and gasket compatibility for your process assembly.
Technical Specifications
| Specification | Details |
|---|---|
| Construction | 304 Stainless Steel (SS304) |
| Design | Premium Heavy Duty Reinforced Clamp Body |
| Connection Type | Sanitary Tri-Clamp |
| Available Sizes | 1.5", 2", 3", 4", 6", 8", 10", and 12" |
| Torque Window | 12–14 Nm / 8.85–10 ft-lbf / 106–124 in-lbf |
| 1.5" Pressure Rating | 1,500 psi @ 70°F / 1,200 psi @ 250°F |
| 2" Pressure Rating | 1,000 psi @ 70°F / 800 psi @ 250°F |
| 3" Pressure Rating | 1,000 psi @ 70°F / 800 psi @ 250°F |
| 4" Pressure Rating | 800 psi @ 70°F / 600 psi @ 250°F |
| 6" Pressure Rating | 300 psi @ 70°F / 200 psi @ 250°F |
| 8" Pressure Rating | 250 psi @ 70°F / 150 psi @ 250°F |
| 10" Pressure Rating | 200 psi @ 70°F / 125 psi @ 250°F |
| 12" Pressure Rating | 150 psi @ 70°F / 100 psi @ 250°F |
| Operating Temperature Reference | Pressure ratings verified at 70°F and 250°F |
| Clamp Force | Consistent compression when installed at recommended 12–14 Nm torque |
| Material Properties | Corrosion-resistant and hygienic stainless steel construction |
| Process Compatibility | Sanitary process assemblies, high-cycle and high-stress applications |
| Compatible Components | Compatible sanitary ferrules and gaskets |
| Typical Applications | Food & Beverage, Pharmaceutical, Biotech, Brewing & Distilling |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right clamp, ferrule, and gasket combination for your process.
FAQ
What pressure ratings are available for the USA Lab Premium Heavy Duty High Pressure Tri-Clamp?
Pressure ratings vary by Tri-Clamp size and temperature. The 1.5" clamp is rated up to 1,500 psi at 70°F and 1,200 psi at 250°F, while the 12" clamp is rated up to 150 psi at 70°F and 100 psi at 250°F. Refer to the Technical Specifications table for the complete size-specific pressure chart.
What sizes are available for the USA Lab Premium Heavy Duty High Pressure Tri-Clamp?
The USA Lab Premium Heavy Duty High Pressure Tri-Clamp is available in 1.5", 2", 3", 4", 6", 8", 10", and 12" sizes to support a broad range of sanitary process assemblies.
What torque should be used when installing these heavy-duty Tri-Clamps?
The recommended torque window is 12–14 Nm, equivalent to approximately 8.85–10 ft-lbf or 106–124 in-lbf. Always ensure the ferrules and gasket are properly aligned and clean before tightening.
What components are compatible with the USA Lab Premium Heavy Duty High Pressure Tri-Clamp?
These clamps are designed for use with compatible sanitary Tri-Clamp ferrules and gaskets. Gasket material should be selected according to the process media, operating temperature, pressure, and applicable sanitary or regulatory requirements.
