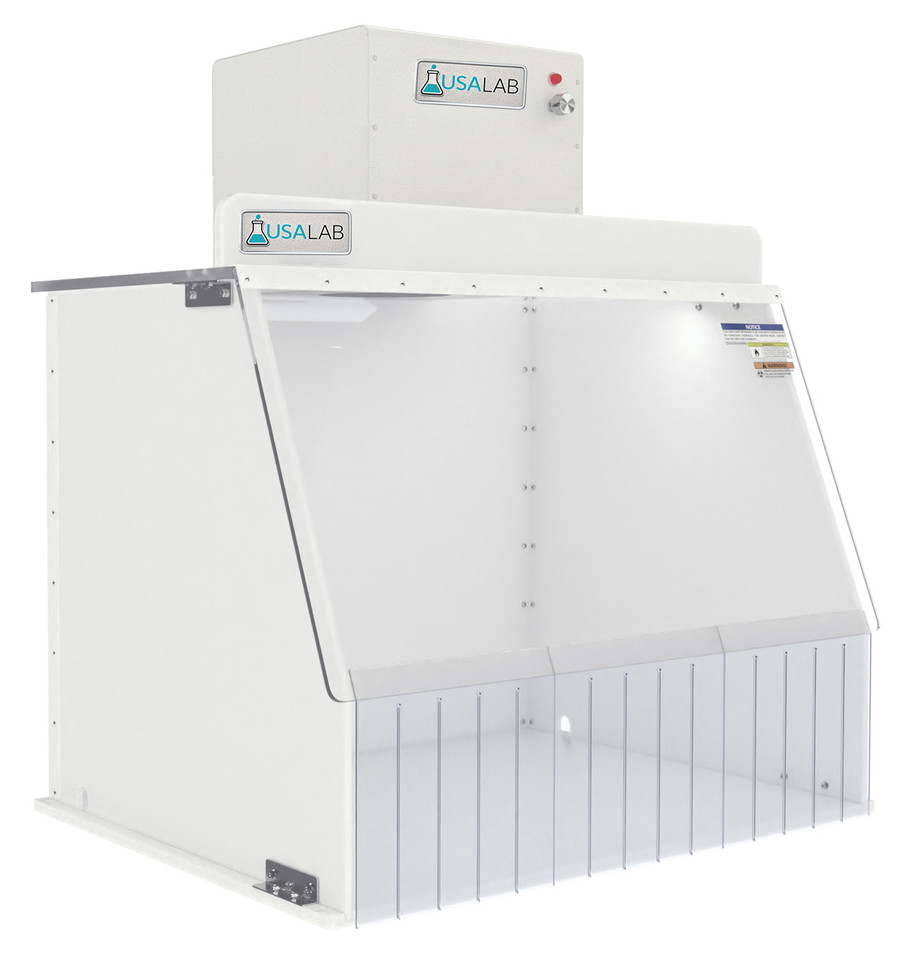

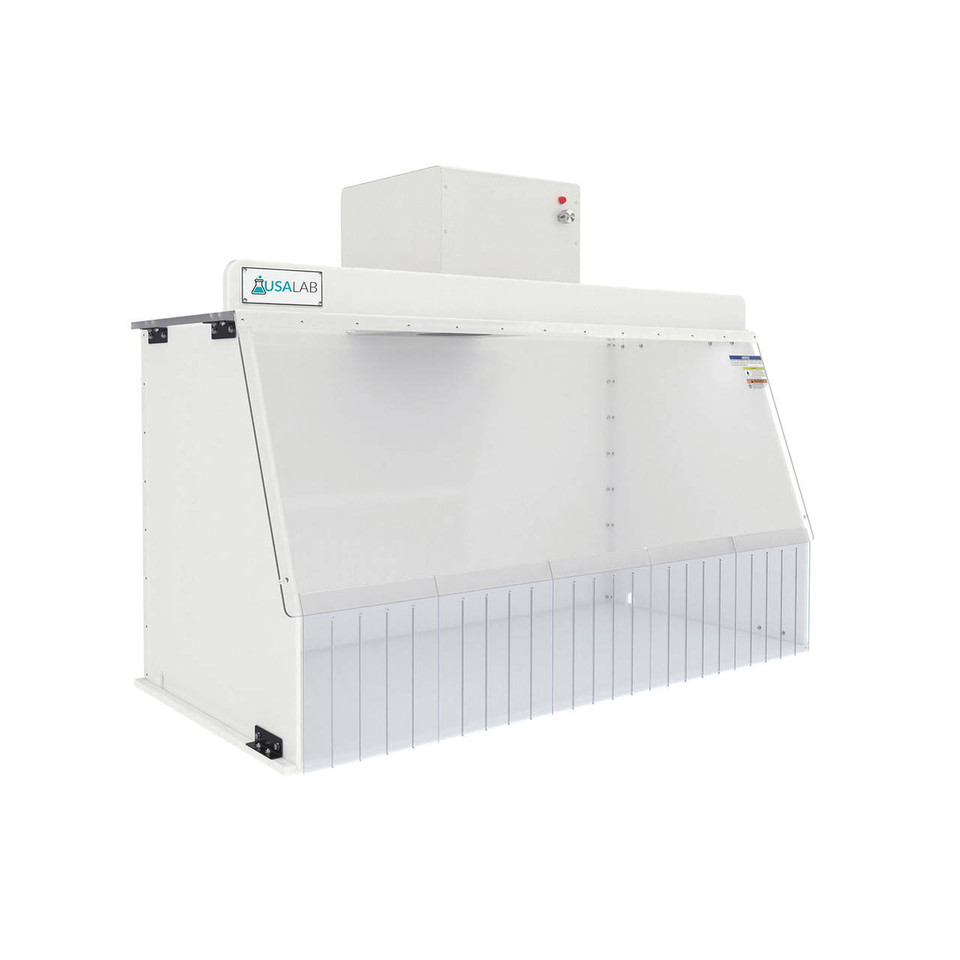

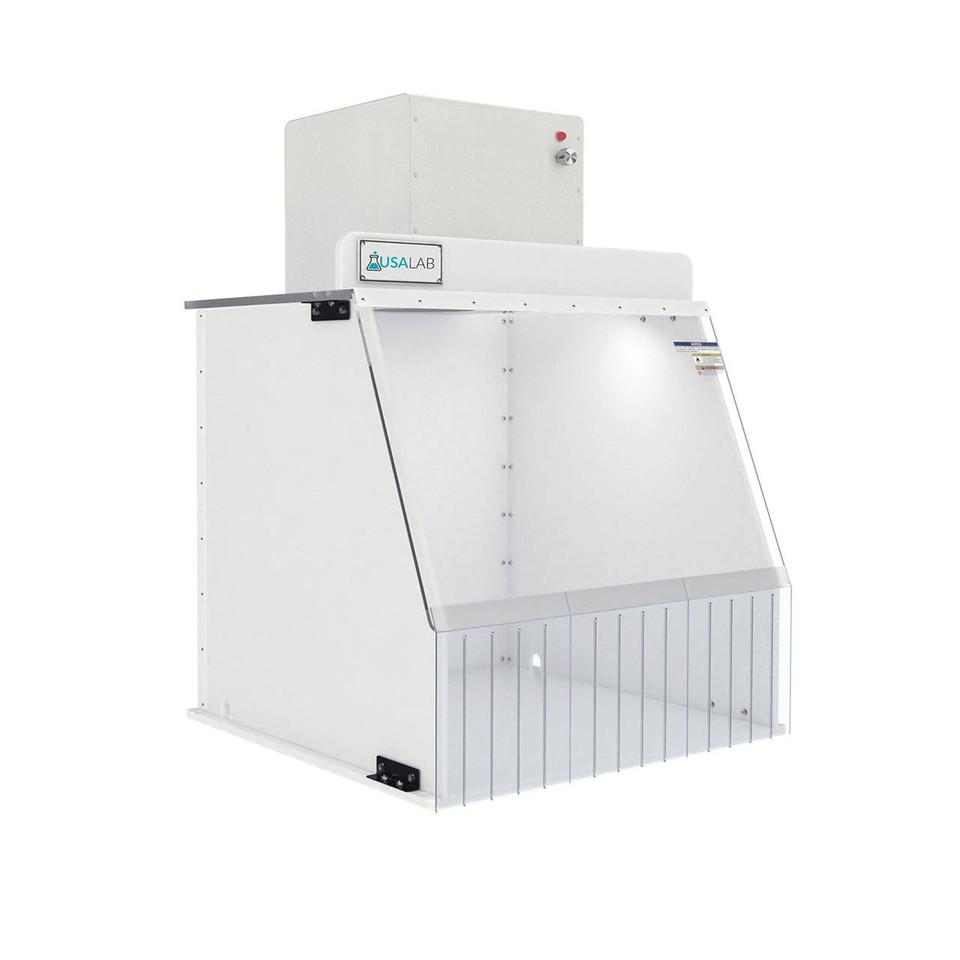

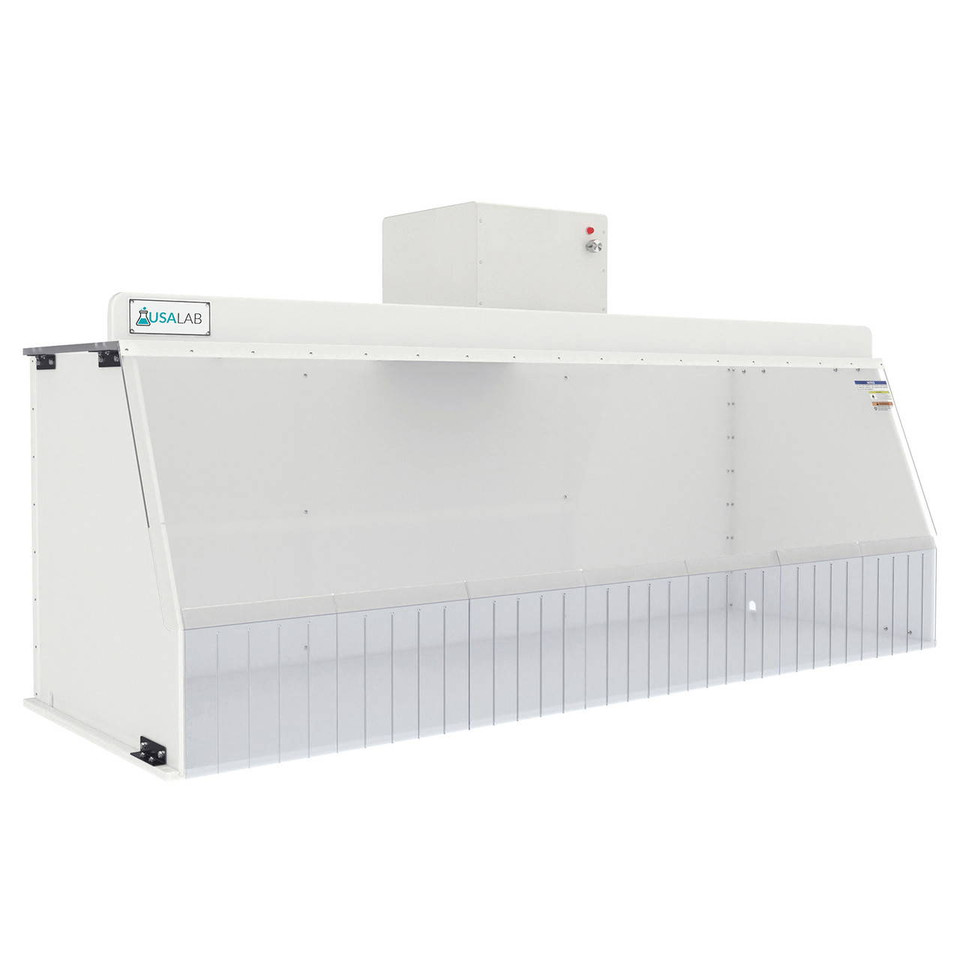

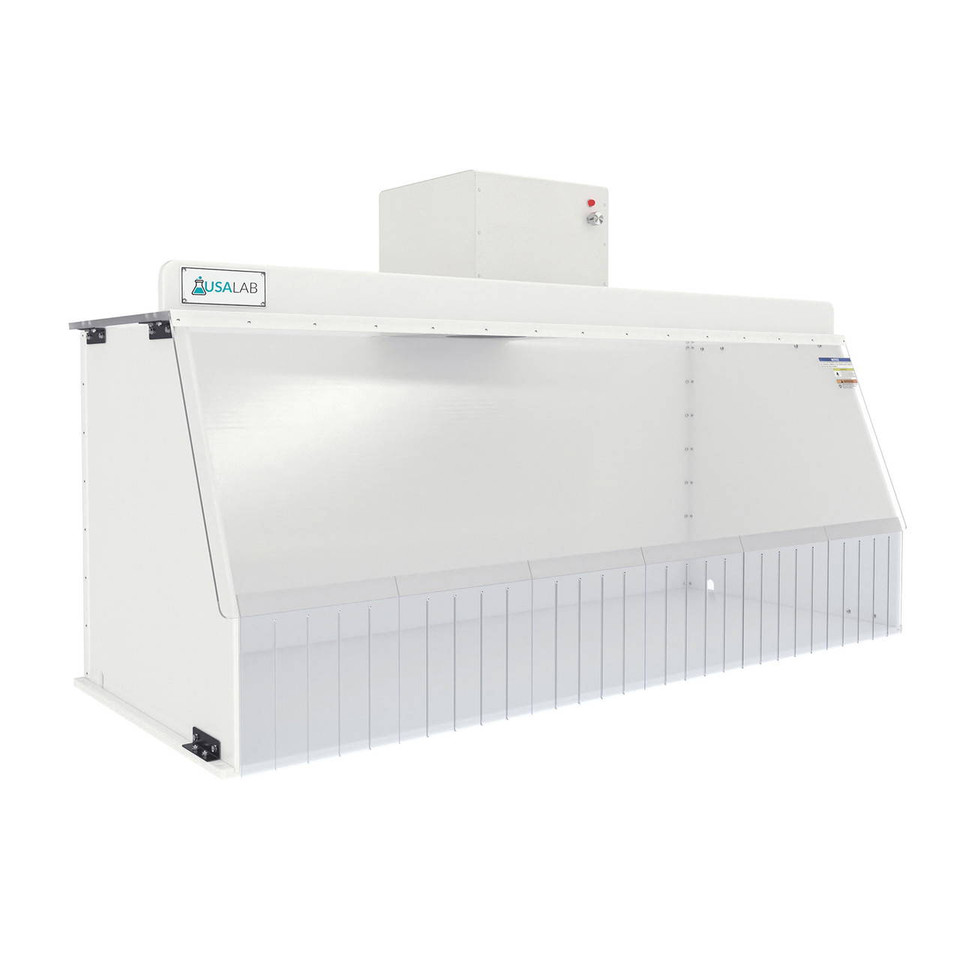

USA Lab Portable Clean Room (PCR) | ISO Class 5 Laminar Flow Hood

The USA Lab Portable Clean Room (PCR) is a positive-pressure system that delivers exceptionally clean laminar airflow inside the hood for controlled, low-particulate work. Made in the USA, PCR units provide a reliable, low-maintenance clean environment for medical, laboratory, and field applications without the cost and complexity of ductwork or makeup air.

This portable cleanroom platform uses a dual-stage filtration process (single-stage for Generation II) with a MERV 8 pre-filter and a HEPA filter rated up to 99.97% efficiency at 0.3 micrometers. For higher efficiency needs, an ULPA option is available rated up to 99.9995% at 0.12 micrometers.

Generation I

The original Portable Cleanroom – Generation I offers a simple ON/OFF operation and provides dependable and effective protection for your application. This economical unit helps your facility implement a cleanroom environment without a large investment.

Generation II

This upgraded version, Generation II, offers improved functions, design, and fan system. The front-facing variable speed controller allows the operator to easily adjust the fan speeds to suit their application. The running indicator light informs the user that the system is running. The improved design and fan system have increased the airflow and enhanced the system’s efficiency. Also, this new design allows operators to PAO test to check the filter for leaks and approve the device for certifications such as USP 797.

What is the Classification of a Portable Cleanroom?

Cleanroom classifications are defined simply by how clean the air in the room is. Federal Standard (FS) 209 (A - E) classifies a cleanroom as dependent on the number of particles in a working environment's air. More accurately, 'Cleanroom classification standards FS 209E and ISO 14644-1' require a particle count measurement and calculation in order to fully classify the "cleanliness" of an environment.

3-5 Day Lead Time

Not intended for sterile compounding applications or chemotherapy.
Select HEPA/ULPA and media options based on your application.

Up to ISO Class 5 Positive Pressure HEPA / ULPA Options Portable & Modular

Cleanliness: Provides up to an ISO Class 5 portable cleanroom environment.

Filtration: MERV 8 pre-filter + HEPA (99.97% @ 0.3µm) with ULPA option (99.9995% @ 0.12µm).

Efficiency: No ductwork or makeup air required—portable design reduces install and operating costs.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Chemical Analysis Form

Why this USA Lab Portable Clean Room?

Portable ISO control — the USA Lab Portable Clean Room supports up to ISO Class 5 for cleaner, more consistent workflows.
Laminar airflow design — positive pressure helps keep outside contaminants from entering the working zone.
Flexible filtration — choose HEPA/ULPA and application-specific media (see item 31516) to match fumes/particulate requirements.
Low cost to deploy — PCRs do not require makeup air or expensive ductwork, reducing installation complexity.
Built for mobility — free-standing modular units are lightweight and ideal for field testing or frequent travel.

Talk to an expert

Get sizing help, filter selection guidance, and configuration support.

Call 734-855-4890

Technical Specifications

Gen I	SS-212-PCR	SS-218-PCR	SS-324-PCR	SS-330-PCR	SS-340-PCR
Outer Dimensions	10.5” x 12.5” x 15”	18.5” x 20” x 19”	24” x 26” x 25”	24” x 32” x 25”	24” x 42” x 25”
Interior Dimensions	10” x 12” x 10”	18” x 18” x 18”	23.5” x 24” x 24”	23.5” x 30” x 24”	23.5” x 40” x 24”
Access Area	10.2"	8"	8"	8"	8"
Hood Material *PC - Polycarbonate	Acrylic	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC
Blower Dimensions (Plenum only)	10.5” x 8” x 8.5”	10.5” x 8” x 8.5”	15.5” x 13” x 14.5”	15.5” x 13” x 14.5”	15.5” x 13” x 14.5”
Blower Material	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces
Weight (Approx)	20 lbs	35 lbs	95 lbs	100 lbs	115 lbs
ISO Classification	Up to ISO Class 5	Up to ISO Class 5	Up to ISO Class 5	Up to ISO Class 5	Up to ISO Class 5
Air Volume (Approx)	Up to 100 CFM	Up to 65 CFM	Up to 350 CFM	Up to 350 CFM	Up to 350 CFM
Electrical	115/1/60, 0.3 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 0.3 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 2 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 2 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 2 amps; 8’ grounded power cord with NEMA 5-15P plug
Sound Level	55 dba	55 dba	55 dba	55 dba	55 dba
Pre-Filter	MERV 8 Pre-Filter	MERV 8 Pre-Filter	MERV 8 Pre-Filter	MERV 8 Pre-Filter	MERV 8 Pre-Filter
Main Filter Options	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)
Warranty	Limited three-year warranty from date of shipment on defects due to materials or	Limited three-year warranty from date of shipment on defects due to materials or	Limited three-year warranty from date of shipment on defects due to materials or	Limited three-year warranty from date of shipment on defects due to materials or	Limited three-year warranty from date of shipment on defects due to materials or
Clear Anti-Static Vinyl Curtains	Included	Included	Included	Included	Included
Hour Counter	Optional	Optional	Optional	Optional	Optional
LED Light	N/A	Included	Included	Included	Included
UVC Light	N/A	N/A	Optional	Optional	Optional
Magnehelic Gage	N/A	N/A	Optional	Optional	Optional
Spill Tray	Optional	Optional	Optional	Optional	Optional
Variable Speed Controller	Optional	Optional	Included	Included	Included
Velometer	Optional	Optional	Included	Included	Included

Gen II	SS-324-PCR2	SS-330-PCR2	SS-340-PCR2	SS-350-PCR2	SS-360-PCR2	SS-370-PCR2
Outer Dimensions	24” x 26” x 25”	24” x 32” x 25”	24” x 42” x 25”	24” x 52” x 25”	24” x 62” x 25”	24” x 72” x 25”
Interior Dimensions	23.5” x 24” x 24”	23.5” x 30” x 24”	23.5” x 40” x 24”	23.5” x 50” x 24”	23.5” x 60” x 24”	23.5” x 70” x 24”
Access Area	8"	8"	8"	8"	8"	8"
Hood Material *PC - Polycarbonate	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC	Sides: 0.25” white acrylic Base: 0.5” white HDPE Top: 0.5” clear PC Front Window: 0.25” clear PC
Blower Dimensions (Plenum only)	13” x 13” x 11”	13” x 13” x 11”	15.5” x 13” x 14.5”	13” x 13” x 11”	13” x 13” x 11”	13” x 13” x 11”
Blower Material	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces	16 ga. carbon steel w/polyurethane epoxy coating on all surfaces
Weight (Approx)	75 lbs	80 lbs	95 lbs	105 lbs	120 lbs	135 lbs
ISO Classification	Up to ISO Class 5	Up to ISO Class 5	Up to ISO Class 5	Up to ISO Class 5	Up to ISO Class 5	Up to ISO Class 5
Air Volume (Approx)	HEPA: 50 - 400 CFM ULPA: 50 - 300 CFM	HEPA: 50 - 400 CFM ULPA: 50 - 300 CFM	HEPA: 50 - 400 CFM ULPA: 50 - 300 CFM	HEPA: 50 - 400 CFM ULPA: 50 - 300 CFM	HEPA: 50 - 400 CFM ULPA: 50 - 300 CFM	HEPA: 50 - 400 CFM ULPA: 50 - 300 CFM
Electrical	115/1/60, 1.65 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 1.65 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 1.65 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 1.65 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 1.65 amps; 8’ grounded power cord with NEMA 5-15P plug	115/1/60, 1.65 amps; 8’ grounded power cord with NEMA 5-15P plug
Sound Level	50 - 65 dba	50 - 65 dba	50 - 65 dba	50 - 65 dba	50 - 65 dba	50 - 65 dba
Pre-Filter	N/A	N/A	N/A	N/A	N/A	N/A
Main Filter Options	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)	HEPA & ULPA (See item 31516 for full line of available filters)
Warranty	Limited one-year warranty from date of shipment on defects due to materials or	Limited one-year warranty from date of shipment on defects due to materials or	Limited one-year warranty from date of shipment on defects due to materials or	Limited one-year warranty from date of shipment on defects due to materials or	Limited one-year warranty from date of shipment on defects due to materials or	Limited one-year warranty from date of shipment on defects due to materials or
Clear Anti-Static Vinyl Curtains	Included	Included	Included	Included	Included	Included
Hour Counter	Optional	Optional	Optional	Optional	Optional	Optional
LED Light	Included	Included	Included	Included	Included	Included
UVC Light	Optional	Optional	Optional	N/A	N/A	N/A
Magnehelic Gage	Optional	Optional	Optional	Optional	Optional	Optional
Spill Tray	Optional	Optional	Optional	Optional	Optional	Optional
Variable Speed Controller	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)
Velometer	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)	Included (Front-facing)

What is the Classification of a Portable Cleanroom?

ISO 14644-1 Cleanroom Standards

Class	maximum particles/m³						FED STD 209E equivalent
Class	>=0.1 µm	>=0.2 µm	>=0.3 µm	>=0.5 µm	>=1 µm	>=5 µm	FED STD 209E equivalent
ISO 1	10	2
ISO 2	100	24	10	4
ISO 3	1,000	237	102	35	8		Class 1
ISO 4	10,000	2,370	1,020	352	83		Class 10
ISO 5	100,000	23,700	10,200	3,520	832	29	Class 100
ISO 6	1,000,000	237,000	102,000	35,200	8,320	293	Class 1,000
ISO 7				352,000	83,200	2,930	Class 10,000
ISO 8				3,520,000	832,000	29,300	Class 100,000
ISO 9				35,200,000	8,320,000	293,000	Room Air

BS 5295 Cleanroom Standards

	maximum particles/m³
Class	>=0.5 µm	>=1 µm	>=5 µm	>=10 µm	>=25 µm
Class 1	3,000		0	0	0
Class 2	300,000		2,000	30
Class 3		1,000,000	20,000	4,000	300
Class 4			20,000	40,000	4,000

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored tanks, skids, and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right system for your throughput.

Call 734-855-4890 Email Sales/Support

FAQ

What is the USA Lab Portable Clean Room (PCR)?

The USA Lab Portable Clean Room (PCR) is a positive-pressure laminar airflow hood that helps create a controlled, low-particulate working area up to ISO Class 5. The USA Lab Portable Clean Room is designed for portable, modular deployment without ductwork or makeup air.

What filtration does the USA Lab Portable Clean Room use?

The USA Lab Portable Clean Room uses a dual-stage filtration process (single-stage for Generation II/PCR2) with a MERV 8 pre-filter and a HEPA filter rated up to 99.97% at 0.3 micrometers. For higher efficiency needs, the USA Lab Portable Clean Room supports an ULPA option rated up to 99.9995% at 0.12 micrometers (see item 31516 for compatible PCR filters).

What’s the difference between Generation I and Generation II (PCR2) Portable Clean Rooms?

The USA Lab Portable Clean Room Generation I is an economical design with simple ON/OFF operation and optional configurations such as IV Hood or UVC Hood. The USA Lab Portable Clean Room Generation II (PCR2) is an upgraded platform with improved design and fan system, a front-facing variable speed controller, a running indicator light, and support for PAO testing to help verify filter integrity for certifications such as USP 797.

Is the USA Lab Portable Clean Room intended for sterile compounding or chemotherapy?

No. The USA Lab Portable Clean Room is not intended for sterile compounding applications or chemotherapy. If your process requires sterile compounding compliance, use equipment specifically designed and certified for sterile environments.
