TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.73" |
|
12" |
12.57" |
11.81" |

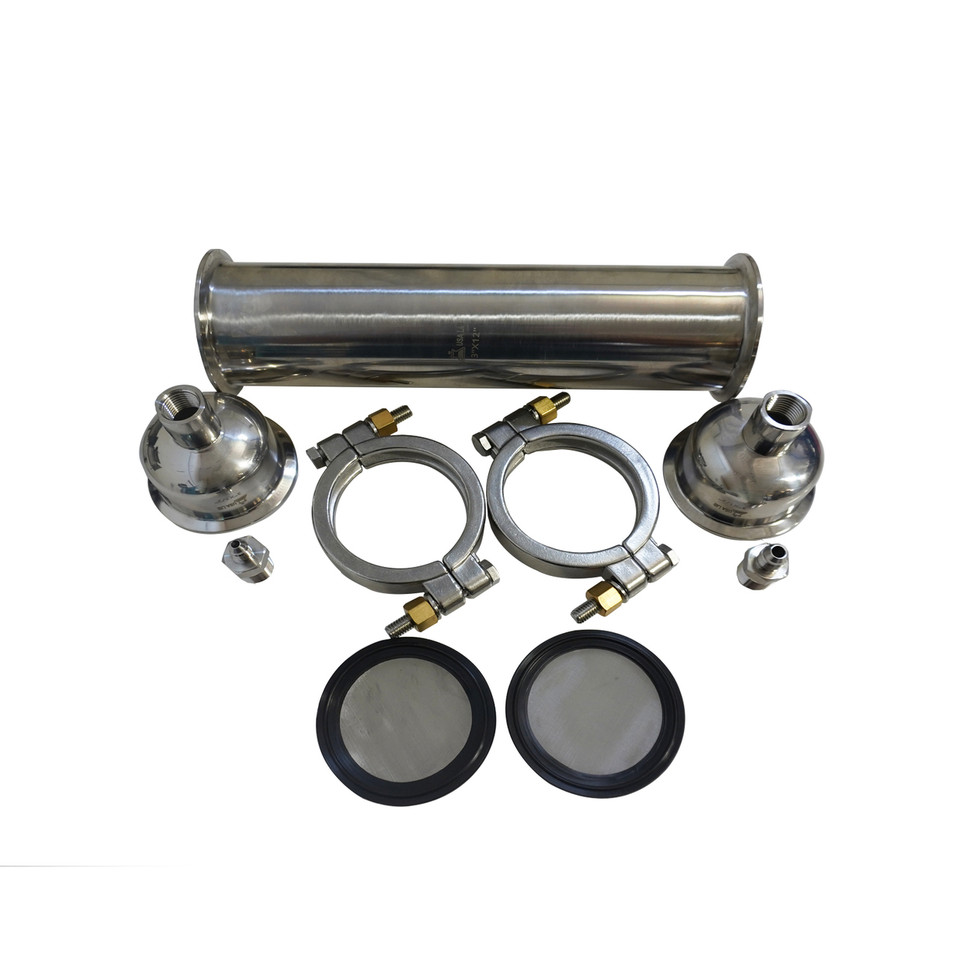

The purpose of a Molecular Sieve Filter is to capture moisture and contaminants in the solvent by filtering them out while the solvent passes through the column. This Mol Sieve Column is made out of 304 Stainless Steel parts. This column includes (1) 2kg bag of 4a Molecular Sieve Beads.
|
Molecular Sieve Column Packing List |
|
|
Model |
Quantity |
|
3" x 12" Stainless steel Tri-clamp spool |
1 |
|
Hemispherical Reducer - 3" Tri-Clamp to 1/2" FNPT |
2 |
|
High Pressure Tri-Clamp - 3" |
2 |
|
Buna-n Gasket with 2500 Mesh (5 Micron) - 3" |
2 |
|
1/2" MNPT to 1/4"MJIC Adapter |
2 |
|
Molecular Sieve Beads, 4A - Pouch (2kg) |
1 |
