Description
JR-Series Jacketed Reactor Stir Props | USA Lab

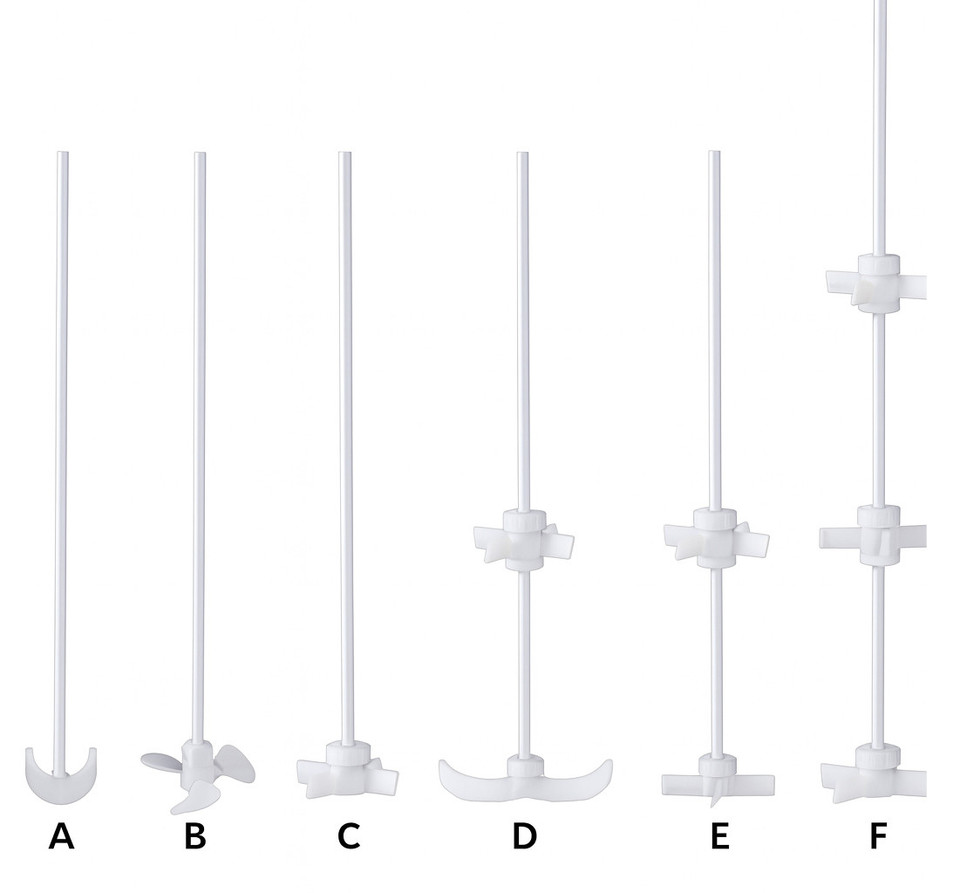

Engineered for USA Lab JR5–JR100 jacketed reactors, these precision stir props deliver reliable mixing for extraction, crystallization, winterization, and general laboratory/process applications. Choose from Standard Foldable, Mixing (MP), and Axial impellers with optional Radial secondary blades for enhanced flow and shear control.
Each model is built around a balanced stainless shaft Coated with PTFE (8–15 mm) with optimized blade geometry and diameters matched to vessel size. Extended shaft lengths maintain stability at operating speeds while minimizing vortexing and dead zones for faster, more uniform results.
From benchtop JR5 to production JR100 reactors, the lineup covers common viscosities and process goals — gentle axial circulation, medium-shear blending, or aggressive multi-blade configurations for solids suspension.
Verify shaft diameter and impeller clearance with your vessel baffles and thermowells before purchase. Need a custom diameter or blade set? Use the Request a Quote option below.
JR5–JR100 Compatible Axial / Mixing / Foldable Optional Radial Add-Ons Stainless Shafts 8–15 mm
Optimized flow: Axial, mixing, and foldable geometries move product efficiently and reduce dead zones.
Scale matched: Diameters and shaft lengths tuned for JR5, JR10, JR20, JR50, and JR100 reactors.
Upgradeable: Add single or dual radial blades on select models for extra shear and top-to-bottom turnover.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why these JR stir props?
- Process-driven geometry — axial blades for circulation, MP blades for blend/shear, foldable for clearance and easy insertion.
- Right size for your vessel — matched diameters and widths reduce cavitation and speed time-to-spec.
- Upgradeable blade stacks — select models add one or two radial blades for improved suspension and top turnover.
- Durable construction — stainless shafts (8–15 mm) in lengths up to 1210 mm for stable operation.
- Complete JR coverage — options for JR5, JR10, JR20, JR50, and JR100 reactor platforms.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| SKU | Item Name | Shaft Diameter | Shaft Length | Main Impeller Diameter | Blade Angle | Blade Width | 2nd Impeller Diameter | 2nd Impeller Blade Width |
|---|---|---|---|---|---|---|---|---|
| JR100SP-A-FOLD | USA Lab JR100 Standard Stir Prop | 15mm | 1210mm | 10.5" | / | 1.5" | / | / |
| JR100SP-B-MP | USA Lab JR100 Mixing Stir Prop | 15mm | 1210mm | 9" | 35° | 4.5" | / | / |
| JR100SP-C-AXIAL | USA Lab JR100 Axial Stir Prop | 15mm | 1210mm | 8.25" | 65° | 1.7" | / | / |
| JR100SP-D-FOLD-RAD | USA Lab JR100 Foldable Stir Prop with Radial Blade Above | 15mm | 1210mm | 10.5" | / | 1.5" | 6" | 1.4" |
| JR100SP-E-AXIAL-RAD | USA Lab JR100 Axial Stir Prop with Radial Blade Above | 15mm | 1210mm | 8.25" | 65° | 1.7" | 6" | 1.4" |
| JR100SP-F-AXIAL-2XRAD | USA Lab JR100 Axial Stir Prop with Radial Blade Above | 15mm | 1210mm | 8.25" | 65° | 1.7" | 6" | 1.4" |
| JR50SP-A-FOLD | USA Lab JR50 Standard Stir Prop | 15mm | 1060mm | 8" | / | 1.5" | / | / |
| JR50SP-B-MP | USA Lab JR50 Mixing Stir Prop | 15mm | 1060mm | 6.5" | 35° | 3.25" | / | / |
| JR50SP-C-AXIAL | USA Lab JR50 Axial Stir Prop | 15mm | 1060mm | 6.75" | 60° | 1.75" | / | / |
| JR50SP-D-FOLD-RAD | USA Lab JR50 Foldable Stir Prop with Radial Blade Above | 15mm | 1060mm | 8" | / | 1.5" | 5" | 1.4" |
| JR50SP-E-AXIAL-RAD | USA Lab JR50 Axial Stir Prop with Radial Blade Above | 15mm | 1060mm | 6.75" | 60° | 1.75" | 5" | 1.4" |
| JR50SP-F-AXIAL-2XRAD | USA Lab JR50 Axial Stir Prop with Dual Radial Blade Above | 15mm | 1060mm | 6.75" | 60° | 1.75" | 5" | 1.4" |
| JR20SP-A-FOLD | USA Lab JR20 Standard Stir Prop | 15mm | 860mm | 6.75" | / | 1.2" | / | / |
| JR20SP-B-MP | USA Lab JR20 Mixing Stir Prop | 15mm | 860mm | 6" | 35° | 3" | / | / |
| JR20SP-C-AXIAL | USA Lab JR20 Axial Stir Prop | 15mm | 860mm | 6.75" | 60° | 1.75" | / | / |
| JR20SP-D-FOLD-RAD | USA Lab JR20 Foldable Stir Prop with Radial Blade Above | 15mm | 860mm | 6.75" | / | 1.2" | 5" | 1.4" |
| JR20SP-E-AXIAL-RAD | USA Lab JR20 Axial Stir Prop with Radial Blade Above | 15mm | 860mm | 6.75" | 60° | 1.75" | 5" | 1.4" |
| JR20SP-F-AXIAL-2XRAD | USA Lab JR20 Axial Stir Prop with Dual Radial Blade Above | 15mm | 860mm | 6.75" | 60° | 1.75" | 5" | 1.4" |
| JR10SP-A-FOLD | USA Lab JR10 Standard Stir Prop | 15mm | 755mm | 6.75" | / | 1.2" | / | / |
| JR10SP-B-MP | USA Lab JR10 Mixing Stir Prop | 15mm | 755mm | 5.5" | 35° | 2.75" | / | / |
| JR10SP-C-AXIAL | USA Lab JR10 Axial Stir Prop | 15mm | 755mm | 6.75" | 60° | 1.75" | / | / |
| JR10SP-D-FOLD-RAD | USA Lab JR10 Foldable Stir Prop with Radial Blade Above | 15mm | 755mm | 6.75" | / | 1.2" | 5" | 1.4" |
| JR10SP-E-AXIAL-RAD | USA Lab JR10 Axial Stir Prop with Radial Blade Above | 15mm | 755mm | 6.75" | 60° | 1.75" | 5" | 1.4" |
| JR5SP-A-FOLD | USA Lab JR5 Standard Stir Prop | 8mm | 635mm | 4.5" | / | 1" | / | / |
| JR5SP-B-MP | USA Lab JR5 Mixing Stir Prop | 8mm | 635mm | 4" | 35° | 2" | / | / |
| JR5SP-C-AXIAL | USA Lab JR5 Axial Stir Prop | 8mm | 635mm | 4" | 50° | 1.5" | / | / |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
Which blade style should I choose?
Axial maximizes top-to-bottom circulation with moderate shear; Mixing (MP) provides stronger blending and dispersion; Foldable eases insertion through narrow lids and improves clearance while still moving fluid efficiently.
How do I size the impeller to my reactor?
Use the JR model match (JR5–JR100) and verify shaft diameter (8–15 mm), shaft length, and impeller diameter against vessel baffles/thermowells. For viscous media, select models with larger blade width or add radial blades.
What do the radial add-on blades do?
Single or dual radial blades increase shear and improve solids suspension, cutting blend times and reducing stratification in taller vessels.
Are these compatible with non-USA Lab reactors?
Yes, provided the shaft diameter/length and impeller clearance match your vessel hardware. Contact Sales for adapter options or custom shafts.
