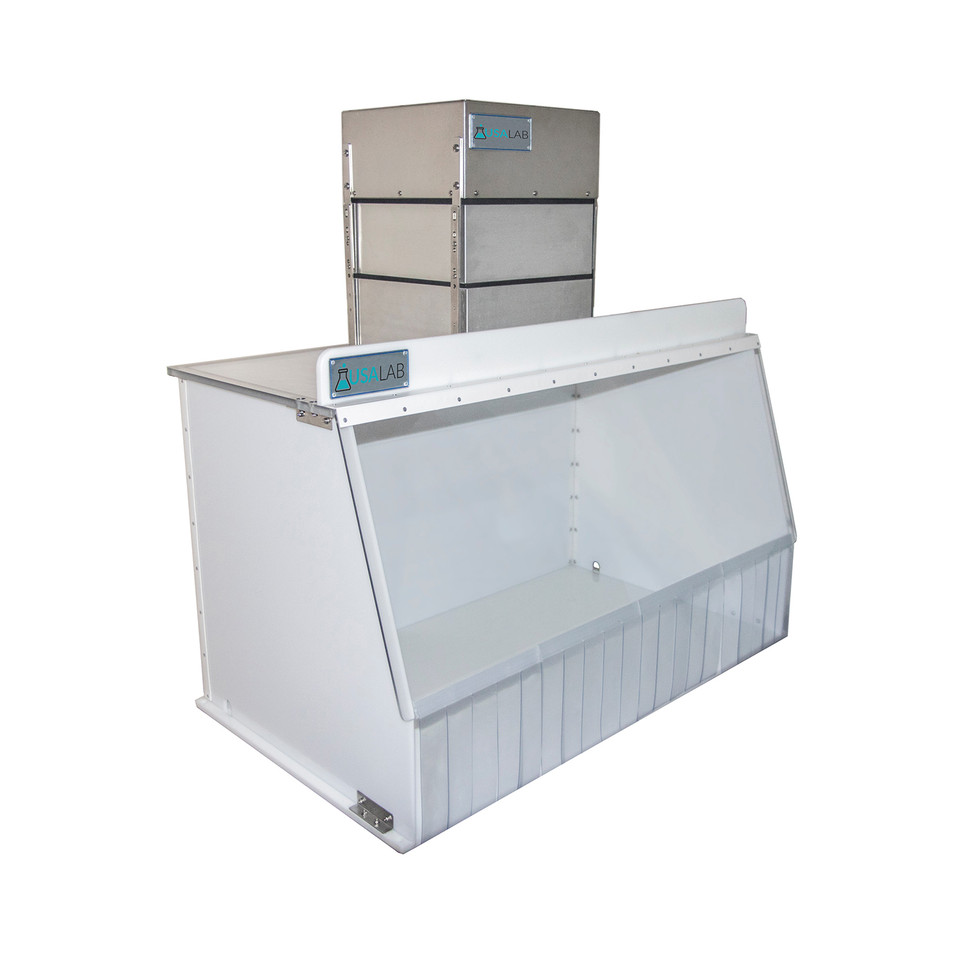

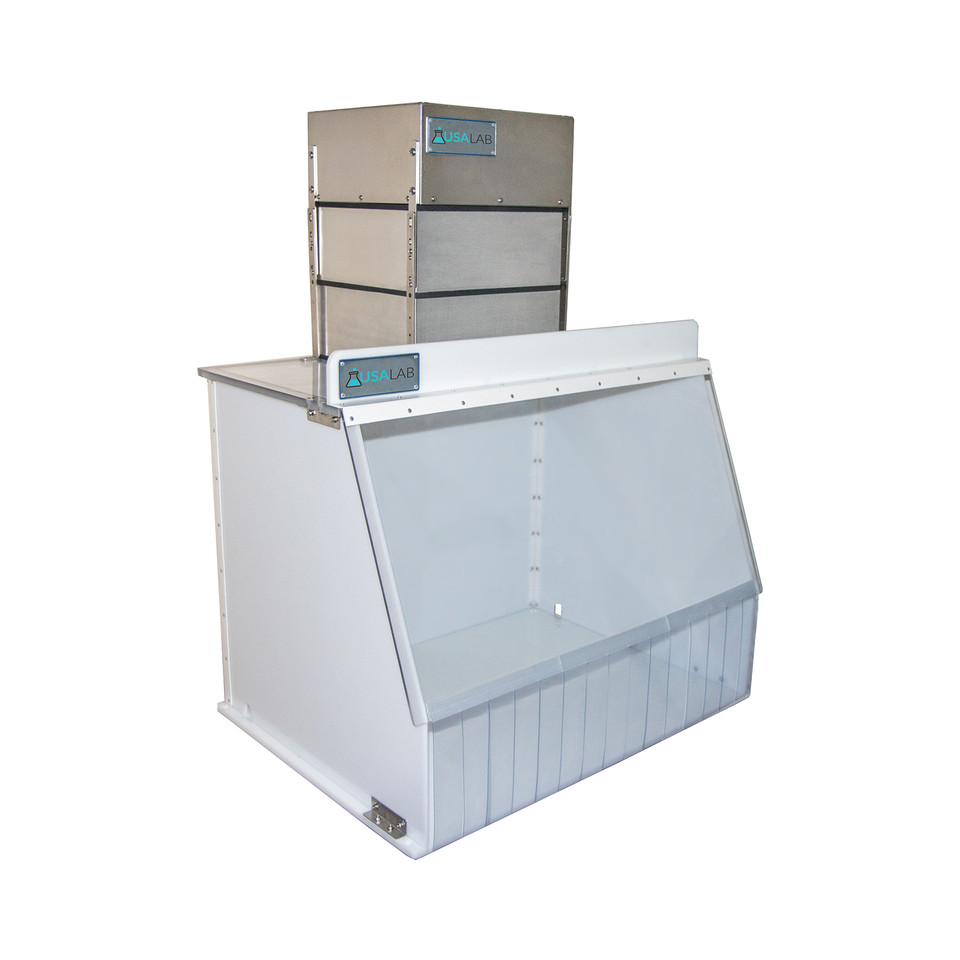

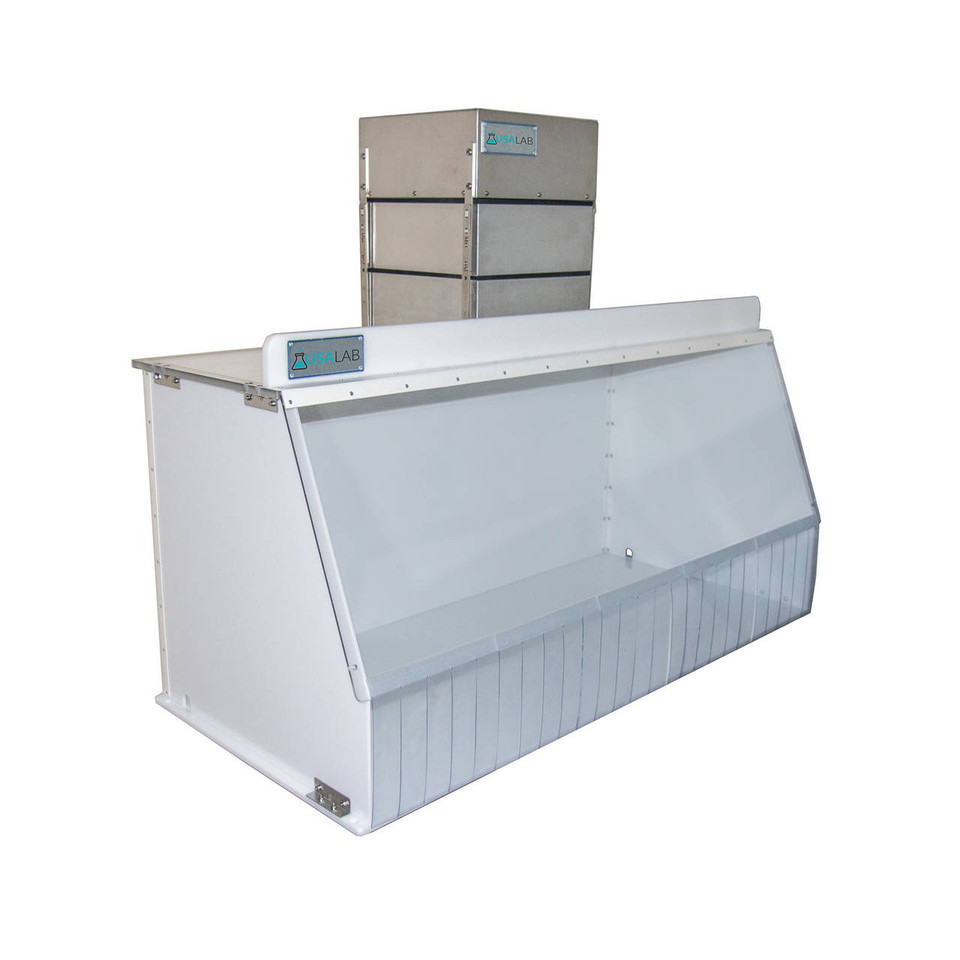

High Efficiency Powder Containment Hood | USA Lab

The High Efficiency Powder Containment Hood combines powerful airflow with a sturdy, compact enclosure to deliver reliable respiratory and environmental protection during powder handling. Engineered to pull harmful particulate up and away from the operator’s breathing zone, it captures airborne contaminants into a dedicated filter chamber to help keep work areas cleaner and safer.

Depending on your application, the filter chamber can be configured with HEPA filtration (up to 99.97% efficient at 0.3 microns and larger), ULPA filtration (up to 99.9995% efficient at 0.12 microns and larger), Activated Carbon, or specialty-blended media (including Acid Gas, Mercury, Aldehyde, and Ammonia blends) for targeted adsorption.

With quiet operation, long filter life, and fast, simple filter changes, this containment hood is built for daily lab and production workflows where powder control and operator protection matter most.

Specifications and available filter media depend on configuration and application requirements.
Need help choosing filtration? Contact our team for the best match to your powder, process, and safety goals.

Powder Containment HEPA / ULPA Options Activated Carbon Specialty Media Available

Airflow: Designed to pull airborne particulate up and away from the operator’s breathing zone.

Visibility: Clear anti-static vinyl curtains help reduce static and improve containment at the opening.

Filtration: Configurable filter chamber supports HEPA, ULPA, carbon, and specialty-blended media.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Chemical Analysis Form

Why this high efficiency powder containment hood?

Built for powder control — helps capture airborne particulate at the source before it spreads into the room.
Configurable filtration — choose HEPA, ULPA, activated carbon, or specialty media based on the hazard and process needs.
Operator-focused design — engineered airflow draws particulate up and away from the breathing zone during weighing, dispensing, and transfer.
Quiet and efficient — designed for low-noise operation while maintaining effective containment performance.
Fast maintenance — simple filter change process supports uptime and long filter life in routine operation.

Talk to an expert

Get help selecting the best filtration for your powders and workflow.

Call 734-855-4890

Technical Specifications

Model	24" Wide	30" Wide	40" Wide	50" Wide
OD Dimensions	24"D x 26"W x 25"H	24"D x 32"W x 25"H	24"D x 42"W x 25"H	24"D x 52"W x 25"H
ID Dimensions	23.5"D x 24"W x 24"H	23.5"D x 30"W x 24"H	23.5"D x 40"W x 24"H	23.5"D x 50"W x 24"H
Hood Materials	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate
Front Window	0.250" Clear Polycarbonate	0.250" Clear Polycarbonate	0.250" Clear Polycarbonate	0.250" Clear Polycarbonate
Blower Dimensions	13" L x 13" W x 17" H	13" L x 13" W x 17" H	13" L x 13" W x 17" H	13" L x 13" W x 17" H
Motor	Fractional Horsepower	Fractional Horsepower	Fractional Horsepower	Fractional Horsepower
Weight	125 lbs	125 lbs	100 lbs	125 lbs
Filter Efficiencies	HEPA 99.97% @0.3µ \| ASHRAE 95% @0.5µ \| ULPA 99.9995% @0.12µ \| Carbon/Specialty	HEPA 99.97% @0.3µ \| ASHRAE 95% @0.5µ \| ULPA 99.9995% @0.12µ \| Carbon/Specialty	HEPA 99.97% @0.3µ \| ASHRAE 95% @0.5µ \| ULPA 99.9995% @0.12µ \| Carbon/Specialty	HEPA 99.97% @0.3µ \| ASHRAE 95% @0.5µ \| ULPA 99.9995% @0.12µ \| Carbon/Specialty
Inlet Velocity Note	50" Hood = 92 FPM	50" Hood = 92 FPM	30" Hood = 153 FPM	50" Hood = 92 FPM
Electrical	115/1/60 2A \| 220/1/50 .75A	115/1/60 2A \| 220/1/50 .75A	115/1/60 2A \| 220/1/50 .75A	115/1/60 2A \| 220/1/50 .75A
Sound Level	61–66 dBA	61–66 dBA	61–66 dBA	61–66 dBA
Max Operating Temp	≤170°F	≤170°F	≤170°F	≤170°F
Warranty	Limited 2-year	Limited 2-year	Limited 2-year	Limited 2-year

Popular Industries & Use Cases

Pharmaceutical Chemical Sciences Academic & Research Botanical Extraction

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Filtration guidance and configuration help for your powders and processes.

Custom Request Consulting

Talk to Sales

We’ll help spec the right containment hood and filtration package.

Call 734-855-4890 Email Sales/Support

FAQ

What is the High Efficiency Powder Containment Hood used for?

The High Efficiency Powder Containment Hood is designed to help control airborne particulate during powder handling tasks such as weighing, dispensing, and transfer. It pulls harmful particulate up and away from the operator’s breathing zone and captures it in a filter chamber to support respiratory and environmental protection.

What filtration options are available for the High Efficiency Powder Containment Hood?

The High Efficiency Powder Containment Hood can be configured with HEPA filtration (up to 99.97% at 0.3 microns and larger), ULPA filtration (up to 99.9995% at 0.12 microns and larger), Activated Carbon, or specialty-blended media such as Acid Gas, Mercury, Aldehyde, and Ammonia blends depending on the application.

Does the High Efficiency Powder Containment Hood include a speed controller and light?

Yes. The High Efficiency Powder Containment Hood includes a fluorescent light and a variable speed controller (115V only) to help dial in airflow for your process.

How do I verify airflow on the High Efficiency Powder Containment Hood?

A velometer is included with the High Efficiency Powder Containment Hood to support airflow verification and routine checks as part of your SOPs.
