Description

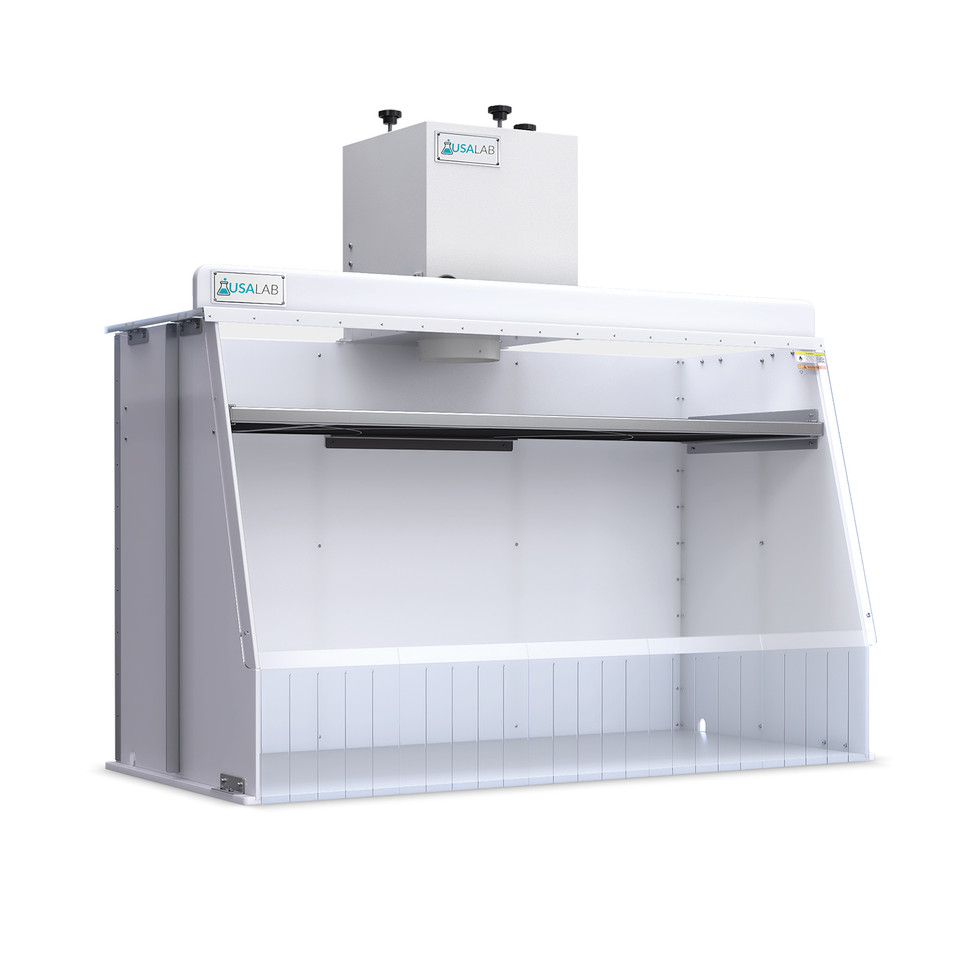

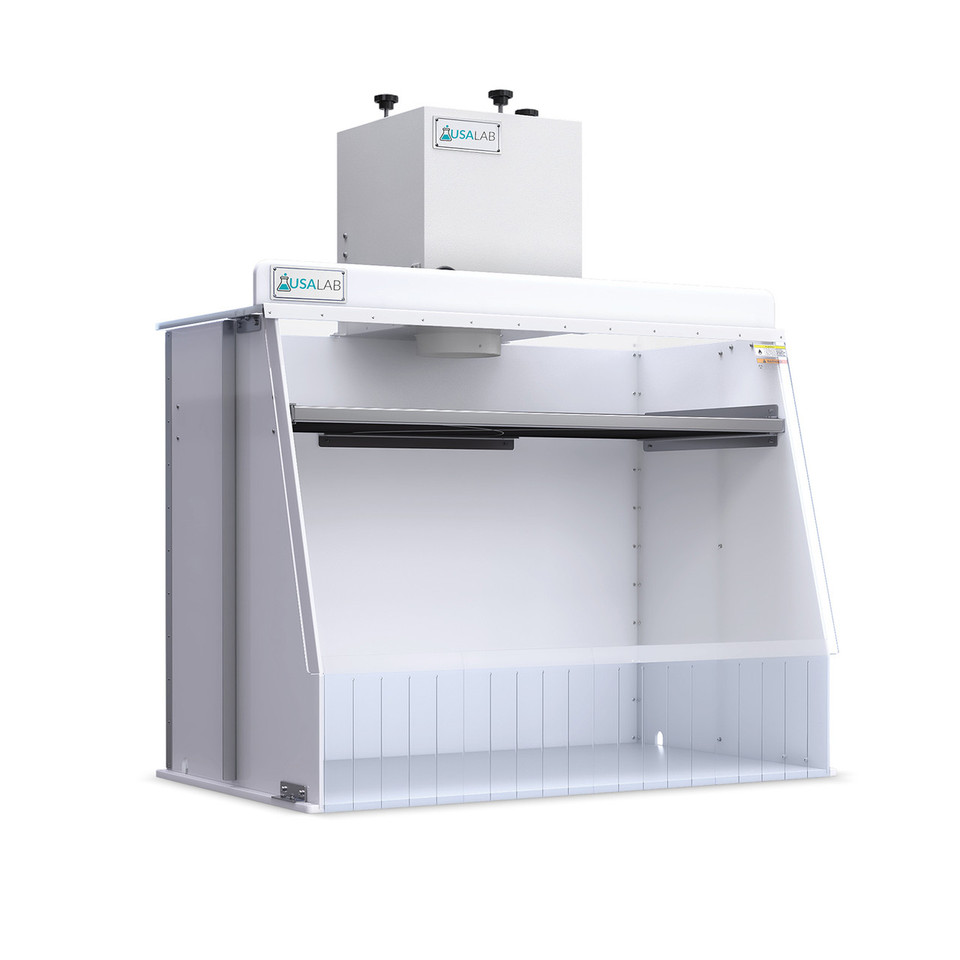

Portable Spray Booth | USA Lab

Portable Spray Booths, manufactured by Sentry Air Systems, are high-performance air filtration solutions for light spray painting, aerosol sprays, and other processes that emit hazardous paint fumes. This desktop paint booth is built to help contain overspray, capture fine particulate, and reduce unwanted odors—creating a safer breathing zone for the operator.

Designed for indoor environments where external ducting is not practical or desired, the Portable Spray Booth does not require any external venting. It uses a three-tier filtration approach that can include an internal spray filter for overspray, HEPA filtration for fine particulate, and activated carbon filtration for odors and VOCs.

Whether you’re spraying small parts, touch-up coatings, epoxies, or specialty finishes, this compact unit helps keep fumes and particulate controlled while keeping installation costs low.

Filtration requirements vary by paint chemistry. Review your SDS and consult our specialists for optimal filter selection.
For specialty paints, activated carbon can be impregnated to improve VOC/odor capture.

No External Venting Desktop / Portable HEPA + Carbon VOC & Odor Control

Installation: Minimal setup costs—no external ducting or venting required.

Filtration: Internal spray filter + HEPA + activated carbon for particulate, odors, and VOCs.

Efficiency: Helps create a safer breathing zone while reducing fumes in the work area.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Resources & Downloads

Chemical Analysis Form

Why this portable spray booth?

Fume & overspray containment — helps isolate paint fumes, vapors, and particulate during light spraying tasks.
Three-tier filtration — spray filter for overspray, HEPA for fine particulate, and activated carbon for odors and VOCs.
No external venting — ideal for indoor spaces where ducting outside is not practical or desired.
Lower operating hurdles — reduces installation costs and can help avoid permitting issues related to venting outdoors (e.g., air sampling requirements).
Customizable configurations — Sentry Air Systems can tailor filtration (including impregnated carbon) to fit your paint and process needs.

Talk to an expert

Get filter selection guidance based on your SDS and spraying process.

Call 734-855-4890

Technical Specifications

Model	30" Wide	40" Wide	50" Wide	60" Wide
OD Dimensions	24"D x 32"W x 32"H	24"D x 42"W x 32"H	24"D x 52"W x 32"H	24"D x 62"W x 32"H
ID Dimensions	23.5"D x 30"W x 24"H	23.5"D x 40"W x 24"H	23.5"D x 50"W x 24"H	23.5"D x 60"W x 24"H
Hood Materials	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate	Sides: .250" White Acrylic \| Base: .500" HDPE \| Top: .500" Clear Polycarbonate
Front Window	0.250" Clear Polycarbonate	0.250" Clear Polycarbonate	0.250" Clear Polycarbonate	0.250" Clear Polycarbonate
Inlet Velocity (HEPA)	100 FPM	100 FPM	100 FPM	100 FPM
Inlet Velocity (Carbon)	60 FPM	60 FPM	60 FPM	60 FPM
Blower Dimensions	13" L x 13" W x 14.5" H	13" L x 13" W x 14.5" H	13" L x 13" W x 14.5" H	13" L x 13" W x 14.5" H
Weight	110 lbs	120 lbs	125 lbs	135 lbs
Electrical	115/1/60 2A \| 220/1/50 .75A	115/1/60 2A \| 220/1/50 .75A	115/1/60 2A \| 220/1/50 .75A	115/1/60 2A \| 220/1/50 .75A
Sound Level	61–66 dBA	61–66 dBA	61–66 dBA	61–66 dBA
Max Operating Temp	≤170°F	≤170°F	≤170°F	≤170°F
Warranty	Limited 2-year	Limited 2-year	Limited 2-year	Limited 2-year

Popular Industries & Use Cases

Chemical Sciences Academic & Research Pharmaceutical Botanical Extraction

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Custom booth sizing and filtration packages for specialty coatings.

Custom Request Consulting

Talk to Sales

We’ll help spec the right Portable Spray Booth for your workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is a Portable Spray Booth?

A Portable Spray Booth is a compact enclosure designed to isolate fumes and vapors expelled during painting, epoxy, and coating applications. The Portable Spray Booth helps capture overspray and reduce airborne contaminants, creating a safer breathing zone for the operator.

How does a Portable Spray Booth work?

The Portable Spray Booth uses filtration to remove contaminants from the air stream. In most configurations, it uses a three-part filtration process: an internal spray filter for overspray, a HEPA filter for fine particulate, and an activated carbon filter for odors and VOCs.

Do Portable Spray Booths work against VOCs?

Yes. Portable Spray Booth VOC performance depends on the paint chemistry and SDS details. In most cases, activated carbon filtration will work, and for specialty paints the carbon can be impregnated to improve odor and VOC capture in the Portable Spray Booth.

Are DIY Portable Spray Booths effective?

DIY spray booths can be effective if optimally built, but they carry risks when filtration and airflow are not properly engineered. The Portable Spray Booth from Sentry Air Systems utilizes a three-part filtration system (MERV 7 pre-filter for overspray, HEPA for fine particulate, and activated carbon for odors/VOCs) that is highly efficient and typically not matched by DIY projects.

What safety considerations should I follow when using a Portable Spray Booth?

Safe operation of a Portable Spray Booth is critical. Visually inspect the booth frequently, limit pedestrian traffic in front of the hood, place bulky equipment at the rear of the hood, raise large equipment at least 2” off the surface to allow airflow, and establish a regular cleaning schedule if the Portable Spray Booth is used often.
