Description
1L Benchtop Single Jacketed Glass Reactor | USA Lab
Our 1L Benchtop Jacketed Glass Reactor is engineered for precision, durability, and versatility in laboratory research and production. Constructed from premium borosilicate glass, this single-jacketed reactor provides exceptional chemical resistance and thermal stability, ensuring reliable performance across a wide range of processes.
Ideal for chemical synthesis, distillation, crystallization, extraction, and other batch reactions, this 1-liter glass reactor delivers consistent temperature control for both small-scale R&D and pilot laboratory applications. Its compact benchtop design makes it an excellent choice for labs seeking efficient mixing, heating, and cooling in a controlled environment.
Borosilicate Glass Single-Jacketed Design Compact Benchtop Size Adjustable Stirring System
Wide Temperature Range: Handles -80°C to 210°C (-112°F to 410°F) for maximum versatility.
Vacuum Capability: Achieves as low as 0.0033 Mpa (25 Torr / 25,000 Micron) for controlled reactions.
Variable Speed Control: Rotary stirring adjustable from 50–1500 RPM.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this reactor?
- Durable borosilicate glass — excellent chemical resistance and thermal stability for long-term lab use.
- Precise temperature control — single-jacketed design supports heating and cooling with circulating systems.
- Compact & versatile — ideal for R&D, universities, and small-scale process development.
- Reliable stirring system — adjustable-speed motor ensures consistent, efficient mixing.
- Easy integration — standard glass joints and NPT connections for seamless lab setup.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | JRBT 1L | JRBT 2L | JRBT 5L |
|---|---|---|---|
| Vessel Capacity | 1L / 0.26Gal | 2L / 0.53 Gal | 5L / 1.32Gal |
| Material Flask Capacity | 500ml | 500ml | 500ml |
| Receiving Flask Capacity | 1000ml | 1000ml | 1000ml |
| Fluid Jacket Capacity | 250ml | 250ml | 800ml |
| Glass Material | GG-17 Borosilicate Glass | Thickness: 6.5mm ±0.5mm | GG-17 Borosilicate Glass | Thickness: 6.5mm ±0.5mm | GG-17 Borosilicate Glass | Thickness: 6.5mm ±0.5mm |
| Rotary Speed | 50-1500RPM | 50-1500RPM | 50-1500RPM |
| Glass Temperature Range | -80°C to 210°C / -112°F to 410°F | -80°C to 210°C / -112°F to 410°F | -80°C to 210°C / -112°F to 410°F |
| Power Requirements | 110-120V 60Hz 15A | 110-120V 60Hz 15A | 110-120V 60Hz 15A |
| Stirrer Wattage | 120W | 120W | 120W |
| Lowest Vacuum Level | 0.0033 Mpa | 25 Torr | 25,000 Micron | 0.0033 Mpa | 25 Torr | 25,000 Micron | 0.0033 Mpa | 25 Torr | 25,000 Micron |
| Condenser and Feed Valve Barbs | 10MM - 3/8" | 10MM - 3/8" | 10MM - 3/8" |
| Bottom Drain Port | 35MM - 1 3/8" | 35MM - 1 3/8" | 35MM - 1 3/8" |
| Receiving Flask Barb | 16MM - 5/8" | 16MM - 5/8" | 16MM - 5/8" |
| Jacket Pressure | Maximum 11.6 psi - Nominal 7.25 psi | Maximum 11.6 psi - Nominal 7.25 psi | Maximum 11.6 psi - Nominal 7.25 psi |
| Fluid Connection | 16MM - 5/8" barb or 1/2" NPT | 16MM - 5/8" barb or 1/2" NPT | 16MM - 5/8" barb or 1/2" NPT |
| External Dimensions LxWxH | 18 x 18 x 41" | 18 x 18 x 47" | 13 x 15 x 58" |
| Weight | 72 lbs | 75 lbs | 114 lbs |
Motor Specifications
| Model | JRBT -STIRRER |
|---|---|
| Max Stir capacity (H2O) [L] | 40 |
| Input Power [W] | 120 |
| Motor Output Power [W] | 100 |
| Voltage [VAC] | 100-240 |
| Frequency [Hz] | 50/60 |
| Power [W] | 130 |

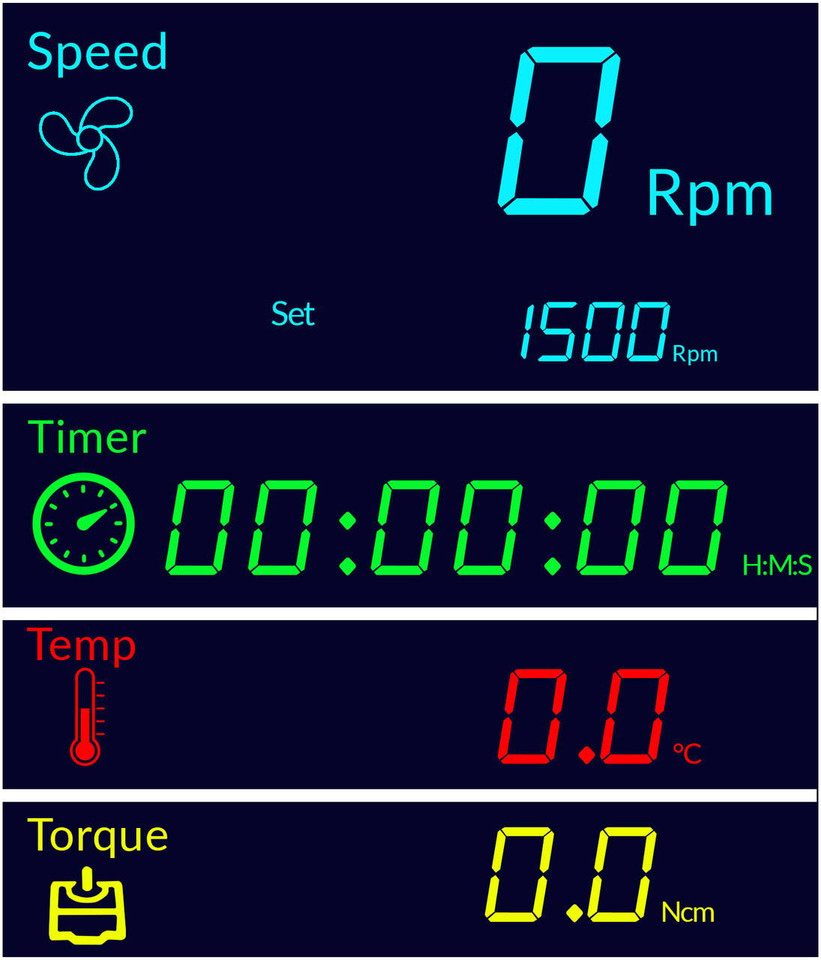

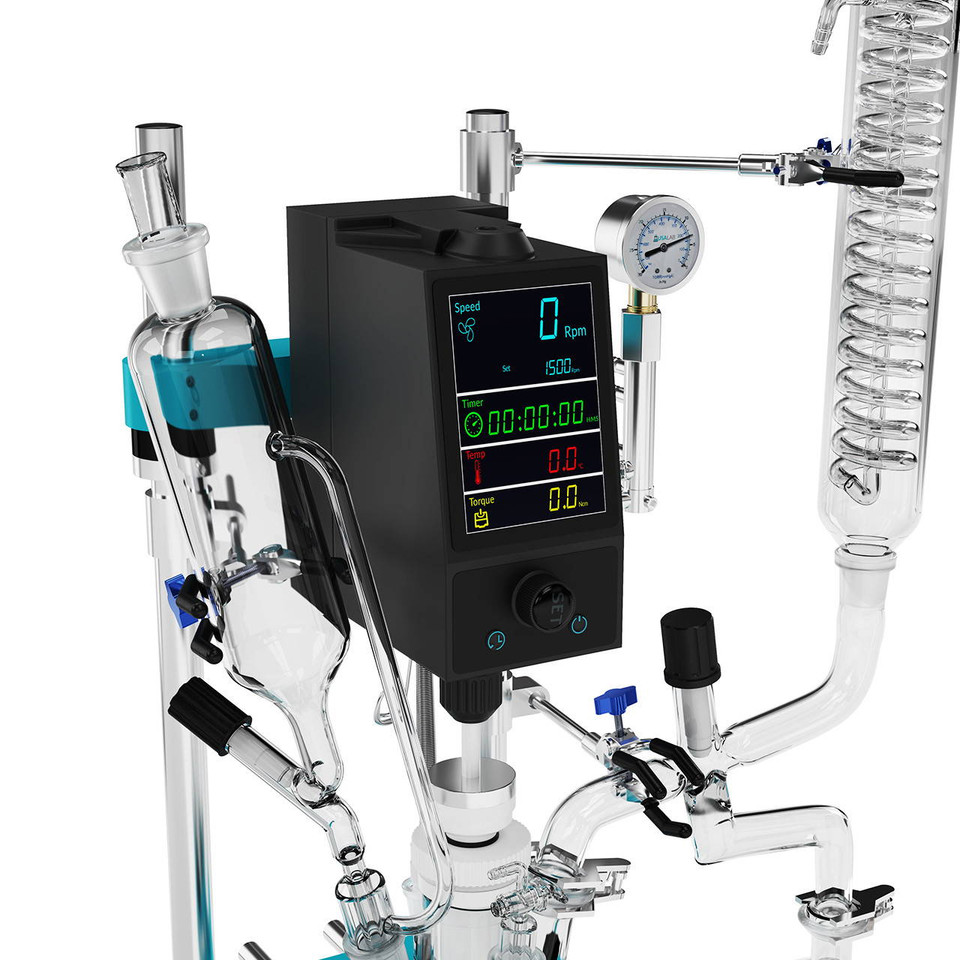

| Speed, Time, Torque, Temp display | Digital Screen Display |
| Timing range | 0-99h59min |
| Rotary range [rpm] | 50-2200 |
| Speed accuracy [rpm] | ±1 |
| Max Torque [N.cm] | 60 |
| Overload Protection | Auto stop |
| Motor Protection | Auto stop |
| Max Viscosity [mPas] | 50000 |
| Drill Chuck | Import anti-corrosion and self-tension type |
| diameter range [mm] | 0.5-10 |
| protection class(DIN EN 60529) | IP42 |
| Environment Temp [oC] | May-40 |
| Related humidity [%] | 80 |
| RS485Interface | Yes |
| Probe | Yes |
| Power |
110V~60HZ |

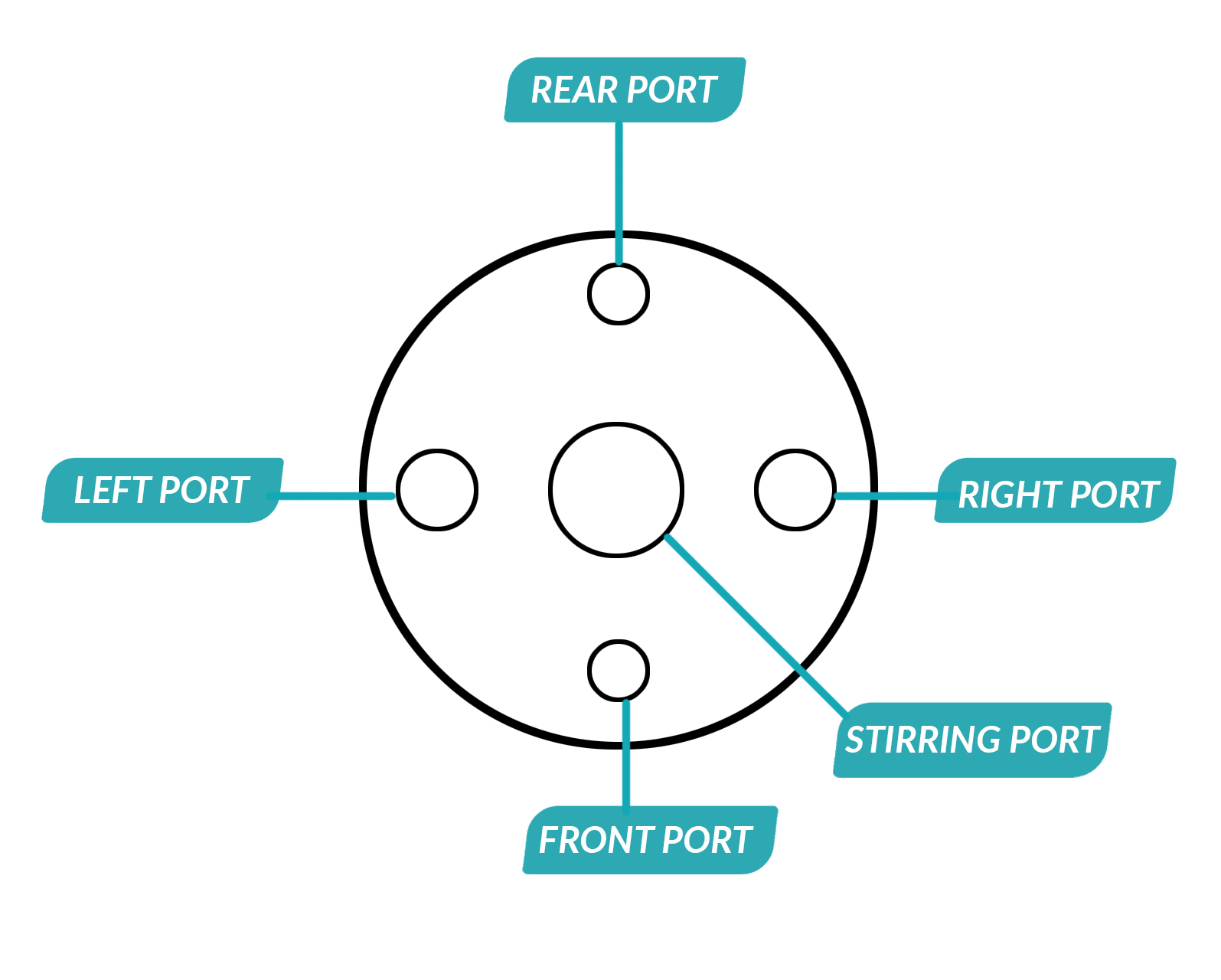

Lid Specifications
| Model | JRBT 1L | JRBT 2L | JRBT 5L |
|---|---|---|---|
| Left Port | 24/29 Joint | 24/29 Joint | 24/29 Joint |
| Right Port | S35 Ball Joint | S35 Ball Joint | S35 Ball Joint |
| Stirring Port | 50mm Flange Port | 50mm Flange Port | 50mm Flange Port |
| Front Port | 19/26 Joint | 19/26 Joint | 19/26 Joint |
| Rear Port | 19/26 Joint | 19/26 Joint | 19/26 Joint |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What types of applications is this 1L reactor best suited for?
This reactor is ideal for chemical synthesis, distillation, crystallization, extraction, and other batch reactions. Its compact size makes it especially well-suited for R&D labs, universities, and small-scale pilot projects.
What temperature range can the reactor handle?
The single-jacketed glass vessel supports a wide operating range of -80°C to 210°C (-112°F to 410°F), allowing both cryogenic and high-temperature reactions.
Can this reactor operate under vacuum conditions?
Yes. It is capable of reaching as low as 0.0033 Mpa (25 Torr / 25,000 Micron), making it suitable for controlled vacuum-assisted processes.
How is temperature control managed with this system?
The jacket is designed to connect to a circulating heater or chiller, enabling precise control of reaction temperatures for reliable, repeatable results.
