Description

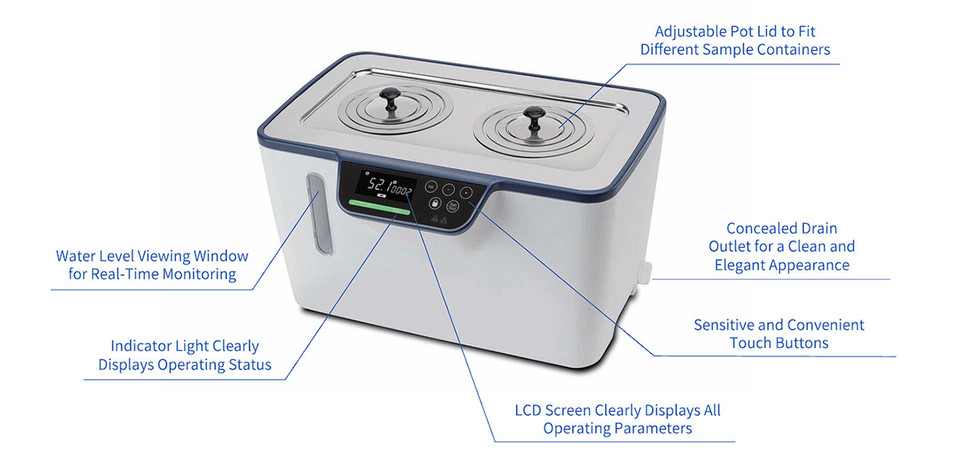

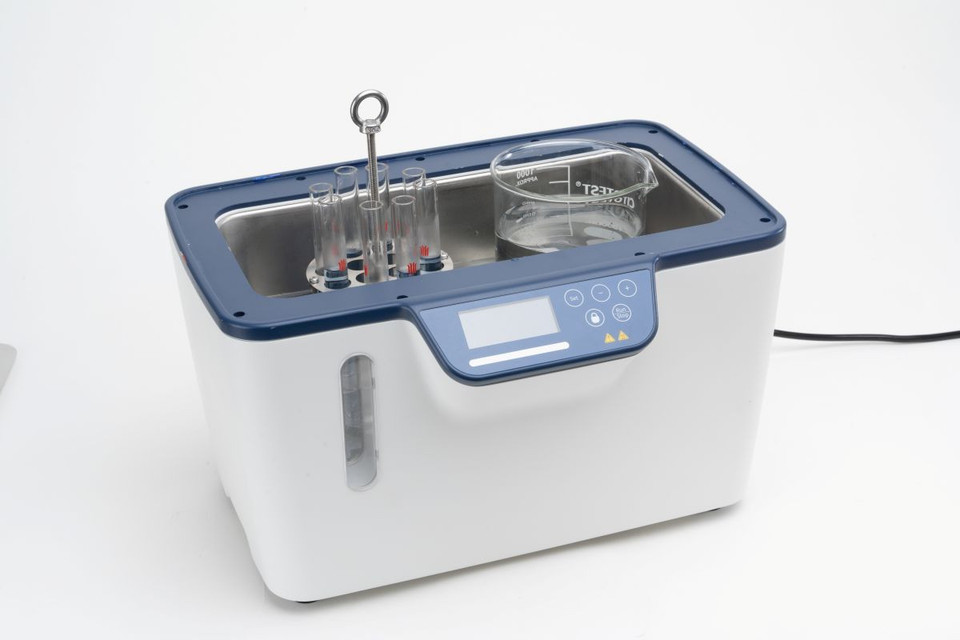

USA Lab 5L Digital Water Bath, Touch LCD, ±1 °C
The 5L Water bath is a compact, 5 L digital water bath designed for precise, stable heating from room temperature +5 °C to 100 °C. A clear LCD shows temperature, time, and status, while smart touch controls, a safety lock, and dry-boil protection make operation simple and safe.
A one-piece stainless-steel inner tank resists corrosion and cleans easily. The adjustable lid accommodates different vessels, and a concealed drain and heating tube maximize space and keep the exterior sleek for modern lab environments.
Ideal for academic, medical, pharmaceutical, food testing, and chemical analysis workflows—including sample prep, physico-chemical analysis, and constant-temperature reactions.
Safety note: Maintain water above the minimum level and enable the safety lock during unattended timed heating. Lead time and availability may vary; contact sales for current stock.
5 L Stainless Tank Touch LCD Control ±1 °C Accuracy Dry-Boil Protection
Precise control: Room temp +5–100 °C with stability ≤ ±1 °C and 0.1 °C display resolution.
Fast heating: Heats 5 L to 100 °C efficiently with 800 W concealed heating.
Safer operation: Dry-boil sensor, safety-lock, insulated outer shell, and over-temperature protection.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Resources & Downloads
Why this water bath?
- Precision & stability — ±1 °C accuracy, ≤ ±1 °C stability, 0.1 °C display resolution.
- Smart touch control — intuitive LCD with timer (1 min–99 h 59 min) and safety-lock.
- Clean, durable tank — one-piece stainless steel inner tank; concealed heating tube for easy cleaning.
- Space-saving design — compact body with viewing window and concealed drain outlet.
- Versatile lid & rack — adjustable lid fits varied containers; reinforced support rack included.
Talk to an expert
Get sizing help, SOP guidance, and integration tips for your line.
Technical Specifications
| Model | USA Lab 5L Water Bath |
|---|---|
| Temperature Range | Room temp +5 °C to 100 °C |
| Temperature Accuracy | ±1 °C |
| Temperature Stability | ≤ ±1 °C |
| Temperature Display Resolution | 0.1 °C |
| Time Setting | 1 min – 99 h 59 min |
| Bath Volume | 5 L |
| Overheating Protection | Yes (dry-boil sensor) |
| Anti-Dry Burn | Yes |
| Temperature Sensor | PT1000 |
| Dimensions (W×D×H) | 390 × 290 × 227 mm |
| Weight | 3.9 kg |
| Power / Frequency | 110/220 V, 50/60 Hz |
| Heating Power | 800 W |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored tanks, skids, and integration help.
Talk to Sales
We’ll help spec the right system for your throughput.
FAQ
What is the temperature range and accuracy?
WB5-E heats from room temperature +5 °C up to 100 °C with ±1 °C accuracy and ≤ ±1 °C stability; resolution is 0.1 °C.
Does it include safety features for unattended use?
Yes. It features dry-boil protection, a safety-lock to prevent accidental changes, insulated outer shell, and over-temperature protection.
Can I set timed heating cycles?
Yes. The integrated timer allows 1 minute to 99 hours 59 minutes of operation with audible touch feedback.
What vessels will fit?
The adjustable lid accommodates varied beakers and flasks; the reinforced support rack offers strong load-bearing capacity.
