Description

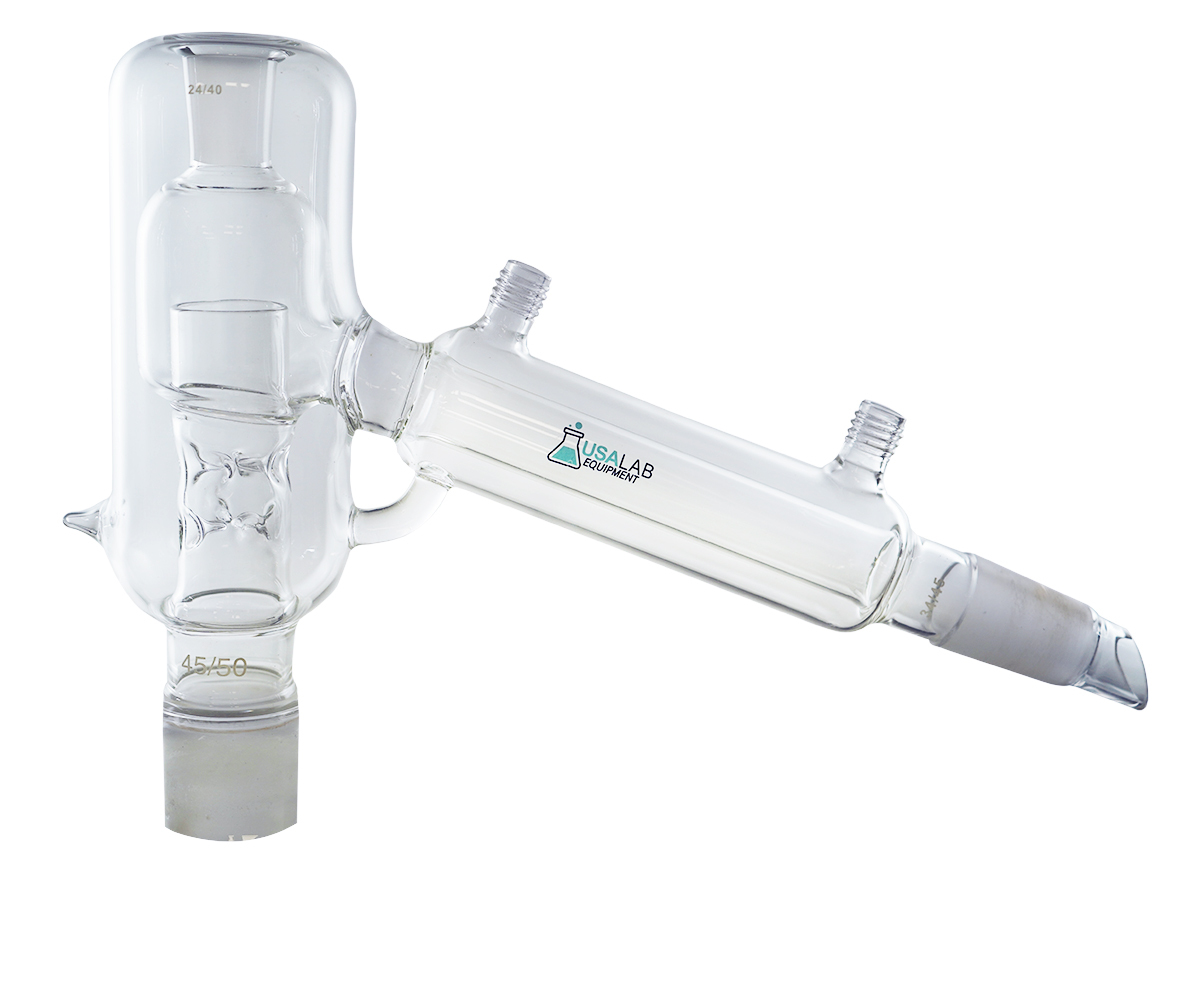

USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head - CUP Design

The USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head is constructed from durable 3.3 borosilicate glass and designed for efficient short path vacuum distillation. Its CUP-style design and angled configuration provide a practical solution for laboratory and small-scale distillation setups requiring reliable glassware performance.

Available in configurations for 2L and 5L vessels, this short path distillation head offers either a 34/45 or 45/50 bottom joint depending on the selected option. The design supports faster distillation while providing secure glass-to-glass connections for compatible laboratory equipment.

The USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head provides an economical option for short path vacuum distillation applications without sacrificing the durability and thermal performance expected from 3.3 borosilicate glass. It is well suited for laboratory processing, research, and other controlled distillation workflows.

3.3 Borosilicate Glass 60° CUP Design Vacuum Jacketed 2L & 5L Options

Durable Glass Construction: 3.3 borosilicate glass provides dependable thermal and chemical resistance for demanding laboratory distillation workflows.

Flexible Joint Options: 34/45 and 45/50 bottom-joint configurations accommodate different vessel sizes and compatible distillation assemblies.

Efficient Distillation Design: 60° CUP-style geometry is designed to support efficient short path vacuum distillation and streamlined system integration.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab Short Path Distillation Head?

3.3 borosilicate glass construction — provides durable, heat-resistant glassware suitable for laboratory distillation applications.
60° CUP-style configuration — supports efficient short path distillation and practical integration into compatible systems.
Multiple vessel-size options — available for 2L and 5L applications to match different processing requirements.
Flexible bottom-joint configurations — choose between 34/45 and 45/50 bottom joints according to the selected vessel configuration.
Cost-effective laboratory solution — delivers a practical short path vacuum distillation head at an economical value.

Talk to an expert

Get product guidance, application support, and compatibility information for your distillation setup.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head - CUP Design
Product Type	Short Path Distillation Head
Glass Material	3.3 Borosilicate Glass
Design	60° CUP Design
Jacket Configuration	Vacuum Jacketed
Application Capacity	2L & 5L configurations
2L Configuration	34/45 Bottom \| 34/45 Outlet
5L Configuration	45/50 Bottom \| 34/45 Outlet
2L Bottom Joint	34/45
5L Bottom Joint	45/50
Outlet Configuration	34/45 Outlet
Distillation Type	Short Path Vacuum Distillation
Glassware Type	Distillation Head
Primary Function	Efficient short path distillation
Vessel Compatibility	2L and 5L configurations
Shipping Length	14 in.
Shipping Width	15 in.
Shipping Height	6 in.
Shipping Weight	2.5 lb.

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Research Chemical Sciences Academic & Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is the USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head used for?

The USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head is designed for short path vacuum distillation applications, including laboratory processing, research, and compatible small-scale distillation workflows.

What glass is used to construct the USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head?

The distillation head is constructed from 3.3 borosilicate glass, providing durable glassware performance for laboratory applications involving controlled heating and chemical processing.

What joint configurations are available for the USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head?

The 2L configuration uses a 34/45 bottom joint with a 34/45 outlet, while the 5L configuration uses a 45/50 bottom joint with a 34/45 outlet.

What are the shipping dimensions and weight of the USA Lab 2L & 5L 60° Short Path Vacuum Jacketed Distillation Head?

The shipping box measures approximately 14 in. L × 15 in. W × 6 in. H and the listed shipping weight is 2.5 lb.
