Description

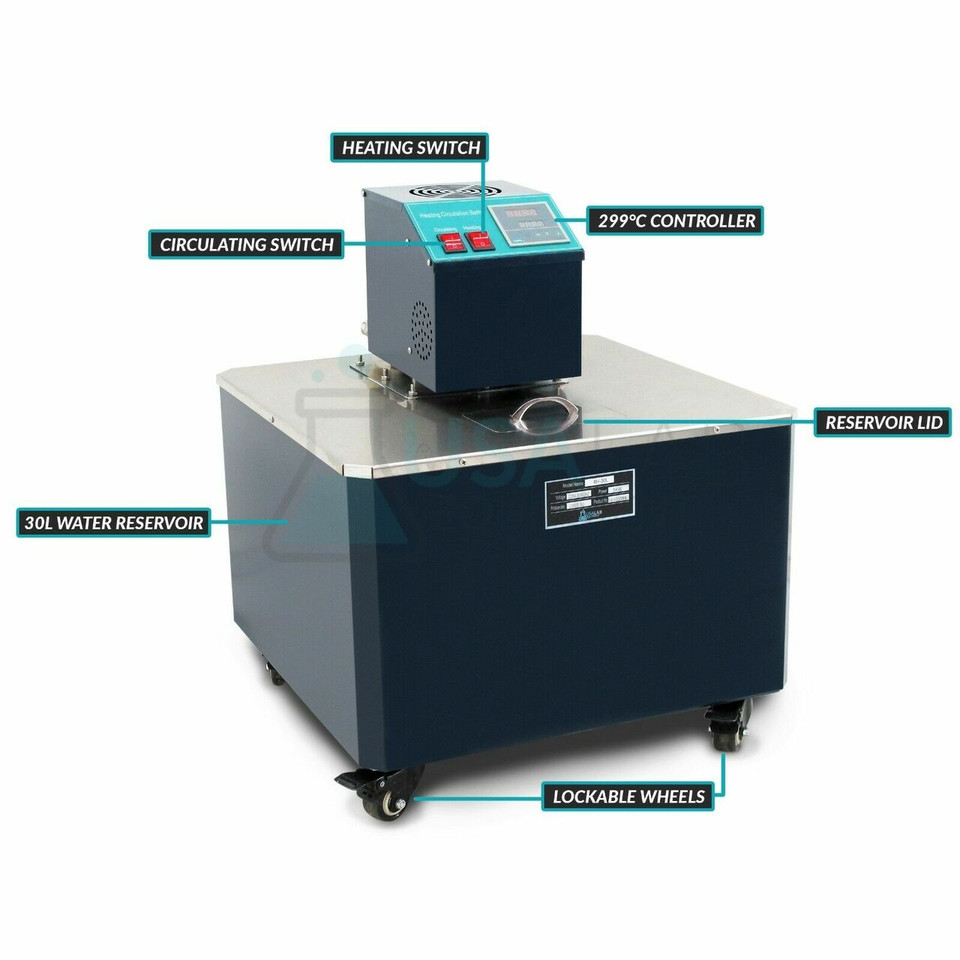

The USA Lab RH-50L Recirculating 200 Heater is built for high flow rates at temperatures of up to 200°C. Upgrade any system with a high temperature heater at an affordable price!
SILICONE OIL ONLY
** Notice **
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT Compaible With 208V Power Input
(Acceptable range: 219V - 253V)
NOT intended for 24-hour operation, maximum operation time is 16 hours.
|
RH-50L Specifications |
|
|
Reservoir Capacity |
50L |
|
Reservoir Dimensions |
20" x 22" x 14" |
|
Temperature Range |
70°C to 200°C |
|
Power Requirements |
220-240V 50-60Hz 40A |
|
Heating Wattage |
7000W / 31.81A |
|
Temperature Accuracy |
+/- 0.2°C |
|
Pump Flow w/ Water |
18.3L/Min |
|
Total Pump Lift |
6m |
|
Connection Size |
3/4" MNPT |
|
Dimensions |
20" x 23.5" x 25.5" |
|
Weight |
87lbs |
|
RH-50L Packing List |
|
|
Item |
Quantity |
|
USA Lab RH-50L 200°C Heater |
1 |
|

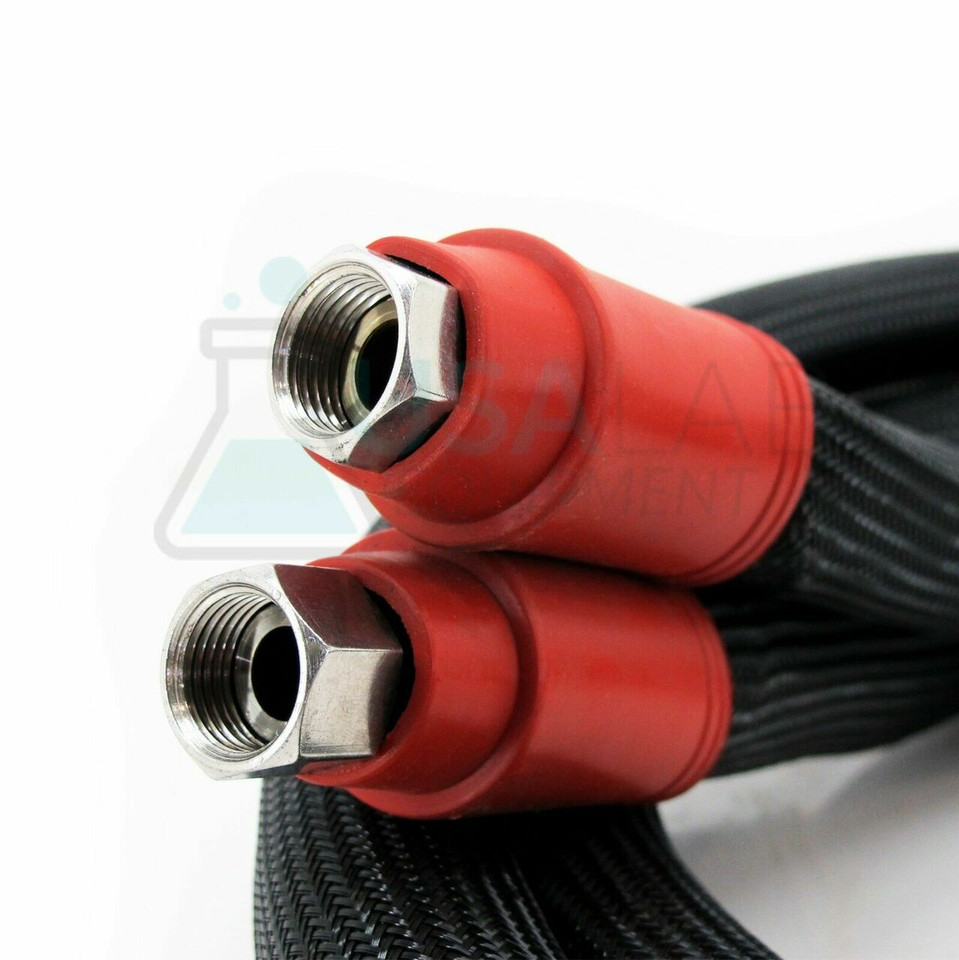

3/4" FNPT Insulated Tubing - 6ft |
2 |
|
32A Fuse |
1 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
