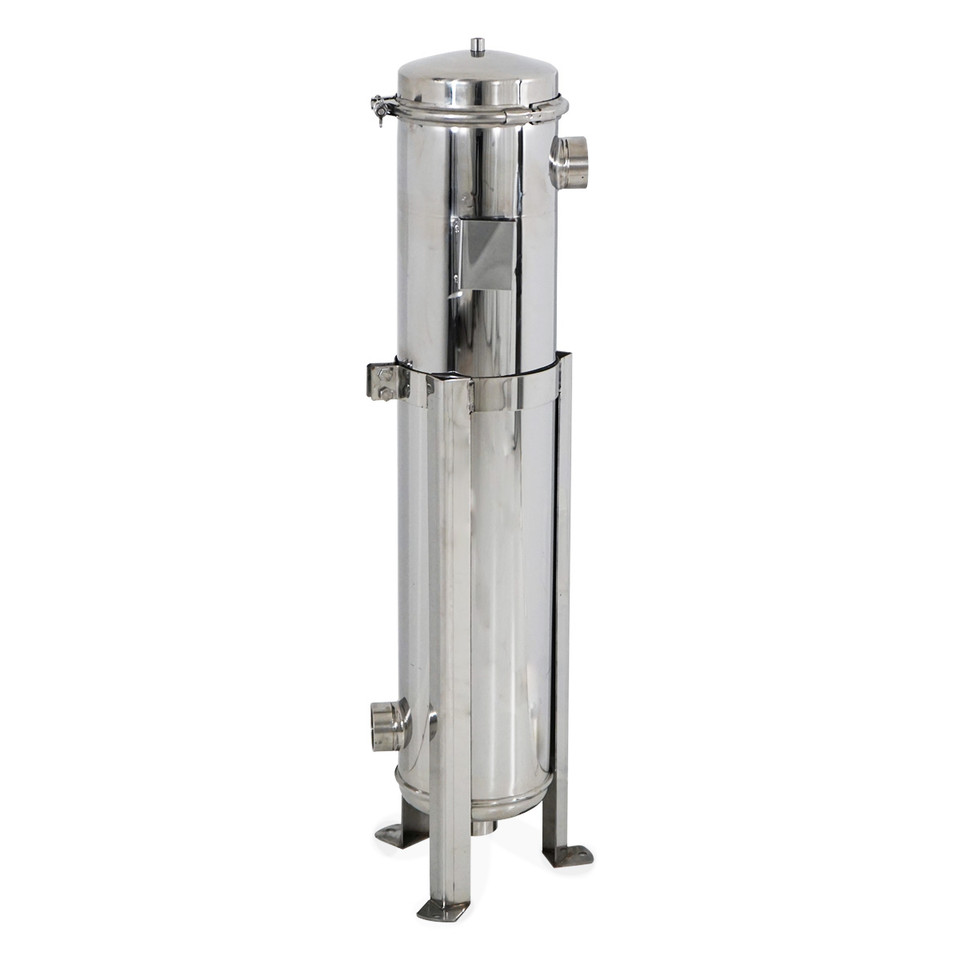

Single Bag Filter Housings are used in low flow applications, where high temperatures and pressures are not required.
This stainless steel bag filter housing has durable SS construction and include a clamp to easily close and seal your housing.
What's Included: Bag Filter Housing & 20um Polyester Felt Bag
|
Specifications |
|
|
Dimensions (LxWxH) |
12" x 8" x 38" |
|
Features |
Height is adjustable from 38" to 52" |
|
Material |
SS304 |
|
Inlet Outlet |
2" NPT |
|
Bag Filter Material |
Polyester felt |
|
Bag Filter Micron |
20 UM |
|
Max Pressure |
87 PSI |
|
Design Temperature |
14 F – 194 F |
|
Filter Volume |
7.40 Gal |
|
Weight |
55lbs |
|

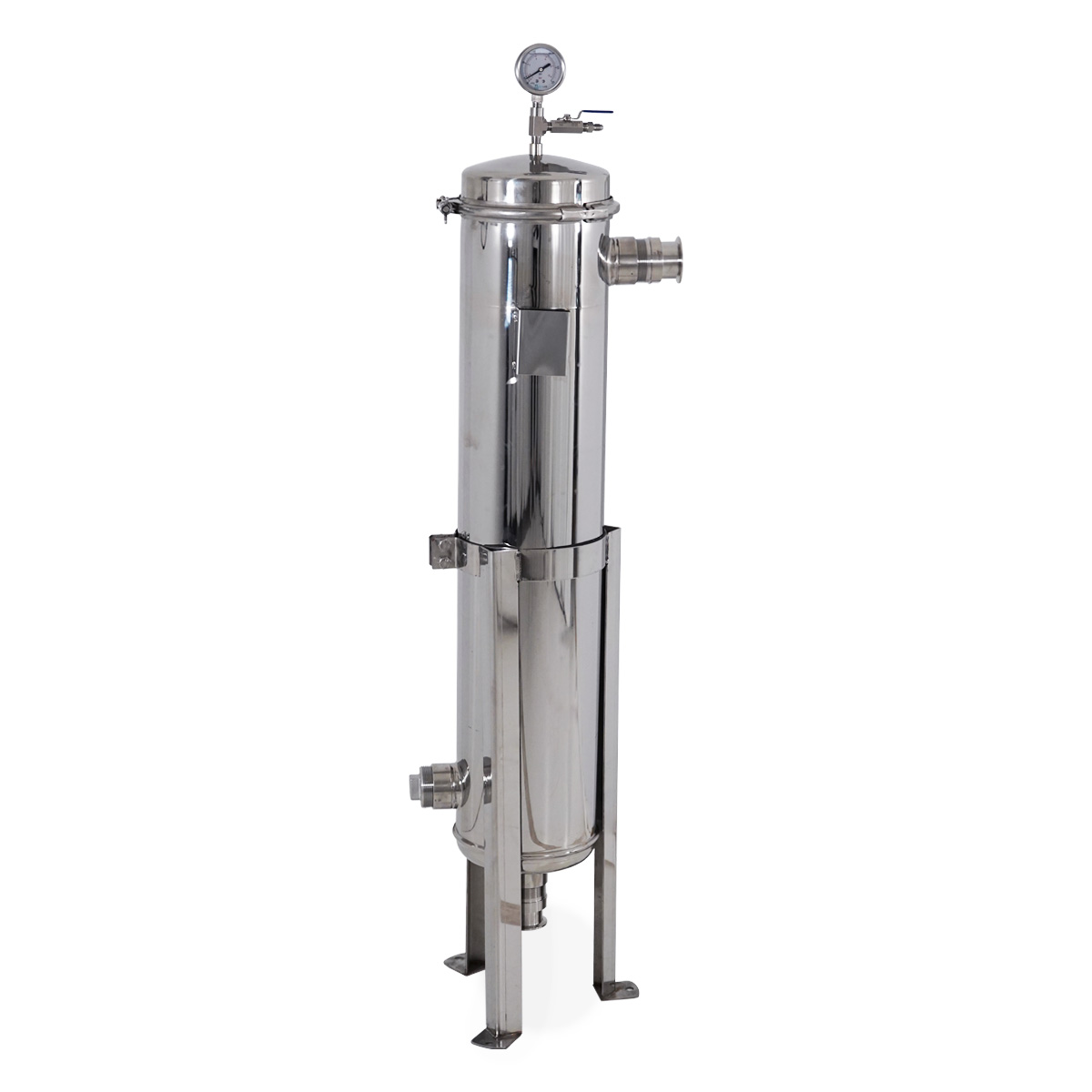

Packing List for Kit |
|
|
Item |
Qty |
|
Steel Bag Filter-BFH-2 |
1 |
|
MxFxF Street Tee 1/4" NPT |
1 |
|
USA Lab Glycerin Compound Gauge- 1/4" |
1 |
|
Superlok 1/4" NPT Ball valve |
1 |
|
MNPT to MJIC 1/4" |
1 |
|
2" MNPT to 2" Tri-Clamp |
2 |
|
2" MNPT Plug |
2 |
