Description

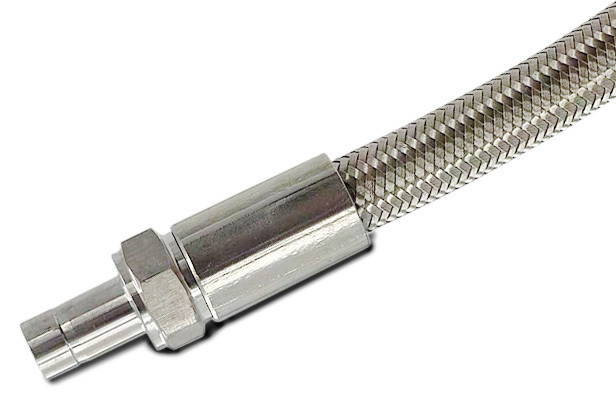

USA Lab 1/4" Compression Tube Stub Stainless Steel Hose - 12", 24", 36", 48", 60", 72", 96", 144"

The USA Lab 1/4" Compression Tube Stub Stainless Steel Hose is a durable, flexible hose assembly designed for laboratory and process applications requiring dependable connections. Available in lengths from 12" to 144", this hose combines a PTFE (Teflon) liner with a braided 304 stainless steel exterior for excellent chemical resistance, durability, and operating flexibility.

The hose features a male tube stub connection and a 304 stainless steel swivel for reliable installation and connection to compatible compression fittings. Its PTFE liner provides excellent chemical resistance while the stainless steel braid adds mechanical protection and durability for demanding laboratory environments.

These hoses are rated for temperatures from -65°F (-54°C) to 450°F (230°C) and pressures up to 1000 PSI. The connection does not require Teflon tape to create a seal. For proper installation and removal, always tighten and untighten the hose using two wrenches.

1/4" Compression PTFE (Teflon) Liner 304 Stainless Steel Braid 1000 PSI 12"–144" Lengths

PTFE Liner: Teflon-lined construction provides excellent chemical resistance for demanding laboratory and process applications.

304 Stainless Steel Braid: Durable braided construction provides mechanical protection and long-term reliability.

Flexible Length Options: Available from 12" through 144" to support different equipment layouts and connection requirements.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab Compression Hose?

PTFE-lined construction — provides excellent chemical resistance and helps support compatibility with demanding process fluids.
304 stainless steel braid — adds durable exterior reinforcement and protection around the flexible PTFE liner.
304 stainless steel swivel — provides a durable connection component for installation with compatible equipment.
High pressure capability — rated up to 1000 PSI for applications requiring robust hose performance.
Wide temperature range — suitable for operating temperatures from -65°F (-54°C) to 450°F (230°C).
Multiple length options — choose from 12", 24", 36", 48", 60", 72", 96", or 144" to match installation requirements.

Talk to an expert

Get product guidance, application support, and compatibility information for your laboratory or process setup.

Call 734-855-4890

Technical Specifications

Specification	Details
Product	USA Lab 1/4" Compression Tube Stub Stainless Steel Hose
Connection	Male Tube Stub
Hose Size	1/4" Compression
Available Lengths	12", 24", 36", 48", 60", 72", 96", 144"
Liner Material	PTFE (Teflon)
Braid Material	304 Stainless Steel
Swivel Material	304 Stainless Steel
Temperature Rating	-65°F (-54°C) to 450°F (230°C)
Pressure Rating	1000 PSI
Chemical Resistance	Excellent
Max Bend Radius	2"
Seal Requirement	Does not require Teflon tape to create a seal
Installation	Tighten and untighten using two wrenches
Exterior Construction	Braided stainless steel
Liner Construction	Flexible PTFE liner
Connection Construction	Stainless steel swivel with male tube stub
Flexibility	Flexible hose construction
Application	Laboratory and process fluid connections
Material Combination	PTFE liner with 304 stainless steel reinforcement

Popular Industries & Use Cases

Laboratory Processing Pharmaceutical Research Chemical Sciences Academic Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right hose and connection components for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What is the USA Lab 1/4" Compression Tube Stub Stainless Steel Hose made from?

The USA Lab 1/4" Compression Tube Stub Stainless Steel Hose uses a PTFE (Teflon) liner, 304 stainless steel braided reinforcement, and a 304 stainless steel swivel.

What lengths are available for the USA Lab 1/4" Compression Tube Stub Stainless Steel Hose?

The USA Lab 1/4" Compression Tube Stub Stainless Steel Hose is available in 12", 24", 36", 48", 60", 72", 96", and 144" lengths.

What are the temperature and pressure ratings of the USA Lab 1/4" Compression Tube Stub Stainless Steel Hose?

The hose is rated for temperatures from -65°F (-54°C) to 450°F (230°C) and has a pressure rating of up to 1000 PSI.

Does the USA Lab 1/4" Compression Tube Stub Stainless Steel Hose require Teflon tape?

No. These hoses do not require Teflon tape to create a seal. For proper installation and removal, the hose should always be tightened and untightened using two wrenches.
