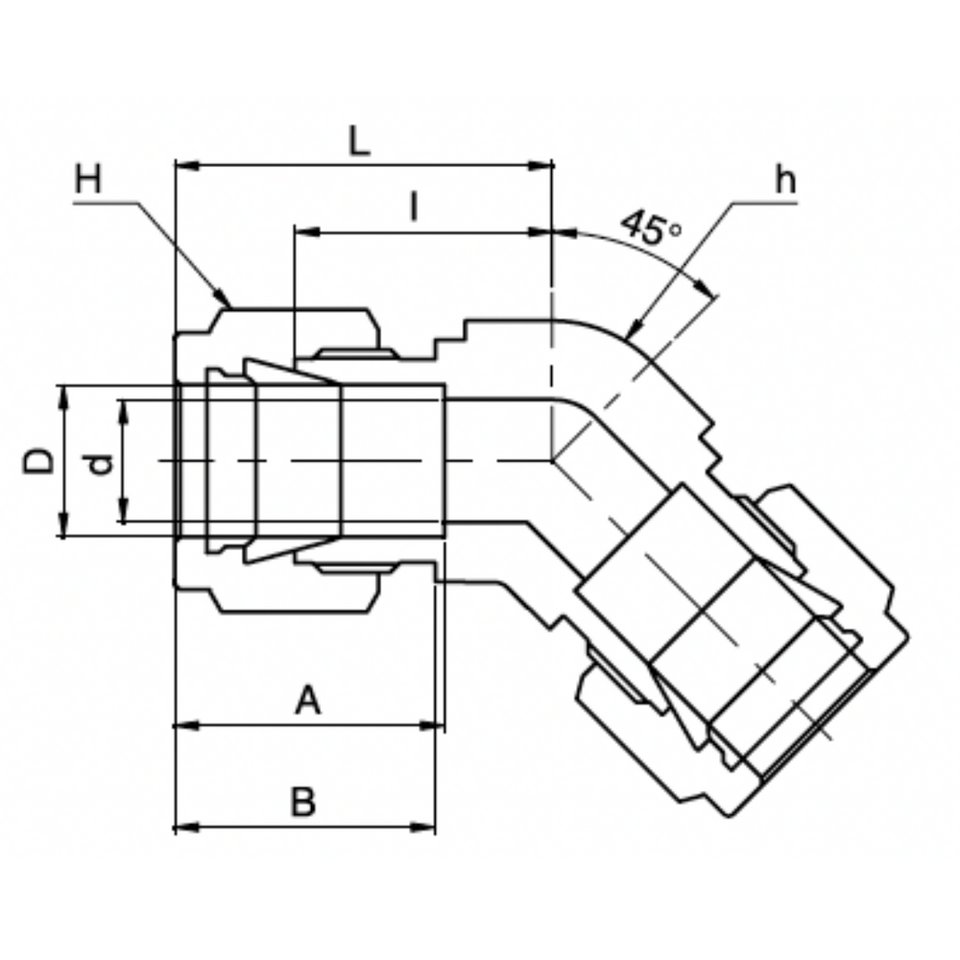

Superlok 1/2" Compression O.D. Tube Union 45-Degree Elbow - SHUE
The Superlok 1/2" Compression O.D. Tube Union 45-Degree Elbow - SHUE is a precision tube fitting designed to create a reliable 45-degree directional connection between compatible 1/2" compression O.D. tubing runs. Its elbow configuration provides practical routing flexibility for instrumentation and process systems where tubing direction needs to change without using multiple straight fittings.
Superlok tube fittings are produced under strict quality control using high-quality raw materials, precision manufacturing, positive material identification (PMI), rigorous testing, and quality assurance procedures. The compression fitting design is engineered for easy tightening and reliable sealing under demanding conditions including shock, vibration, and temperature cycling.
The Superlok SHUE 45-degree elbow features an exceptional internal surface finish designed to reduce particle entrapment and potential contamination while supporting efficient flow of liquids and gases. The four-piece assembly consists of a body, front ferrule, rear ferrule, and nut, providing a dependable connection solution for industrial instrumentation and process applications.
1/2" Compression O.D. Tube 45-Degree Elbow 4-Piece Compression Assembly Superlok Precision Fitting
45-Degree Configuration: provides directional tubing flexibility for compact and organized instrumentation installations.
Compression Connection: supports reliable, leak-resistant tube connections when properly installed and tightened.
Precision Construction: manufactured under strict quality control for demanding industrial and process environments.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this Superlok 45-Degree Elbow?
- Directional tubing flexibility — the 45-degree elbow configuration helps route compatible tubing where a straight connection is not suitable.
- Reliable compression connection — the fitting uses a precision four-piece compression assembly consisting of a body, front ferrule, rear ferrule, and nut.
- Leak-resistant performance — Superlok compression fittings are designed for reliable sealing under shock, vibration, and temperature cycling.
- Enhanced internal surface finish — the smooth internal finish helps reduce particle entrapment and potential contamination while supporting fluid and gas flow.
- Broad industrial use — suitable for instrumentation and process systems used across automotive, aerospace, semiconductor, shipbuilding, petrochemical, and other industrial markets.
Talk to an expert
Get product guidance, application support, and compatibility information for your tubing and instrumentation system.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Superlok 1/2" Compression O.D. Tube Union 45-Degree Elbow - SHUE |
| Brand | Superlok |
| Model / Series | SHUE |
| Product Type | Compression Tube Fitting |
| Fitting Configuration | 45-Degree Elbow |
| Tube Size | 1/2" Compression O.D. Tube |
| Connection Type | Compression Connection |
| Fitting Function | Directional tubing connection |
| Assembly Design | Four-piece precision assembly |
| Assembly Components | Body, front ferrule, rear ferrule, and nut |
| Sealing Performance | Designed for reliable, leak-resistant connections |
| Internal Surface Finish | Exceptional internal surface finish designed to reduce particle entrapment |
| Flow Applications | Liquid and gas service |
| Quality Control | Strict manufacturing and quality assurance procedures |
| Testing Approach | Rigorous testing and quality assurance procedures |
| Material Verification | Positive Material Identification (PMI) |
| Operating Environment | Shock, vibration, and temperature cycling applications |
| Primary Applications | Instrumentation and industrial process systems |
| Industry Applications | Automotive, aerospace, semiconductor, shipbuilding, petrochemical, and other industrial markets |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help identify the right fitting and connection solution for your tubing system.
FAQ
What size tubing does the Superlok SHUE 45-degree elbow fit?
The Superlok SHUE is designed for 1/2" compression O.D. tubing. Confirm the tubing dimensions and connection requirements before installation.
What type of fitting is the Superlok 1/2" SHUE?
The Superlok SHUE is a 45-degree compression tube elbow designed to provide directional tubing connections in instrumentation and industrial process systems.
How many components are included in the Superlok compression fitting assembly?
The Superlok compression fitting design consists of four precision components: a body, front ferrule, rear ferrule, and nut.
What applications are suitable for the Superlok SHUE 45-degree elbow?
The Superlok SHUE is suitable for tubing and instrumentation systems handling liquids and gases, including applications across automotive, aerospace, semiconductor, shipbuilding, petrochemical, laboratory, and other industrial environments.
