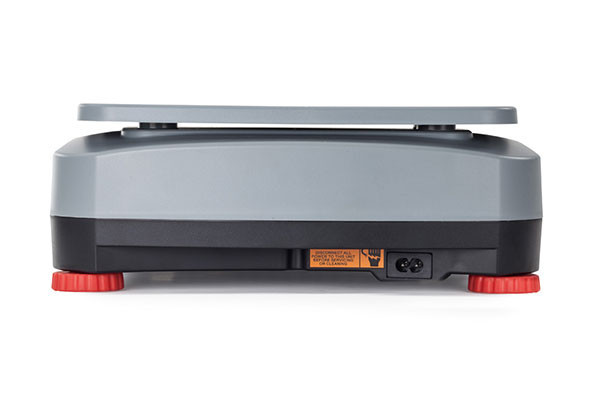

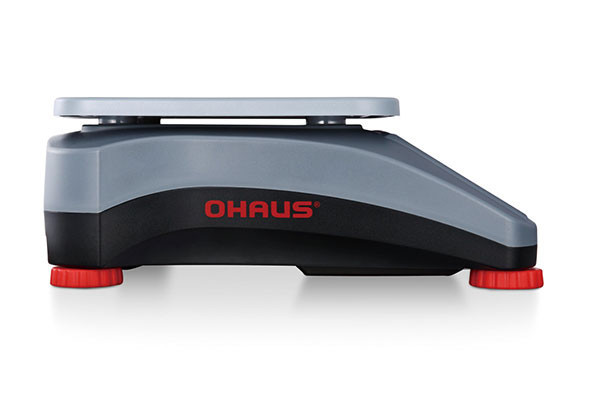

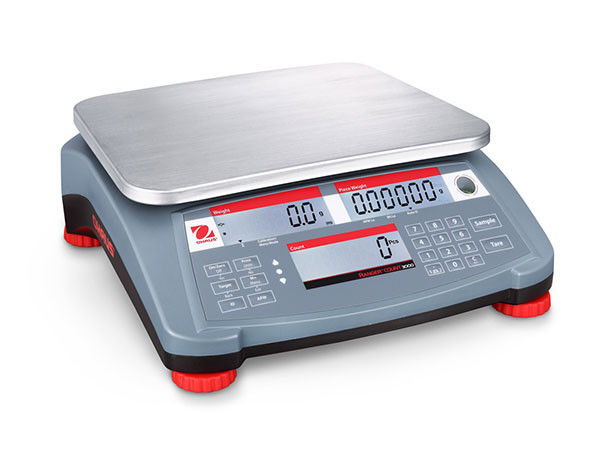

OHAUS Ranger™ Count 3000 RC31P6 AM Counting Scale, 15 lb x 0.0005 lb
The OHAUS Ranger™ Count 3000 RC31P6 AM Counting Scale is designed for precise inventory control, component counting, and batch management. With a 6 kg (13.2 lb) capacity and 0.2 g (0.0005 lb) readability, it delivers accurate counting performance for small to medium parts while maintaining fast stabilization and efficient operation.
A large three-window backlit LCD display allows users to view weight, piece count, and unit information simultaneously. The scale also provides flexible data communication through RS232 connectivity, with optional USB and Ethernet interfaces available for integration into inventory, quality-control, and production workflows.
Built with a stainless steel weighing platform and durable ABS housing, the OHAUS RC31P6 provides dependable performance in industrial environments. Its counting functions, rechargeable battery, and flexible operating modes make it well suited for component inventory, hardware counting, batch preparation, check weighing, and general industrial weighing applications.
6 kg Capacity 0.2 g Readability Three-Window LCD RS232 Connectivity Counting & Check Weighing
Fine Counting Resolution: 0.2 g (0.0005 lb) readability — supports accurate counting of small components and parts.
Clear Three-Window Display: Simultaneous weight, count, and unit information — helps operators monitor counting data quickly.
Flexible Connectivity: RS232 included with optional USB and Ethernet — supports integration with inventory and data-management systems.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this OHAUS Ranger™ Count 3000 RC31P6?
- High-capacity precision counting — 6 kg (13.2 lb) capacity with 0.2 g (0.0005 lb) readability supports accurate small- and medium-part counting.
- Fast and clear operation — three-window backlit LCD displays weight, count, and unit information simultaneously for efficient workflows.
- Durable construction — stainless steel platform and ABS housing provide dependable performance for demanding industrial applications.
- Flexible data communication — standard RS232 connectivity with optional USB and Ethernet interfaces supports system integration and data transfer.
- Versatile weighing functions — supports counting, check weighing, legal-for-trade applications, data communication, and general weighing requirements.
Talk to an expert
Get product guidance, counting-scale recommendations, and integration support for your inventory or production workflow.
Technical Specifications
| Specification | Details |
|---|---|
| Model | OHAUS Ranger™ Count 3000 RC31P6 AM |
| Item Number | RC31P6 AM |
| Brand | OHAUS |
| Maximum Capacity | 6 kg (13.2 lb) |
| Readability | 0.2 g (0.0005 lb) |
| Certified Readability | 2 g (0.005 lb) |
| Platform Size | 300 × 225 mm (11.8 × 8.9 in) |
| Battery Life | 210 Hours with Rechargeable Battery |
| Dimensions | 311 × 327 × 117 mm (12.2 × 12.9 × 4.6 in) |
| Communication | RS232 Included; Optional USB and Ethernet |
| Counting Resolution | 1:1,500,000 Internal Resolution |
| Display | 3-Window Backlit LCD + 3 LED Indicators |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Linearity | ±0.4 g |
| Net Weight | 4.2 kg (9.2 lb) |
| Platform Construction | Stainless Steel |
| Power | AC Power Included; Rechargeable Battery Included |
| Repeatability, Typical | 0.4 g |
| Operating Environment | -10°C to 40°C (14°F to 104°F), 85% RH, non-condensing |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help spec the right counting scale for your workflow.
FAQ
What is the maximum capacity and readability of the OHAUS Ranger Count 3000 RC31P6 AM?
The OHAUS Ranger Count 3000 RC31P6 AM has a maximum capacity of 6 kg (13.2 lb) and a readability of 0.2 g (0.0005 lb), making it suitable for precise counting of small to medium components.
What connectivity options are available on the OHAUS RC31P6 AM?
The scale includes RS232 connectivity and supports optional USB and Ethernet interfaces for integration with inventory, quality-control, and data-management systems.
How does the three-window display help with counting applications?
The three-window backlit LCD allows users to view weight, piece count, and unit information simultaneously, helping operators monitor counting results quickly and efficiently.
What power options and battery life does the OHAUS RC31P6 AM provide?
The OHAUS RC31P6 AM includes AC power and a rechargeable battery. The rechargeable battery provides up to 210 hours of operation, supporting flexible use in production and inventory environments.
