Description

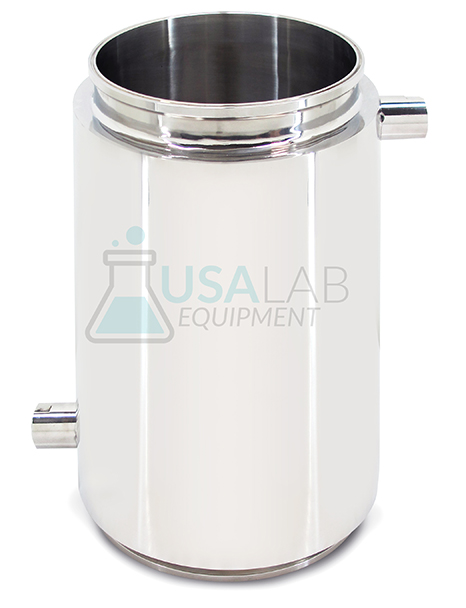

Jacketed Material Column Spool - 6" Tri-Clamp w/ (2) 1/2" FNPT - 6" x 12", 6" x 24", 6" x 36", 6" x 48"

Our USA Lab sanitary SS304 jacketed material column spools feature attached Tri-Clamp fittings on each end for convenient installation. These jacketed spools are designed to help build inline processing units without requiring on-site fabrication, providing a practical solution for assembling larger process systems.

The outer jacket provides insulation while allowing users to circulate fluid through the jacket for temperature management. With two 1/2" FNPT jacket connections and two 6" Tri-Clamp connections, the spool can be integrated into compatible processing and extraction systems using standard connections.

Available in 12", 24", 36", and 48" lengths, the USA Lab jacketed material column spool offers flexible configuration options for different system layouts. The 304 stainless steel construction and attached Tri-Clamp fittings make it suitable for laboratory, extraction, chemical processing, and other applications requiring jacketed inline equipment.

304 Stainless Steel 6" Tri-Clamp 2x 1/2" FNPT Jacket Connections 12"–48" Length Options

Jacketed Design: The outer jacket allows fluid circulation for insulation and temperature management during processing.

Tri-Clamp Connections: Two attached 6" Tri-Clamp connections support convenient integration into compatible inline process systems.

Multiple Lengths: Available in 12", 24", 36", and 48" configurations to support different system layouts.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this Jacketed Material Column Spool?

Jacketed construction — provides an outer jacket for insulation and fluid circulation around the process column.
Attached Tri-Clamp fittings — two 6" Tri-Clamp connections simplify integration into compatible inline processing systems.
304 stainless steel construction — provides a durable stainless steel structure for laboratory and process applications.
No on-site fabrication required — the spool design helps users build inline units using ready-to-connect components.
Multiple length configurations — 12", 24", 36", and 48" options provide flexibility when planning system layouts.

Talk to an expert

Get product guidance, application support, and compatibility information for your laboratory or processing system.

Call 734-855-4890

Technical Specifications

Specification	Details
Model	JS-6X__IN-12NPT
Product Name	Jacketed Material Column Spool - 6" Tri-Clamp w/ (2) 1/2" FNPT
Brand	USA Lab
Product Type	Jacketed Material Column Spool
Construction Material	304 Stainless Steel
Jacket Design	Outer Jacket for Fluid Circulation and Insulation
Jacket Connections	2 x 1/2" FNPT
Tri-Clamp Connections	2 x 6" Tri-Clamp
Large Connection Size	6" Tri-Clamp
Jacket Connection Size	1/2" FNPT
Available Lengths	12", 24", 36", and 48"
6" x 12" Weight	18 lbs.
6" x 24" Weight	32 lbs.
6" x 36" Weight	50 lbs.
6" x 48" Weight	60 lbs.
Connection Configuration	6" Tri-Clamp x 6" Tri-Clamp
Jacket Configuration	2 x 1/2" FNPT Jacket Ports
Primary Function	Inline Jacketed Material Column Assembly
Application	Laboratory, Extraction, Chemical Processing, and Inline Process Systems

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Processing Chemical Processing Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right equipment for your laboratory or processing workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What sizes are available for the USA Lab Jacketed Material Column Spool?

The USA Lab Jacketed Material Column Spool is available in 6" x 12", 6" x 24", 6" x 36", and 6" x 48" configurations.

What connections are included on the jacketed material column spool?

The jacketed material column spool includes two 6" Tri-Clamp connections for the process path and two 1/2" FNPT connections for the outer jacket.

What is the jacket used for on the USA Lab jacketed material column spool?

The outer jacket provides insulation while allowing users to circulate fluid through the jacket for temperature management during compatible processing applications.

What material is the USA Lab Jacketed Material Column Spool made from?

The USA Lab Jacketed Material Column Spool is constructed from 304 stainless steel and features attached Tri-Clamp fittings for convenient inline system integration.

Important Shipping Notice!

DISCLAIMER:

All items are carefully packaged to ensure safe delivery. In the rare event that your item arrives damaged, please notify us within 3 days of receipt. We will promptly provide a replacement or issue a refund.

Please note that any damage occurring after delivery is not covered under warranty. We appreciate your understanding and your trust in our products.

Need Support?

We’ll get you answers fast.

Call 734-855-4890

Specifications

Brand:	USA Lab
Material:	304 Stainless
Jacket Capacity:	~12L (Approx.)
