Description

*Notice: This item is subject to drop ship and may have a extended lead time*

Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an overtemperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.

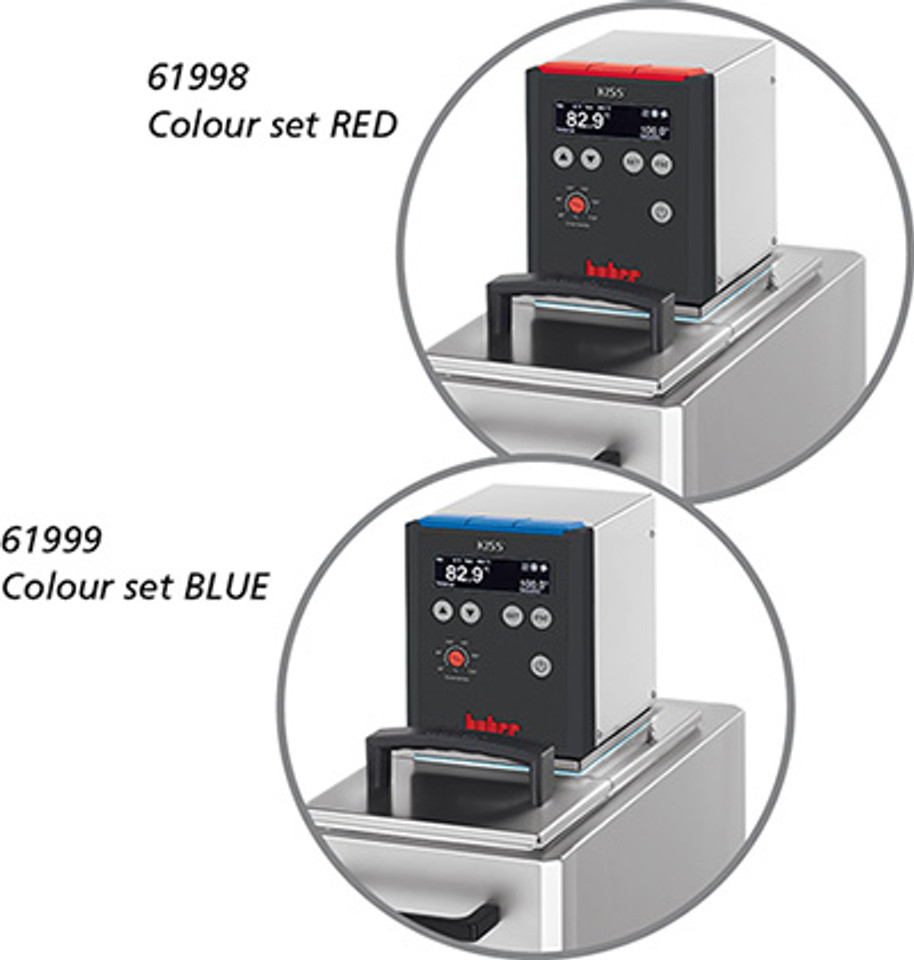

The new Huber KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge)

*KISS 202C DATA Sheet*

KISS 202C Specifications
General information & temperature controller
Temperature range	(-30) 45...200 °C
Temperature stability	±0.05 °C
Temperature display	OLED Display
Alarm message	optical, acoustical
Controller	KISS
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	178 x 260 x 355 mm \| 7.01 x 10.24 x 13.98 inches
Weight	8 kg \| 17.64 pounds
Heating / cooling capacity
Heating capacity	1 - 1,5 kW
Circulation pump
Pressure pump max.	14 lpm ; 0.25 bar \| 3.7 gpm ; 3.62 psi
Suction pump max.	10.5 lpm ; 0.17 bar \| 2.77 gpm ; 2.47 psi
Pump connection	M16x1 AG male
Connections
Digital interface	USB (Device), RS232 interfaces
Operating data
Permissible ambient temp.	5...40 °C
Bath opening W x D / BD	Ø = 25 / 150 mm \| Ø = 0.98 / 5.91 inches
Bath volume	2 Liters \| 0.53 gal
Power supply	100-115V 1~ 50/60Hz
Current max.	15 A
Fusing	15 A

For Technical Support, Questions, or Other Issues Please Email or Call Us!

Specifications

Brand:	HUBER
Temperature Range:	(-30) 45...200 °C
Temperature Stability:	±0.05 °C
Heating Capacity:	1 - 1,5 kW
Pressure pump max:	14 lpm ; 0.25 bar \| 3.7 gpm ; 3.62 psi
Suction pump max.:	10.5 lpm ; 0.17 bar \| 2.77 gpm ; 2.47 psi
Bath Volume:	2 Liters \| 0.53 gal
Power supply:	100-115V 1~ 50/60Hz
Dimensions (W x D x H):	178 x 260 x 355 mm \| 7.01 x 10.24 x 13.98 inches
Weight:	8 kg \| 17.64 pounds
