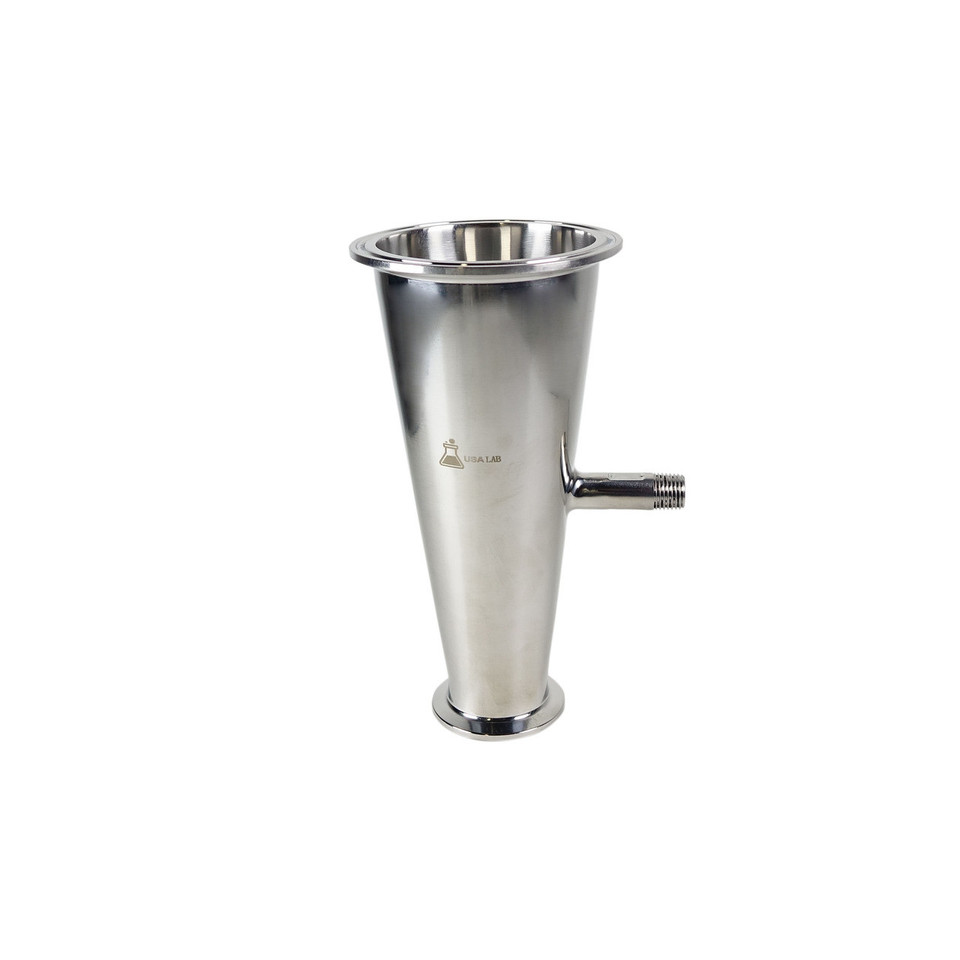

USA Lab Conical Reducer with 1/4" MNPT Side Port - Various Sizes
The USA Lab Conical Reducer with 1/4" MNPT side port provides a practical way to reduce between Tri-Clamp connection sizes without adding unnecessary bulk. Its versatile conical configuration is designed for laboratory, processing, and fluid-handling setups where different connection sizes need to be integrated.
These reducers feature 304 stainless steel construction with Tri-Clamp connections and a 1/4" MNPT side port. Multiple configurations are available, including 1.5" or 2" Tri-Clamp connections reducing to either 3" or 4" Tri-Clamp connections.
With several size combinations and height options, the USA Lab Conical Reducer with 1/4" MNPT side port offers flexible installation options for equipment and process assemblies requiring compact size reduction and an additional threaded side connection.
304 Stainless Steel Conical Reducer Tri-Clamp Connections 1/4" MNPT Side Port
Compact Reduction: reduces between Tri-Clamp connection sizes without adding unnecessary bulk.
304 Stainless Steel: provides durable stainless steel construction for laboratory and processing applications.
Multiple Configurations: available with 1.5" or 2" inlet sizes and 3" or 4" outlet sizes.
Why buy from USA Lab
Expert Support
Engineers & technicians on staff.
Engineers & technicians on staff.
Quality First
Tested and trusted products.
Tested and trusted products.
Fast Fulfillment
Nationwide 1-2 day shipping.
Nationwide 1-2 day shipping.
Warranty & Parts
US-based service & spares.
US-based service & spares.
Why this USA Lab Conical Reducer?
- Compact conical design — allows users to reduce between Tri-Clamp sizes without adding unnecessary bulk.
- 304 stainless steel construction — provides durable construction for laboratory and processing setups.
- Integrated 1/4" MNPT side port — provides an additional threaded connection within the reducer configuration.
- Multiple size combinations — supports 1.5" and 2" Tri-Clamp connections with 3" or 4" Tri-Clamp connections.
- Versatile installation — suitable for assemblies where compact size reduction and an additional side connection are required.
Talk to an expert
Get product guidance, application support, and compatibility information for your process or laboratory setup.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HR-4TO12FNPT |
| Product Name | USA Lab Conical Reducer with 1/4" MNPT Side Port |
| Material | 304 Stainless Steel |
| Connection Type | Tri-Clamp x Tri-Clamp x MNPT |
| Reducer Type | Conical |
| Side Port Size | 1/4" MNPT |
| Side Port Type | Male National Pipe Thread |
| Available Configurations | CR1.5x3, CR2x3x5, CR1.5x4, CR2x4 |
| Small Tri-Clamp Size | 1.5" or 2" |
| Large Tri-Clamp Size | 3" or 4" |
| 1.5 x 3 Configuration | 1.5" Tri-Clamp to 3" Tri-Clamp with 1/4" MNPT Side |
| 2 x 3 Configuration | 2" Tri-Clamp to 3" Tri-Clamp with 1/4" MNPT Side |
| 1.5 x 4 Configuration | 1.5" Tri-Clamp to 4" Tri-Clamp with 1/4" MNPT Side |
| 2 x 4 Configuration | 2" Tri-Clamp to 4" Tri-Clamp with 1/4" MNPT Side |
| Height - 1.5 x 3 | 7" |
| Height - 2 x 3 | 5" |
| Height - 1.5 x 4 | 11" |
| Height - 2 x 4 | 9" |
| Primary Function | Tri-Clamp Size Reduction with 1/4" MNPT Side Connection |
Popular Industries & Use Cases
Business Solutions & Procurement
Programs & Terms
Exclusive options for businesses and academics.
Documentation & Compliance
Keep purchasing streamlined and compliant.
Custom Solutions
Tailored equipment and integration help.
Talk to Sales
We’ll help confirm the right reducer configuration for your application.
FAQ
What material is the USA Lab Conical Reducer made from?
The USA Lab Conical Reducer is constructed from 304 stainless steel.
What connection types are available on the USA Lab Conical Reducer?
The USA Lab Conical Reducer uses Tri-Clamp x Tri-Clamp x MNPT connections and includes a 1/4" MNPT side port.
What sizes are available for the USA Lab Conical Reducer?
The USA Lab Conical Reducer is available in configurations connecting 1.5" or 2" Tri-Clamp sizes to either 3" or 4" Tri-Clamp sizes, with a 1/4" MNPT side port.
What height options are available for the USA Lab Conical Reducer?
Available heights are 7" for the 1.5" to 3" configuration, 5" for the 2" to 3" configuration, 11" for the 1.5" to 4" configuration, and 9" for the 2" to 4" configuration.
