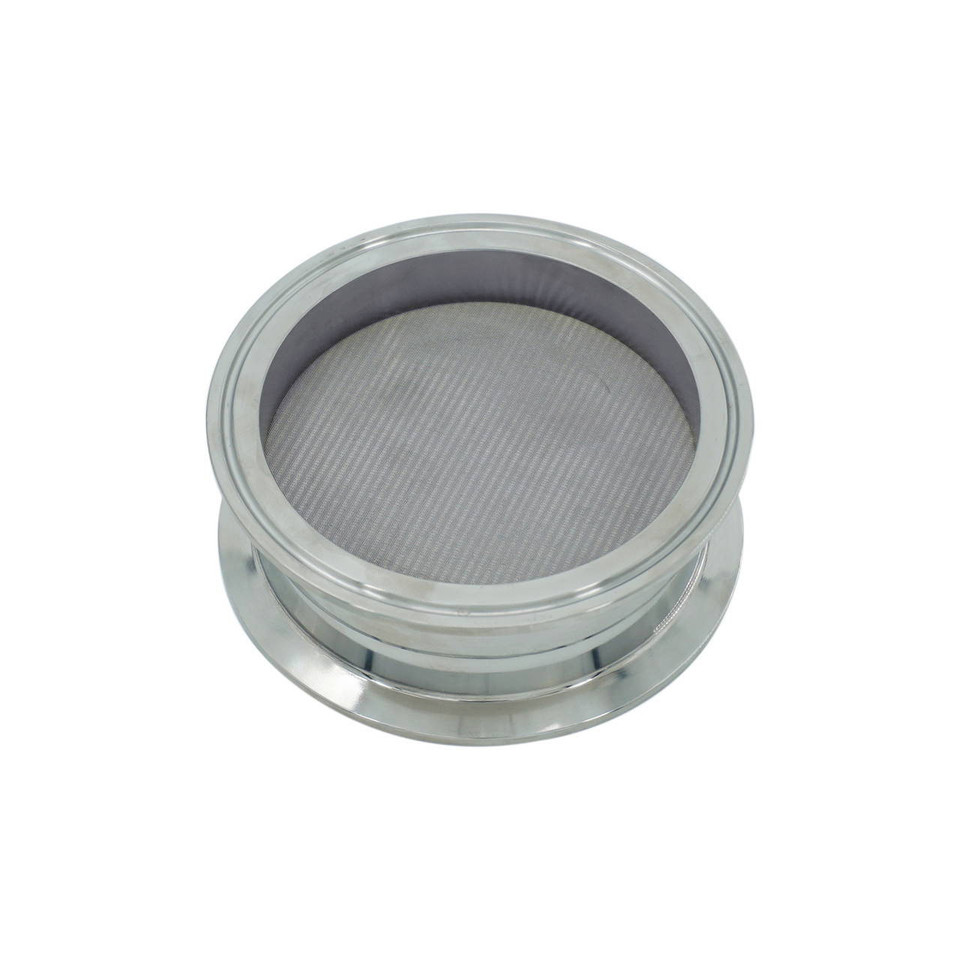

USA Lab Sintered Filter Disk - 316 Stainless Steel - Various Micron Sizes

The USA Lab Sintered Filter Disk provides finer filtration during extraction and post-extraction processes. The sintered disk is welded between two ferrules and supported by a crisscross bottom plate and welded top ring to create a secure, integrated filtration assembly.

The sintered filtration layer is constructed with a protected 316 stainless steel layer above and below the selected filtration media. Available micron sizes include 0.5µm, 1µm, and 5µm, providing options for different filtration requirements while helping protect and prolong the life of the filter disk.

The USA Lab Sintered Filter Disk is designed for directional flow and has a differential pressure rating of 50 PSI across the sinter. Because the sinter is directional, the support structure must oppose the direction of flow to provide proper support during operation.

316 Stainless Steel Sinter 0.5–5µm Filtration 50 PSI Differential Rating Various Tri-Clamp Sizes

Fine Filtration: Available in 0.5µm, 1µm, and 5µm options — supports finer filtration during extraction and post-extraction processes.

316 Stainless Steel Sinter: Protected by 316 stainless steel layers — helps prolong the service life of the filter disk.

Directional Flow: 50 PSI differential pressure rating across the sinter — requires the support structure to oppose the direction of flow.

Why buy from USA Lab

Expert Support
Engineers & technicians on staff.

Quality First
Tested and trusted products.

Fast Fulfillment
Nationwide 1-2 day shipping.

Warranty & Parts
US-based service & spares.

Why this USA Lab Sintered Filter Disk?

Fine filtration options — available in 0.5µm, 1µm, and 5µm configurations for finer filtration requirements.
316 stainless steel sinter — the filtration disk uses a protected 316 stainless steel layer construction above and below the sintered media.
Integrated support structure — the sintered disk is supported by a crisscross bottom plate and welded top ring.
Secure welded construction — the sintered disk is welded between two ferrules to form a true seal.
Directional filtration design — the sinter is designed for directional flow and requires the support to oppose the flow direction.

Talk to an expert

Get product guidance, application support, and compatibility information for your filtration or extraction workflow.

Call 734-855-4890

Technical Specifications

Specification	Details
Product Name	USA Lab Sintered Filter Disk
Product Type	Sintered Filter Disk
Disk Material	316 Stainless Steel
Ferrule Material	304 Stainless Steel
Micron Size	0.5µm, 1µm & 5µm
Pressure Rating	50 PSI differential across sinter
Maximum Low Temperature	-80°C
Size	Various Tri-Clamp sizes
Flow Direction	Directional flow
Sinter Support	Support must oppose flow direction
Filtration Application	Extraction and post-extraction filtration
Construction	Welded sintered disk assembly
Ferrule Configuration	Welded between two ferrules
Bottom Support	Crisscross bottom plate
Top Protection	Welded ring and protected 316 stainless steel layer
Filter Layer	Sintered filtration media
Filter Layer Protection	316 stainless steel layer above and below the sinter
Weight	Varies
Seal Type	True seal formed by welded construction

Popular Industries & Use Cases

Botanical Extraction Pharmaceutical Processing Chemical Processing Laboratory Research

Business Solutions & Procurement

Programs & Terms

Exclusive options for businesses and academics.

Apply for Net Terms Academic Discount

Documentation & Compliance

Keep purchasing streamlined and compliant.

Request a Quote Tax Exemption

Custom Solutions

Tailored equipment and integration help.

Custom Request Consulting

Talk to Sales

We’ll help spec the right filtration equipment for your laboratory workflow.

Call 734-855-4890 Email Sales/Support

FAQ

What micron sizes are available for the USA Lab Sintered Filter Disk?

The USA Lab Sintered Filter Disk is available in 0.5µm, 1µm, and 5µm filtration options.

What materials are used in the USA Lab Sintered Filter Disk?

The sintered disk uses 316 stainless steel, while the ferrules are made from 304 stainless steel.

What is the pressure rating of the USA Lab Sintered Filter Disk?

The USA Lab Sintered Filter Disk has a 50 PSI differential pressure rating across the sinter. Flow is directional, and the sinter support must oppose the direction of flow.

What applications are suitable for the USA Lab Sintered Filter Disk?

The USA Lab Sintered Filter Disk is designed for finer filtration during extraction and post-extraction processes and is available in various Tri-Clamp sizes.
