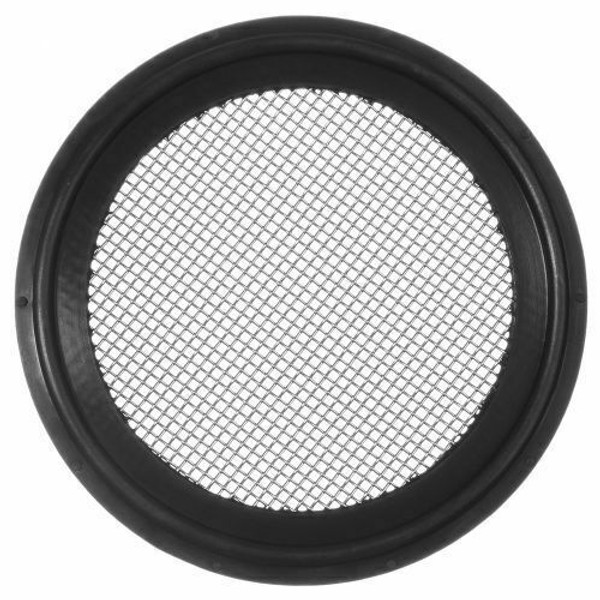

USA Made Buna-n Gasket w/ Mesh - FDA Compliant - 1.5" to 6" - 5 Micron - 300 Micron
$20.00 - $140.00These USA Made Buna-n Gasket w/ Mesh is Approved by the FDA. The gaskets are made of Buna-N and have a 316 Stainless Steel 5 to 300 Micron Mesh Overmold. We recommend no more than a -40F operating temperature and is not responsible for the user running... -
Buna-n Gasket with 300 Mesh & (50 Micron) - Various Sizes
USA LabBUNA300MESH$10.00 - $15.00Buna-N Tri-Clamp Gaskets are one of the best gaskets for closed loop systems due to it's excellent resistance to butane and propane. This Buna-N Gasket is rated for lower temperatures than viton, as well as better physical properties. With the 300 mesh... -
Buna-n Gasket with 100 Mesh & (150 Micron) - Various Sizes
USA LabBUNA100MESH$10.00 - $15.00This Buna-N Tri-Clamp Gasket is one of the best gaskets for closed loop systems due to it's excellent resistance to butane and propane. Buna Gaskets are rated for lower temperatures than viton, as well as better physical properties. With the mesh... -
Buna-n Gasket with 150 Mesh (100 Micron) - Various Sizes
USA LabBUNA150MESH$10.00 - $15.00Buna-N Tri-Camp Gaskets are one of the best gaskets for closed loop systems due to it's excellent resistance to butane and propane. Buna Gaskets are rated for lower temperatures than viton, as well as better physical properties. With the mesh... -
Buna-n Gasket with 50 Mesh (300 Micron) - Various Sizes
USA LabBUNA50MESH$10.00 - $15.00Buna-N Tri-Clamp Gaskets are one of the best gaskets for closed loop systems due to it's excellent resistance to butane and propane. Buna Gaskets are rated for lower temperatures than viton, as well as better physical properties. With the 300 micron... -
Buna-n Gasket with 2500 Mesh (5 Micron) - Various Sizes
USA LabBUNA2500MESH$10.00 - $20.00Buna-N (Nitrile) Tri-Clamp Gaskets are one of the best gaskets for closed loop systems due to its excellent resistance to butane and propane. Buna-N Gaskets are rated for lower temperatures than Viton, as well as better physical properties. With... -
Buna-n Gasket with 550 Mesh (25 Micron) - Various Sizes
USA LabBUNA550MESH$10.00 - $22.00Buna-N Tri-Clamp gaskets are one of the best gaskets for closed loop systems due to it's excellent resistance to butane and propane. This Buna-N Gasket is rated for lower temperatures than viton, as well as better physical properties. With the mesh it... -
USA Lab Flexi-Steel Tri-Clamp Gaskets
USA Lab$7.00 - $180.00.usalab-prod{--accent:#13a8b6;--ink:#0f1b2d;--muted:#64748b;--card:#f7f9fc;--ring:#e6ecf2;font-family:inherit} .usalab-prod *{box-sizing:border-box} .usalab-prod h2,.usalab-prod h3{margin:0 0 .5rem;color:var(--ink);line-height:1.2} .usalab-prod... -
150 Mesh
USA LabMESH150$7.00 - $30.00This 150 mesh (100 Micron) is ideal for a wide variety of screening and filtering applications. Stainless steel metal mesh will not corrode, keeps uniform openings, and will out perform our competitors products. Plastic and fabric meshes degrade over... -
USA Lab PTFE Envelope Tri-Clamp Gaskets with Viton Filler - 1.5" to 12" - USA Made - FDA Compliant
USA LabUSA-PTFE-V$5.00 - $99.99USA Lab PTFE Envelope Tri-Clamp Gaskets are the only choice when needing extreme chemical resistance and temperature range. These gaskets are extremely unique in their construction because they have a Viton filler for compressibility surrounded by... -
USA Lab FKM Viton Tri-Clamp Gaskets - FDA Compliant - USA Made
USA LabUSA-FKM-$3.00 - $75.00.usalab-prod{--accent:#13a8b6;--ink:#0f1b2d;--muted:#64748b;--card:#f7f9fc;--ring:#e6ecf2;font-family:inherit} .usalab-prod *{box-sizing:border-box} .usalab-prod h2,.usalab-prod h3{margin:0 0 .5rem;color:var(--ink);line-height:1.2} .usalab-prod... -
USA Lab PTFE Tri-Clamp Gaskets- 1.5" to 12" - USA Made - FDA Compliant - 1.5" to 12"
USA LabUSA-PTFE$2.99 - $89.99.usalab-prod{--accent:#13a8b6;--ink:#0f1b2d;--muted:#64748b;--card:#f7f9fc;--ring:#e6ecf2;font-family:inherit} .usalab-prod *{box-sizing:border-box} .usalab-prod h2,.usalab-prod h3{margin:0 0 .5rem;color:var(--ink);line-height:1.2} .usalab-prod...
Tri-Clamp Gaskets From USA Lab
FDA-Compliant Seals for Reliable Connections
Gaskets are the small parts that make a big difference. They provide the seal between tri-clamp fittings, keeping your system leak-free, sanitary, and compliant. At USA Lab, you'll find a complete selection of Buna-N and PTFE gaskets, with or without mesh inserts, so you can match your gasket choice to your exact process.
Designed for Hygienic, Leak-Free Systems
FDA-Compliant Materials
Available in Buna-N and PTFE to provide safe, reliable sealing for food, beverage, and laboratory applications.
Mesh Insert Options
Offered with fine mesh inserts ranging from 5 to 300 microns, allowing you to filter particulates directly at the gasket seal for cleaner flow.
Wide Size Range
Designed to fit a variety of setups, with tri-clamp connection sizes from 1.5" up to 12" for small- to large-scale systems.
Compare Gasket Options
| Model | Material | Mesh/Micron Rating | Size Range | Features |
|---|---|---|---|---|
| Buna-N Mesh Gaskets (FDA-Compliant) | Buna-N + stainless mesh | 5 µm (2500 mesh) 25 µm (550 mesh) 50 µm (300 mesh) 100 µm (150 mesh) 150 µm (100 mesh) 300 µm (50 mesh) |
1.5"–12" | Filters particulates directly at the seal; FDA-compliant Buna-N base |
| Buna-N Solid Gaskets | Buna-N (FDA-compliant) Buna-N Standard |
— | 1.5"–12" | Sanitary seals for food, beverage, and lab use |
| PTFE Gasket | PTFE (FDA-compliant) PTFE Standard |
— | 1.5"–12" | Ideal for solvent-heavy applications |
| PTFE Envelope Gaskets (Viton Filler) | PTFE + Viton | — | 1.5"–12" | Combines PTFE's chemical resistance with Viton's flexibility for a more durable seal |
Practical and Low-Maintenance
- Flexible choices — Pick from standard Buna-N, PTFE, or mesh gaskets for specific needs.
- Reusable design — Durable materials hold up to repeated cleaning cycles.
Match the Right Gasket to Your Work
- Filtering out fine particulates? → Choose a Buna-N mesh gasket (5–300 micron options).
- Need a simple, FDA-compliant seal? → Use a standard Buna-N gasket.
- Working with harsh solvents? → Select a PTFE gasket for chemical resistance.
- Want both strength and flexibility? → Go with a PTFE envelope gasket with Viton filler.
Why Choose USA Lab Gaskets
- Selection of FDA-compliant Buna-N and PTFE options.
- Mesh gasket options with micron ratings for inline filtration.
- Wide size availability for standard tri-clamp connections.
- U.S.-based support and fast shipping.
Equipment That Works With Your Gaskets
Pair your gaskets with other USA Lab tri-clamp components to build a complete system:
- Tri-clamps to secure gaskets and fittings tightly in place
- Mixing vessels and tanks for building sealed processing setups
- Buchner funnels using mesh gaskets for trapping particulates
- Reactors to keep high-pressure or solvent systems leak-free
