Secrets to Mastering the Vacuum Purge: Process for Cleaner Extracts

Modern extraction systems pull out most solvents quickly, but those last traces demand careful attention. Get it right, and you'll have a clean, flavorful extract. Get it wrong, and you risk harsh residuals or degraded quality.

This isn't about fancy equipment. It's about understanding the fundamentals – how heat, pressure, and time work together to remove solvents while preserving what matters most.

The difference between mediocre and exceptional extracts comes down to mastering these details.

What Is a Vacuum Purge?

A vacuum purge is a controlled post-extraction process that removes residual solvents (like butane or propane) from cannabis concentrates by applying negative pressure within a sealed environment.

Unlike atmospheric purging (which relies on heat and time alone), vacuum purging leverages fundamental physics, specifically, the reduction of boiling points under a vacuum, to efficiently eliminate solvents while preserving sensitive compounds.

Why Is Vacuum Purging Essential for Extracts?

In hydrocarbon extraction, vacuum purging is the critical process determining whether your final product is safe, stable, and market-ready. Here's why professionals never skip proper vacuum purging:

Compliance and Consumer Safety

Residual solvent limits are strictly regulated (typically <5,000 ppm for butane). Proper vacuum purging reduces solvents to undetectable levels (<100 ppm in lab tests). Keeping residuals below these thresholds prevents potential irritation when extracts are inhaled.

Terpene and Cannabinoid Preservation

Traditional heat purging destroys most volatile terpenes. Vacuum purging, however, preserves almost all of the monoterpenes (like limonene and pinene). Purging also maintains a full cannabinoid profile by preventing decarboxylation at high temperatures.

Product Stability and Shelf Life

Well-purged extracts stay fresher longer. Removing solvents helps prevent texture changes and separation over time. For best results, store purged extracts in airtight containers away from heat and light.

Equipment Needed for Vacuum Purging

Achieving professional purge results requires more than just a vacuum chamber and pump. Here's the complete toolkit for consistent, compliant purging:

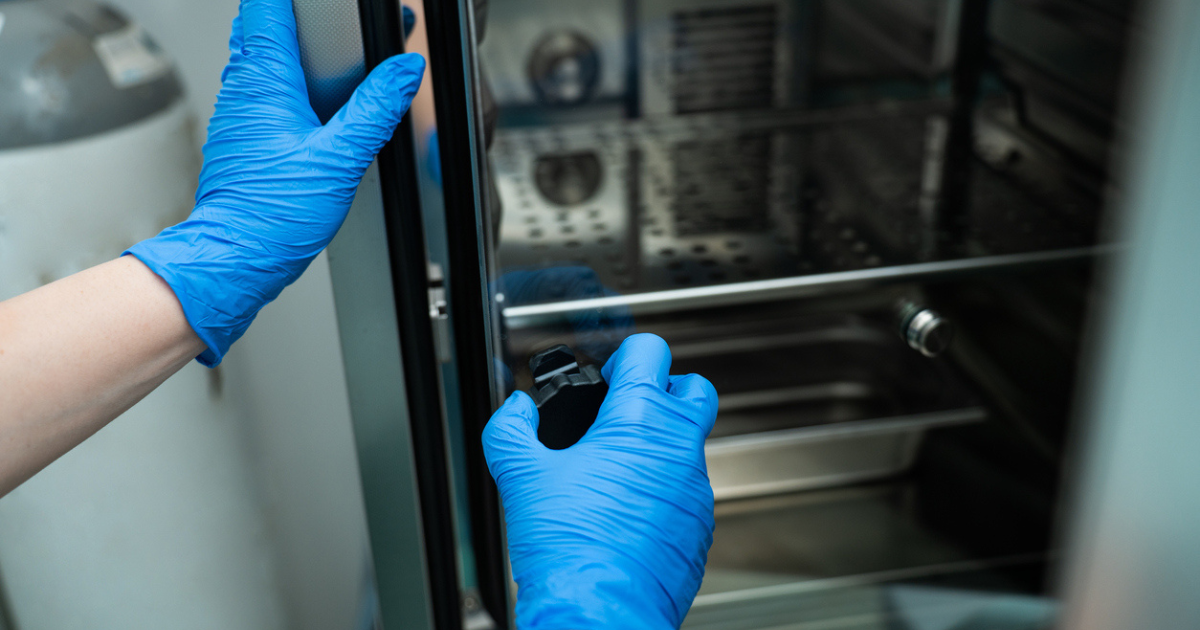

Vacuum Oven

The foundation of any vacuum purging system is a robust, airtight vacuum oven constructed from materials capable of withstanding negative pressure.

Stainless steel chambers offer superior durability. The chamber size should be carefully selected based on the volume of material being processed and the capacity of the vacuum pump.

Vacuum Pump

Choosing an appropriate vacuum pump is critical for system performance.

Rotary vane pumps provide reliable service for most applications, while oil-free diaphragm pumps are preferable when contamination must be avoided. The pump's capacity must properly match the chamber volume for efficient evacuation within reasonable timeframes.

Pressure Control

Accurate pressure monitoring is achieved through either analog or digital vacuum gauges.

These instruments should display readings in standard units (mmHg, psi, or bar) and be regularly calibrated to maintain measurement accuracy. Many operators benefit from installing both primary and secondary gauges for redundancy.

Seals, Gaskets, and Clamps

An airtight seal is necessary to maintain vacuum integrity.

High-quality O-rings, silicone gaskets, or reinforced seals prevent leaks, while clamps or locking mechanisms secure the chamber lid. The choice of sealing material depends on chemical compatibility and pressure resistance.

Vacuum Hose or Tubing

Durable vacuum hoses or chemical-resistant tubing connect the pump to the chamber, ensuring efficient air evacuation.

Reinforced rubber or PTFE tubing is often used to prevent collapse under vacuum pressure and resist degradation from gases or solvents.

Relief Valve or Vent

A safety relief valve or vent is installed to prevent excessive pressure buildup when reintroducing gas into the chamber.

This ensures safe operation, especially during multiple purging cycles, by allowing controlled pressure release if needed.

The Vacuum Purge Process

Achieving perfect purging requires methodical execution. Follow this laboratory-tested procedure for consistent, compliant results:

Preparation

• Load extract evenly in the chamber (3-5mm thickness max)
• Confirm all seals and connections are secure
• Set heating to 95-105°F (35-40°C) if using thermal assistance

Pro Tip: Pre-warm your chamber before loading to prevent condensation

Vacuum Pull

• Start pump and gradually reach full vacuum (-25 to -29 inHg)
• Watch for initial bubbling (this is solvent release)
• Maintain for 15-30 minutes until violent bubbling subsides

Controlled Purging

• Slowly release vacuum using needle valve
• Flip the extract to expose new surfaces
• Repeat vacuum cycles 3-5 times as needed

Key Sign: Extract should stop rising/bubbling when vacuum is applied

Finishing

• Final purge at a slightly higher temp (100-110°F) if needed
• Gradually return to atmospheric pressure

Troubleshooting Common Issues

Even with the best techniques, problems can occur. Here’s how to fix them:

Extract Won’t Stop Bubbling

• Possible Cause: Too much residual solvent or moisture.
• Solution: Extend purge time, lower heat slightly, and maintain proper vacuum strength.

Extract Is Too Runny or Sticky

• Possible Cause: Under-purging or excess lipids/waxes.
• Solution: Increase purge time, winterize if necessary, and check for proper vacuum seal.

Extract Is Overly Brittle or Shatters Too Easily

• Possible Cause: Too much heat or over-purging.
• Solution: Reduce temperature slightly and shorten purge time in future runs.

Residual Solvents Still Detected in Lab Tests

• Possible Cause: Inconsistent vacuum, poor flipping technique, or insufficient purge time.
• Solution: Verify vacuum pump efficiency, flip more frequently, and extend purge duration.

Best Practices for Safe and Effective Vacuum Purging

For optimal results while maintaining safety, follow these best practices:

• Always Use Proper Ventilation: Solvent fumes can be hazardous. Work in a well-ventilated area or use an explosion-proof setup.
• Gradual Increase in Vacuum: Don't rush the process by immediately pulling a full vacuum. Start slowly and gradually increase the vacuum level. This helps prevent the extract from bubbling over and thoroughly removes solvents.
• Regularly Check Equipment: Before each use, inspect your vacuum pump, chamber, and all connecting hoses and seals for any signs of wear or damage. Regular maintenance prevents leaks and failures during the purging process.
• Maintain Proper Temperature: Keep temperatures within the optimal range to ensure solvents evaporate effectively without damaging the sensitive terpenes and cannabinoids in your extract.
• Monitor Pressure Closely: Use a vacuum gauge to accurately monitor the pressure inside the chamber. Lower pressures help solvents evaporate at lower temperatures,
• Store Extracts Properly Post-Purge: Use airtight, UV-resistant containers to preserve terpenes and prevent degradation.
• Use Appropriate Containers: Place extracts on non-stick silicone mats or parchment paper inside the vacuum chamber to avoid contamination and ensure easy removal post-purge.
• Document Your Progress: Track purge times, temps, and vacuum levels to refine your technique over time.

From Crude to Clean

Mastering the vacuum purge takes patience, precision, and practice, but the payoff is worth it: cleaner, smoother, and more potent extracts that stand out in quality.

By following these steps, controlling heat, maintaining strong vacuum pressure, and monitoring closely, you’ll consistently produce top-tier concentrates.
