TestEquity FH5 High Performance Oven is engineered to meet the most critical temperature requirements. They are designed for continuous drying operations at temperatures up to 306°C. Factory-set overtemperature protection prevents control failure from damaging contents and guards against burnout. The Watlow controller is capable of a 40 step ramp and soak profile, or 4 files with 10 steps per file. Time and temperature are displayed in a three-digit LED readout for fast and accurate setting. Horizontal air flow provides fast heat-up and recovery and ensures rapid drying. Heated air is continuously circulated by twin turbo blowers. Blowers also circulate air to motor bearings to prolong motor life. The stainless steel shelves are adjustable. Adjustable air intake and exhaust ports can be opened for fast drying of high-moisture content samples.
A high temperature gasket door seal eliminates air leakage and ensures longer gasket life while being subjected to extreme operational temperatures. This unit includes long-lasting, low-watt density heating elements. It also has adjustable heavy-duty hinges and a door latch that are designed for lifetime service.

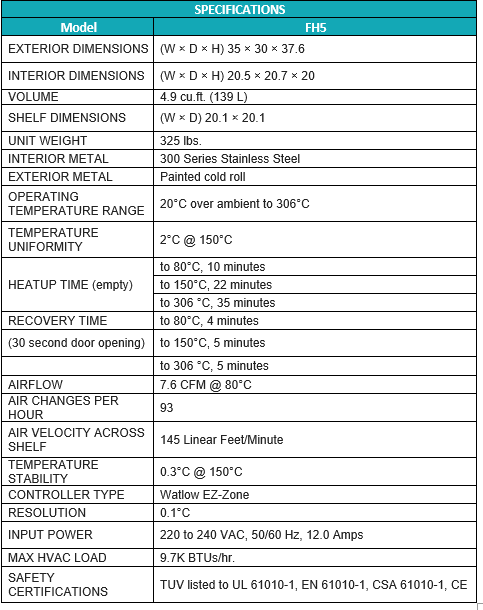

Painted cold roll
300 Series Stainless Steel
7.6 CFM @ 80°C
0.3°C @ 150°C
220 to 240 VAC, 50/60 Hz, 12.0 Amps
TUV listed to UL 61010-1, EN 61010-1, CSA 61010-1, CE
