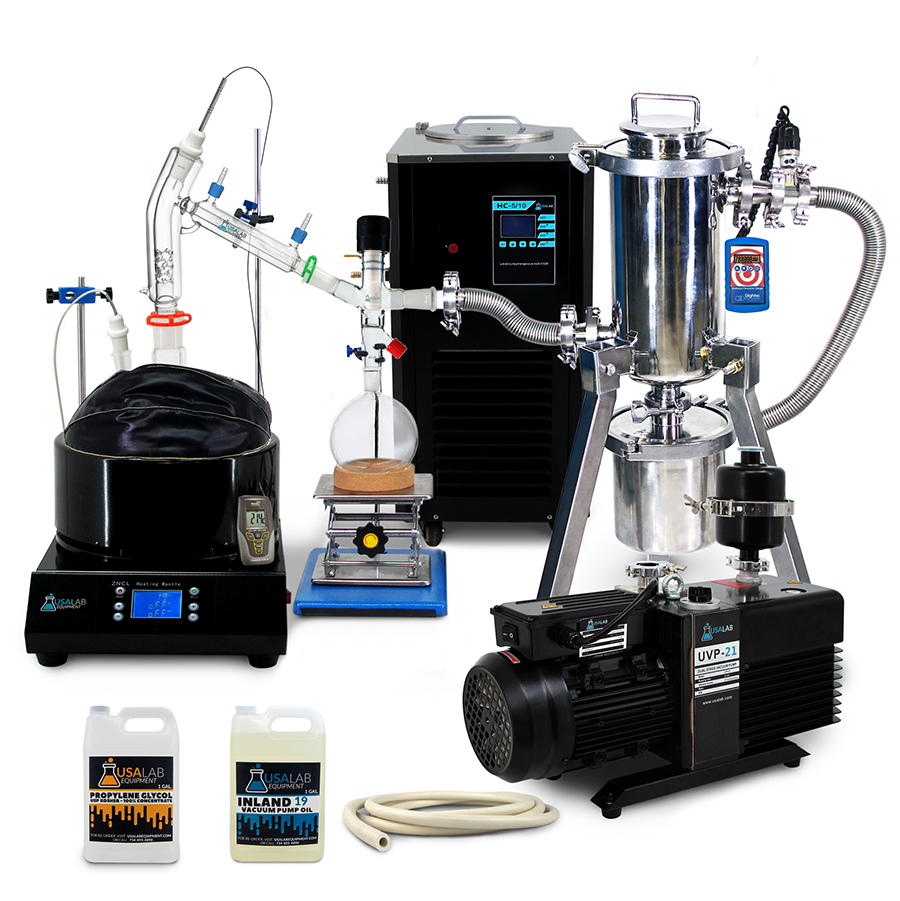

USA Lab Premium 5L Turn Key Short Path Distillation Kit w/ Stainless Cold Trap

USA Lab Premium 5L Turn Key Short Path Distillation Kit w/ Stainless Cold Trap

No reviews yet Write a Review
$8,799.00
SKU:
PSPD5LSSTK
UPC:
Does not apply
Condition:
New
Shipping:
Calculated at Checkout
Model:
PSPD5LSSTK
MPN:
PSPD5LSSTK
Brand:
USA Lab Equipment

New

Our 5L Premium Turn Key Short Path Distillation Kit is made with 3.3 Borosilicate glass and a specially designed head to allow for excellent distillation at a great value. Each glassware kit comes with a USA Lab -10°C to 99°C Heater Chiller, USA Lab UVP-21 21 CFM Vacuum Pump and our Stainless steel R2TRAP2 Cold trap for maximum volatile catching.

This kit is designed for high production and consistent results. Don't spend all your money on overpriced distillation kits. Get started right away at a fraction of the cost

THIS KIT INCLUDES THE FOLLOWING:
•USA Lab Premium 5L Short Path Distillation Kit with ZNCL-TS-5000Heating Mantle
•USA Lab 5L thermal shield
•Digivac Vacuum gauge
•1x 12" KF25 Bellow Hose
•1x 36" KF25 Bellow Hose
•KF25 to KF25 w/ 1/8" FNPT for Gauge
•R2TRAP2 Stainless Steel Cold trap
•Thomas Scientific Thermometer Probe
•USA Lab 5L -10°C to 99°C Heater Chiller
USA Lab UVP-21 21 CFM Vacuum Pump
•10Ft Vacuum Hose
•12Ft Water Line
•Adapters for Water Line
•1 Gal of USA Lab Inland 19 Vacuum Pump Oil
•1 Gal of USA Lab Propylene Glycol
•USA Lab Vacuum Grease 3oz.



ZNCL-TS-5000 SPECIFICATIONS

Capacity: 5L / 5000mL

Power Requirements: 110V - 15A - 60Hz

Speed Range: 100-2500 r/min

Motor Power: 40W, DC14-24V

Temperature Range: 0-380°C

Heating Power: 180-2200W

Temperature Accuracy: ±1°C

Insulation Max Temp Resistance: 450°C

•Temperature Control Type: Intelligent

•Dimensions: 17" x 12" x 10"

•Weight: 11lbs





PSPD5LSS PACKING LIST

1x: 5L 110V 380°C ZNCL-TS-5000 Stirrer Heating Mantle

1x: 5L Fractional Distillation Head

1x: 5L 2 Neck Boiling Flask - 34/45 & 24/40

1x: 250mL Triple Cow Receiver with Vacuum Port

3x: 500mL 1 Neck Round Bottom Flask - 24/40

1x: Isolation Adapter

1x: Thermal shield

1x: 24/40 PTFE 5mm Thermometer Adapter

1x: 24/40 PTFE 3.5mm Thermometer Adapter

1x: 24/40 Stopper

1x: 14/20 Stopper

10x: GL-14 Connection

10x: 24/40 Plastic Keck Clamp

1x: 34/45 Plastic Keck Clamp

4x: 24/40 Stainless Steel Keck Clamp

2x: Cork Stands

1x: 8"x8" Jack Stand

2x: 10"x6"x27" Lab Stand

2x: Boss Head Clamp

1x: 3-Finger Adjustable Clamp 0-70mm

1x: 40-145MM Chain Clamp

1x: 100MM Ring Clamp






Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.


UVP-21 SPECIFICATIONS

Electrical Requirements: 220V 15A 1100W Single Phase

•Pumping Flow Rate: 21 CFM

Ultimate Vacuum without Gas Ballast: 0.3 Micron

Ultimate Vacuum with Gas Ballast: 6 Micron

•Oil Volume: 2 Liter / 2.1 Quart

•Recommended Oil: Inland 19

•Inlet/Outlet Connection: KF25

•Motor Speed: 1720 rpm

Noise Level: <58 dB

•Working Temperature: 5-40°C

•Weight: 94Lbs

•Warranty: 2 Years



UVP-21 PACKING LIST

•USA Lab UVP-21 21cfm Vacuum Pump: 1pc

•Oil Mist Filter: 1pc

•KF25 Clamp: 2pcs

•KF25 Centering Ring: 2pcs

•KF25 to 3/8" barb: 1pc

•User Manual: 1pc


Our R2TRAP2 Stainless Steel cold trap set-up is perfect for applications where you need durable vapor collection to protect your vacuum pump. Each cold trap has an inner 4" x 10" chamber for dry ice that is attached to a 6" TC connection that can be easily removed and cleaned. Each side has an adapter from 1.5" TC to KF25 for full bore SPD setups. This setup also comes with a 24/40 to KF25 adapter, and each side has KF25 clamps and centering rings for easy set-up.

Upgrade your cold traps today and protect your pumps with the R2TRAP2 dual cold trap setup.


R2TRAP2 SINGLE SPECIFICATIONS

Material: 304 Stainless Steel

Side Connections: 1.5" TC (1.5" to KF25 Included)

•Top Connection: 6" TC (4" for Cold trap Lid)

Bottom Connection: 1.5" TC





R2TRAP2 PACKING LIST

6" x 12" Main Cold trap with 1.5" Triclamp ports

1pcs

4" x 10" Inside cold trap for dry ice

1pcs

1.5" TC to 6" TC Flat Reducer

1pcs

6" x 6" TC spool with welded round Base (Collection)

1pcs

4" TC Lid with Handle

1pcs

1.5" Buna-N Gasket

3pcs

6" Buna-N Gasket

2pcs

1.5" Standard Pressure Tri-clamp

3pcs

6" Standard Pressure Tri-clamp

2pcs





1.5" TC to KF25

2pcs

KF25 to 24/40 PTFE

1pc

KF25 Clamp

2pcs

KF25 Centering Ring

2pcs

Cold Trap Legs

3pcs

Bolts, Nuts, and Split Washer

3pcs



For Technical Support, Questions, or Other Issues Please Email or Call Us!

ships on a pallet
L48" x W32" xH55"   330 lbs


PSPD5LSSTK MASTER PACKING LIST

•USA Lab 5L ZNCL-5000 Black Heating Mantle

1pc

•USA Lab UVP-21 21CFM Vacuum Pump

1pc

•USA Lab Vacuum Filter

1pc

•USA Lab HC-5/10 Heater Chiller

1pc

•5L Short Path Glass Box (Remove 1L RBF + Cold Trap)

1pc

•5L Short Path Accessories Box

1pc

•USA Lab Isolation Adapter

1pc

•USA Lab 5L Thermal Shield

1pc

•Digivac Bullseye Vacuum Gauge

1pc

•Thomas Scientific Thermometer

1pc

•PTFE 24/40 5MM Thermometer Adapter

1pc

•PTFE 24/40 3.5MM Thermometer Adapter

1pc

•1/4" Tube to 1/2" Tube Adapter

2pcs

•1 Gal. Glycol

1pc

•1 Gal. Inland 19

1pc

•10ft Vacuum Hose

1pc

•KF25 Bellow Hose 12"

1pc

•KF25 Bellow Hose 36"

1pc

•KF25 Clamp

4pc

•KF25 Centering Ring

4pc

•KF25 to KF25 w/ 1/8" FNPT for Gauge

1pc

•1.5" TC to KF25 Reducer

2pcs

•1.5" Buna gasket

3pcs

•6" Buna Gasket

2pcs

•1.5" LP Clamp

3pcs

•6" LP Clamp

2pcs

•6" TC with Welded Base

1pc

•6" to 1.5" TC Flat Reducer

1pc

•6" x 12" Outter cold trap assembly

1pc

•6" TC inner cold trap assembly

1pc

•4" Lid with handle

1pc

•Legs with Bolts and nuts

3pcs

•Apiezon Vacuum Grease

1pc

•Boss Head Clamp Extra

2pcs

•3 Prong Clamp Extra

2pcs

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!





For Technical Support, Questions, or Other Issues Please Email or Call Us!
