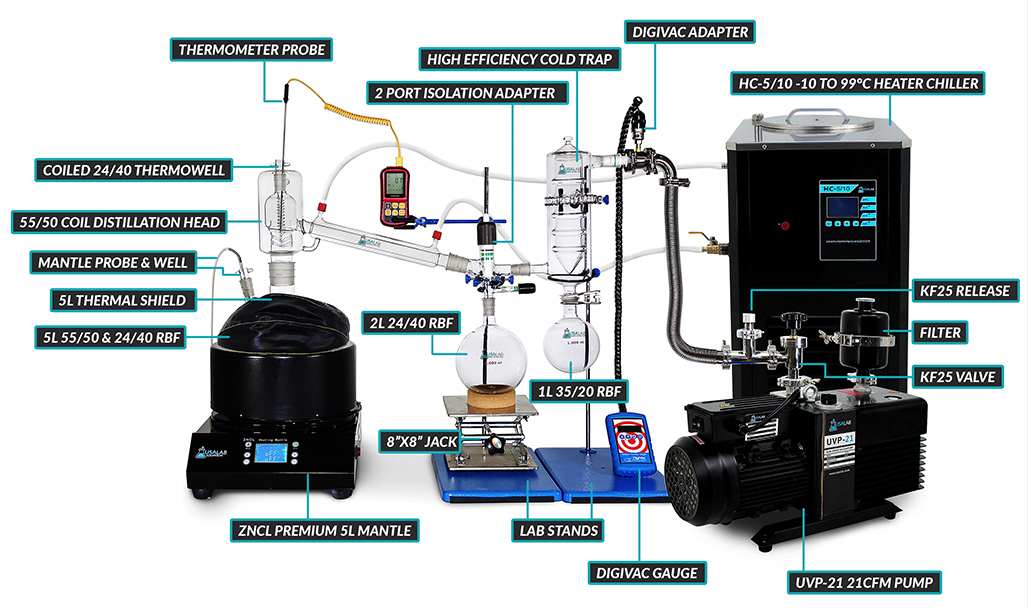

Our Premium 5L Short Path Distillation Kit APSPD5L-C2 is our second iteration of our high quality USA Made Glass and a specially designed head to allow for excellent distillation at a great value. This kit is designed for high production and consistent results

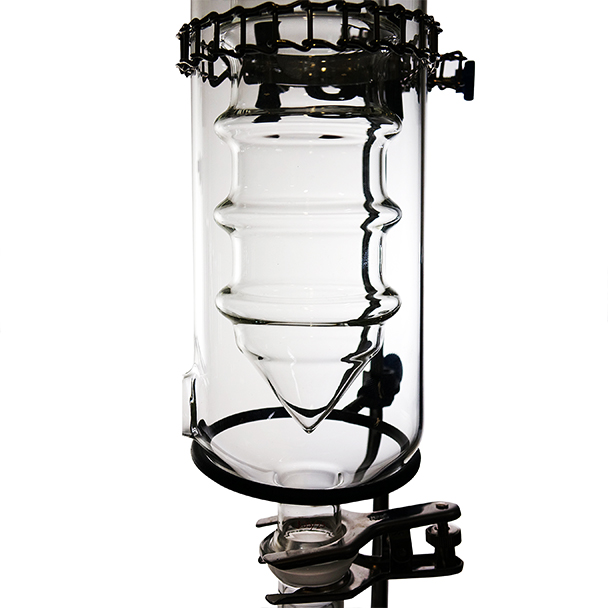

This distillation kit comes with a wide 55/50 joint head allowing for faster flow, a coiled thermowell, and a 34/45 vacuum take-off adapter with two valves to allow for easy switching of receiving flasks and larger condensing rates. Our specially designed ripple cold trap also allows for more surface area and an S35/20 joint for ease of use.
With our 5L comes a USA Lab 5L -10°C to 99°C heater chiller for your condenser and a USA Lab UVP-21 21CFM vacuum pump for deep, high CFM vacuum. Each comes equipped with inline vacuum reading with the high precision Digivac Bullseye Gauge as well as full bore vacuum rates.
Upgrade your system today with our high quality USA made glass and USA Lab equipment.


1x: USA Lab 5L (6L) 110V ZNCL-5000ML Heating Mantle

1x: USA Lab 5L HC-5/10 -10°C to 99°C Heater Chiller

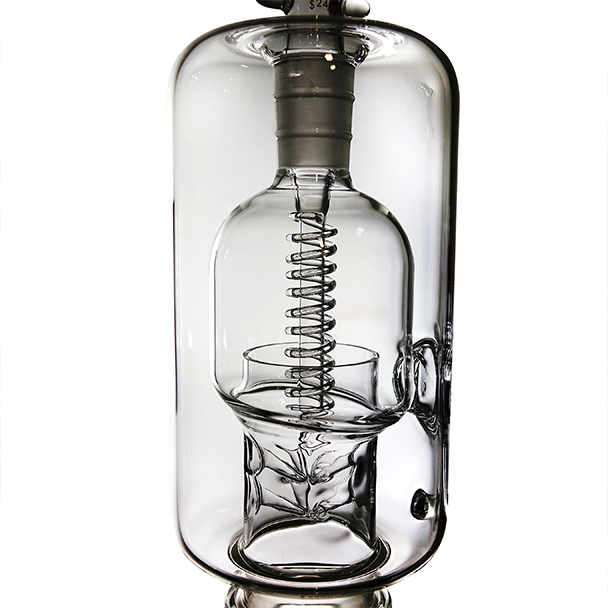

1x: (USA Made) 6L 55/50 Coil Fractional Distillation Head

1x: (USA Made) 6L 2 Neck Boiling Flask - 55/50 Main - 24/40 Side

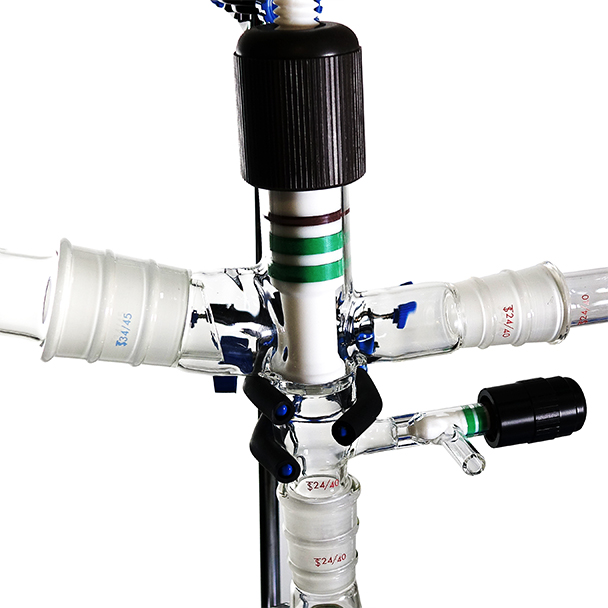

1x: (USA Made) 34/45 Isolation Adapter to 24/40 outlets

2x: (USA Made)1000mL 1 Neck Round Bottom Flask - 24/40

1x: (USA Made)2000mL 1 Neck Round Bottom Flask - 24/40

• 1x: (USA Made) High EfficiencyDewar Cold Trap - S35/20

• 1x: (USA Made)Lid for Cold Trap

• 1x: (USA Made) 1000mL 1 Neck Round Bottom Flask - S35/20

1x: (USA Made)24/40 Thermowell for 5L Flask

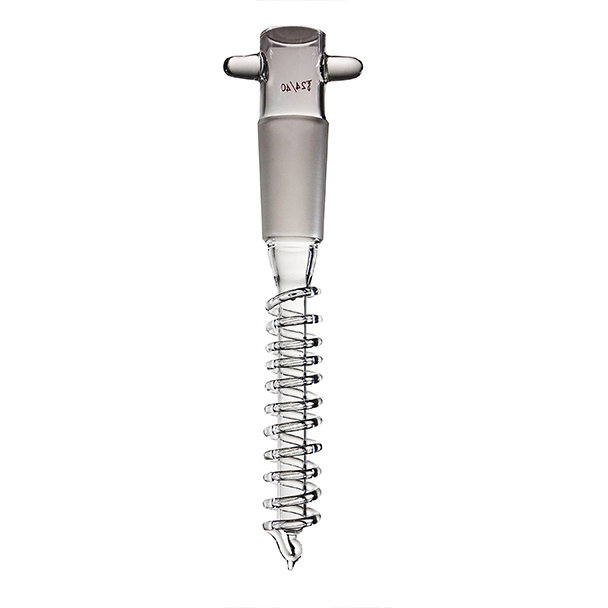

1x: (USA Made) 24/40 Coiled Thermowell for 5L Head

2x: (USA Made) GL-14 Connection

1x: USA Lab 5L Thermal Shield

1x: Digivac Bullseye Vacuum Gauge

1x: Thermometer with 2 ports

1x: 250mL - 1000mL Cork Stand

1x: S35/20 Clamp

1x: 8"x8" Jack Stand

2x: 15"x10"x27" Lab Stand

4x: Boss Head Clamp

3x: 3-Finger Adjustable Clamp 0-70mm

1x: 40-145MM Chain Clamp

1x: 100MM Ring Clamp

1x: KF25 Right Angle Valve

1x: KF25 Pressure Release Valve

1x: KF25 to 1/8" FNPT to KF25 Adapter for Digivac Gauge

1x: KF25 36" Bellow Hose

7x: KF25 Clamp

7x: KF25 Centering Ring

1x: KF25 3-way Tee

1x: KF25 90° Bend

2x: KF25 to 24/40 PTFE Adapter

1x: 1 Gallon of Propylene Glycol

1x: 1 Gallon of Inland 19 Vacuum Pump Oil

1x: High Quality Apiezon 501 Vacuum Grease

Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.
• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.


Electrical Requirements: 220V 15A 1100W Single Phase

•Pumping Flow Rate: 21 CFM

Ultimate Vacuum without Gas Ballast: 0.3 Micron

Ultimate Vacuum with Gas Ballast: 6 Micron

•Oil Volume: 2 Liter / 2.1 Quart

•Recommended Oil: Inland 19

•Inlet/Outlet Connection: KF25

•Motor Speed: 1720 rpm

Noise Level: <58 dB

•Working Temperature: 5-40°C

•Weight: 94Lbs

•Warranty: 2 Years



•USA Lab UVP-21 21cfm Vacuum Pump: 1pc

•Oil Mist Filter: 1pc

•KF25 Clamp: 2pcs

•KF25 Centering Ring: 2pcs

•KF25 to 3/8" barb: 1pc

•User Manual: 1pc

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!



For Technical Support, Questions, or Other Issues Please Email or Call Us!
