USA Lab Premium 12L Short Path Distillation Turnkey Kit - USA Made Glass

USA Lab Premium 12L Short Path Distillation Turnkey Kit - USA Made Glass

No reviews yet Write a Review
$14,899.00
SKU:
APSPD12L
UPC:
Does not apply
Condition:
New
Shipping:
Calculated at Checkout
Non-Domestic Product:
No
Model:
APSPD12L
Modified Item:
No
Custom Bundle:
No
MPN:
APSPD12L
Brand:
USA Lab

New

Our Premium 10L Full Bore Short Path Distillation Kit is made with high quality USA Made Glass and a specially designed 100mm 4" 4 way shelf head to allow for excellent distillationhigh production and consistent results

This distillation kit comes with a 34/45 molecular magnet thermowell, a 24/40 vacuum take-off adapter to allow for easy switching of receiving flasks, a jumbo cold trap for large amounts of condensing, and full bore attachments to allow for high pulling vacuum.

With our 12L comes a USA Lab 5L -10°C to 99°C heater chiller for your condenser and a USA Lab UVP-21 21CFM vacuum pump for deep, high CFM vacuum.

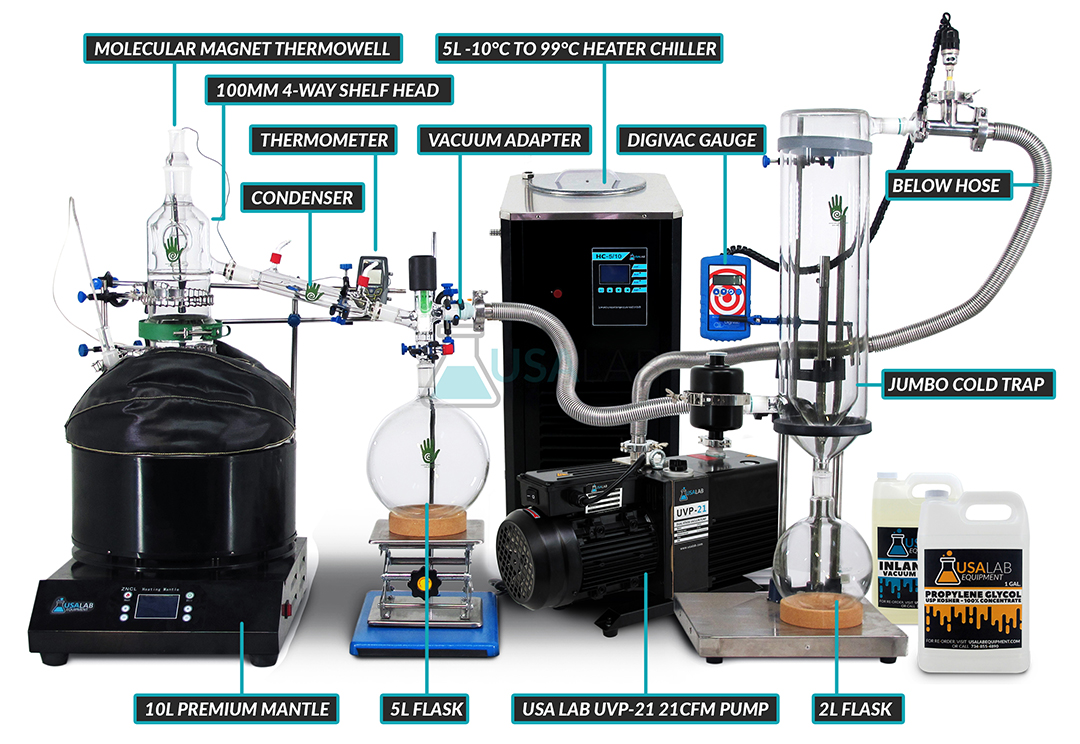

APSPD12L PACKING LIST

1x: USA Lab 10L 110V 380°C ZNCL-TS-10000 Stirrer Heating Mantle

1x: USA Lab UVP-21 21CFM Vacuum Pump 220V 15A w/ Mist Filter

1x: USA Lab 5L -10°C to 99°C Heater Chiller w/ Water Line

1x: USA Lab 10L Thermal Shield

1x: USA Made - 12L Fractional Distillation Head - 100MM bottom - 34/45 top

1x: USA Made - 12L 2 Neck Boiling Flask - 100MM Flange & 24/40

1x: USA Made - Vacuum Take-Off Adapter - 24/40 - 1x GL-16 Cap

1x: USA Made -5000mL 1 Neck Round Bottom Flask - 24/40

1x: USA Made - 34/45 Molecular Magnet Thermowell

1x: USA Made - 24/40 Thermowell

2x: USA Made - GL-16 Connection

1x: USA Made - 24/40 Condenser w/ 2pcs GL connections

1x: USA Made - Jumbo Cold Trap

1x: 1000ml Round Bottom Flask 24/40 1 neck

2x: 2000ml Round Bottom Flask 24/40 1 neck

1x: 100MM Flange Clamp

1x: 100MM Flange o-ring

3x: 24" KF25 Below Hose

6x: KF25 Centering Ring

6x: KF25 Clamp

3x: KF25 to 24/40 Adapter w/ o-ring

1x: KF25 Tee

1x: KF25 to 1/8" FNPT for Digivac Gauge

1x: Digivac Bullseye Vacuum Gauge

5x: 24/40 Stainless Steel Keck Clamp

2x: Chain Clamp

2x: Cork Stand

1x: 8"x8" Jack Stand

1x: 16"x10"x27" Lab Stand

1x: RE-501 Stand for Cold Trap

1x: RE-501 Strap for Cold Trap w/ Holder

1x: RE-501 Ring for Cold Trap w/ Holder

12x: Boss Head Clamp

4x: 3-Finger Adjustable Clamp 0-70mm

1x: Digital Thermometer

2x: Heating Mantle Stainless Steel Threaded Pole

2x: 27" Stainless Steel Threaded Pole to attach to mantle and cold trap

1x: Stir Magnet

1x: 1 Gal. Inland 19 Vacuum Pump Oil

1x: 1 Gal. Propylene Glycol

1x: Vacuum Grease

Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.


UVP-21 SPECIFICATIONS

Electrical Requirements: 220V 15A 1100W Single Phase

•Pumping Flow Rate: 21 CFM

Ultimate Vacuum without Gas Ballast: 0.3 Micron

Ultimate Vacuum with Gas Ballast: 6 Micron

•Oil Volume: 2 Liter / 2.1 Quart

•Recommended Oil: Inland 19

•Inlet/Outlet Connection: KF25

•Motor Speed: 1720 rpm

Noise Level: <58 dB

•Working Temperature: 5-40°C

•Weight: 94Lbs

•Warranty: 2 Years



UVP-21 PACKING LIST

•USA Lab UVP-21 21cfm Vacuum Pump: 1pc

•Oil Mist Filter: 1pc

•KF25 Clamp: 2pcs

•KF25 Centering Ring: 2pcs

•KF25 to 3/8" barb: 1pc

•User Manual: 1pc






This rugged and portable vacuum gauge features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Includes a powerful magnet and kickstand to enable hands-free operation.



FEATURES:

  • • Visual graphing feature right on the display.
  • • Vacuum analytics to quickly identify vacuum pressure trends.
  • • Graphical display for quick determination of vacuum level.
  • • Hands-Free with a “hang up your overalls” strong magnet.
  • • Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury.

SPECIFICATIONS:
• Weight: 2lbs
• Shipping Dimensions: 11 x 10 x 4 in
• Vacuum Reference: Absolute
• Units: Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
• Total Range: 1E-4 - 1000 Torr
• Range Accuracy: .001 - 2.0 Torr
• Sensor Type: Thermocouple
• Portable: Yes
• Vacuum Interface: 1/8" MNPT




We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!





For Technical Support, Questions, or Other Issues Please Email or Call Us!
