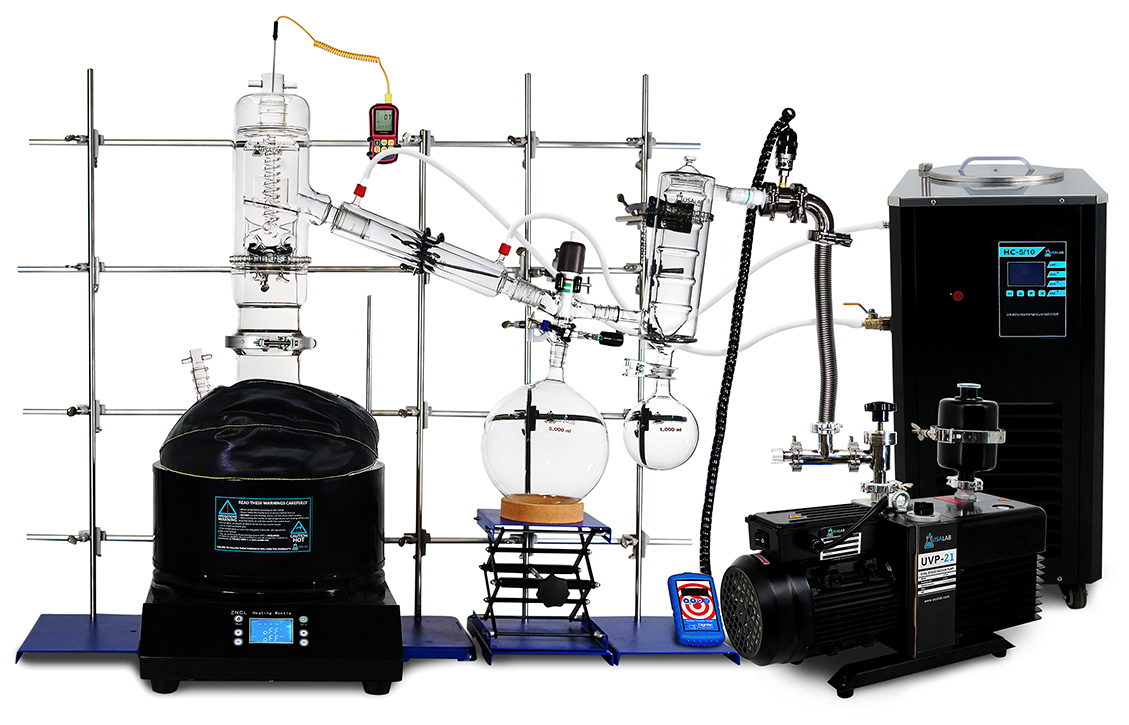

USA Lab Premium 12L N2 Short Path Distillation Turnkey Kit - USA Made Glass

USA Lab Premium 12L N2 Short Path Distillation Turnkey Kit - USA Made Glass

No reviews yet Write a Review
$15,699.00
SKU:
APSPD12L-N2TK
UPC:
810047125990
Shipping:
Calculated at Checkout
Our Premium 12L Full Bore Short Path Distillation Kit is made with high quality USA Made Glass and a specially designed 100mm 4" slanted shelf head to allow for excellent distillationhigh production and consistent results

This distillation kit comes with a 34/45 molecular magnet coiled thermowell, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, a 24/40 cold trap for large amounts of condensing, and full bore attachments to allow for high pulling vacuum.

With our 12L comes a USA Lab 5L -10°C to 99°C heater chiller for your condenser and a USA Lab UVP-21 21CFM vacuum pump for deep, high CFM vacuum.

Choose the best quality at the best value with this latice supported high quality usa made glass distillation kit.



APSPD12L-N2TK PACKING LIST

QTY

USA Lab 10L (12L) 110V ZNCL-10000ML Heating Mantle

1

USA Lab 5L HC-5/10 -10°C to 99°C Heater Chiller (Hosing Included)

1

USA Lab UVP-21 21CFM Vacuum Pump (Filter Included)

1

(USA Made) 12L 100MM Coil Fractional Distillation Head

1

(USA Made) 12L 2 Neck Boiling Flask - 100MM Main - 24/40 Side

1

(USA Made) 34/45 Condenser for 12L Head

1

(USA Made) 34/45 Isolation Adapter to 24/40 outlets

1

(USA Made)2000mL 1 Neck Round Bottom Flask - 24/40

2

(USA Made)5000mL 1 Neck Round Bottom Flask - 24/40

1

(USA Made) High EfficiencyDewar Cold Trap - S35/20

1

(USA Made)Lid for Cold Trap

1

(USA Made) 1000mL 1 Neck Round Bottom Flask - S35/20

1

(USA Made)24/40 Thermowell for 12L Flask

1

(USA Made) 45/50 Coiled Thermowell for 12L 100MM Head

1

 (USA Made) GL-14 Connection

2

USA Lab 12L Thermal Shield

1

Digivac Bullseye Vacuum Gauge

1

Thermometer with 2 ports

1

Longer Probe For Thermometer

1

Large Cork Stand

2

S35/20 Clamp

1

8"x8" Eisco Blue Jack Stand

1

Rubber Feet for Eisco Blue Jack Stand

4

Eisco 12"x8"x39.5" Blue Lab Stand

3

Eisco 11"x6"x35.5" Blue Lab Stand

1

Eisco Heavy Duty Grey Boss Clamp (For Latice Support)

24

Eisco 3-Finger Blue Adjustable Clamp

3

Eisco 48" Aluminum Rod for Latice Support

4

Fisher Scientific Blue Chain Clamp

2

Chem-Glass 100MM Ring Clamp

1

Chem-Glass 100MM Viton O-ring

1

KF25 Right Angle Valve

1

KF25 Pressure Release Valve

1

KF25 to 1/8" FNPT to KF25 Adapter for Digivac Gauge

1

KF25 36" Bellow Hose

1

KF25 Clamp

7

KF25 Centering Ring

7

KF25 3-way Tee

1

KF25 90° Bend

1

KF25 to 24/40 PTFE Adapter

1

1 Gallon of Propylene Glycol

1

1 Gallon of Inland 19 Vacuum Pump Oil

1

High Quality Apiezon 501 Vacuum Grease

1


Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.


UVP-21 SPECIFICATIONS

Electrical Requirements: 220V 15A 1100W Single Phase

•Pumping Flow Rate: 21 CFM

Ultimate Vacuum without Gas Ballast: 0.3 Micron

Ultimate Vacuum with Gas Ballast: 6 Micron

•Oil Volume: 2 Liter / 2.1 Quart

•Recommended Oil: Inland 19

•Inlet/Outlet Connection: KF25

•Motor Speed: 1720 rpm

Noise Level: <58 dB

•Working Temperature: 5-40°C

•Weight: 94Lbs

•Warranty: 2 Years



UVP-21 PACKING LIST

•USA Lab UVP-21 21cfm Vacuum Pump: 1pc

•Oil Mist Filter: 1pc

•KF25 Clamp: 2pcs

•KF25 Centering Ring: 2pcs

•KF25 to 3/8" barb: 1pc

•User Manual: 1pc






This rugged and portable vacuum gauge features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Includes a powerful magnet and kickstand to enable hands-free operation.



FEATURES:

  • • Visual graphing feature right on the display.
  • • Vacuum analytics to quickly identify vacuum pressure trends.
  • • Graphical display for quick determination of vacuum level.
  • • Hands-Free with a “hang up your overalls” strong magnet.
  • • Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury.

SPECIFICATIONS:
• Weight: 2lbs
• Shipping Dimensions: 11 x 10 x 4 in
• Vacuum Reference: Absolute
• Units: Torr, mbar, bar, kPa, inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa
• Total Range: 1E-4 - 1000 Torr
• Range Accuracy: .001 - 2.0 Torr
• Sensor Type: Thermocouple
• Portable: Yes
• Vacuum Interface: 1/8" MNPT




We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!





For Technical Support, Questions, or Other Issues Please Email or Call Us!
