USA Lab 5000mL / 5L Turn Key Short Path Distillation Kit

USA Lab 5000mL / 5L Turn Key Short Path Distillation Kit

No reviews yet Write a Review
$6,449.95
SKU:
SPD5LTK
UPC:
810047125860
Condition:
New
Shipping:
Calculated at Checkout
Model:
SPD5LTK
MPN:
SPD5LTK
Brand:
USA Lab

New


Our 5L Turn Key Short Path Distillation Kit is made with 3.3 Borosilicate glass and a specially designed head to allow for excellent distillation at a great value. Each glassware kit comes with a USA Lab -10°C to 99°C Heater Chiller and a USA Lab UVP-21 21 CFM Vacuum Pump

This kit is designed for high production and consistent results. Don't spend all your money on overpriced distillation kits. Get started right away at a fraction of the cost

THIS KIT INCLUDES THE FOLLOWING:

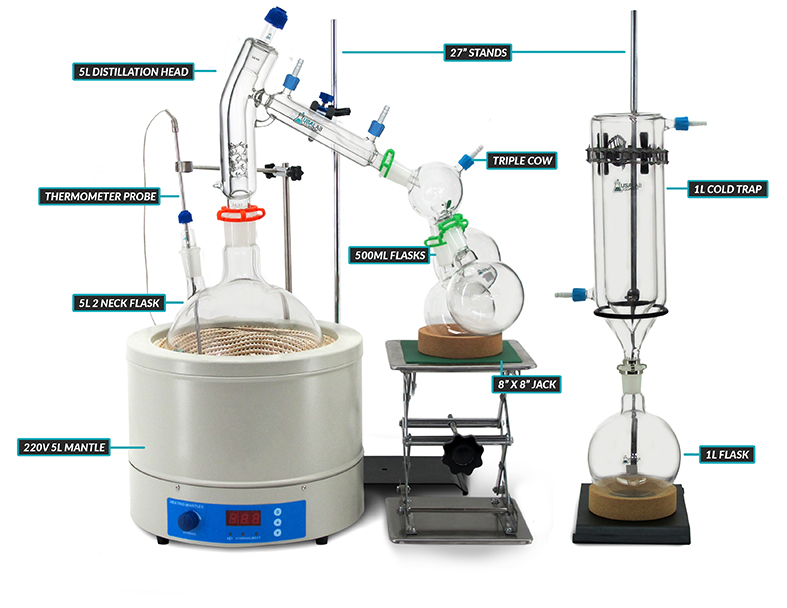

•USA Lab 5L Short Path Distillation Kit with Heating Mantle
•USA Lab 5L -10°C to 99°C Heater Chiller
USA Lab UVP-21 21cfm Vacuum Pump
•10Ft Vacuum Hose
•10Ft Water Line
•Adapters for Water Line
•1 Gal of USA Lab Inland 19 Vacuum Pump Oil
•1 Gal of USA Lab Propylene Glycol
•USA Lab Vacuum Grease 3oz.

Center cow flask can handle 1L or 2L round bottom flask as a upgrade
Mantle probe size is 5mm



Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.
• Corrosion-resistant vanes for premium reliability.
• Low noise level and noise-dampening rubber feet.
• Internal check-valve, preventing accidental back-flow.
• Easy to change oil mist filter.
• Large oil reservoir.


UVP-21 SPECIFICATIONS

Electrical Requirements: 220V 15A 1100W Single Phase

•Pumping Flow Rate: 21 CFM

Ultimate Vacuum without Gas Ballast: 0.3 Micron

Ultimate Vacuum with Gas Ballast: 6 Micron

•Oil Volume: 2 Liter / 2.1 Quart

•Recommended Oil: Inland 19

•Inlet/Outlet Connection: KF25

•Motor Speed: 1720 rpm

Noise Level: <58 dB

•Working Temperature: 5-40°C

•Weight: 94Lbs

•Warranty: 2 Years




UVP-21 PACKING LIST

•USA Lab UVP-21 21cfm Vacuum Pump: 1pc

•Oil Mist Filter: 1pc

•KF25 Clamp: 2pcs

•KF25 Centering Ring: 2pcs

•KF25 to 3/8" barb: 1pc

•User Manual: 1pc


SKU: SPD5LTK

ships on a pallet
L48" x W32" xH55"   330 lbs

We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!





For Technical Support, Questions, or Other Issues Please Email or Call Us!





USA Lab Equipment



Livonia, MI 48150
