USA Lab 2LB Top Fill Closed Loop Extractor w/ Jacketed Base

Brand :

$2,989.00
SKU:
2LB-JB
Condition:
New
Shipping:
Calculated at Checkout
Brand:
USA Lab
Material:
304 Stainless
Material Column Size (in):
3 x 36 (in)
Max Material:
2lb of milled material
***DISCLAIMER*** Our closed loop systems are intended for legal purposes only. They are to be used in well ventilated areas and under accordance with local laws.

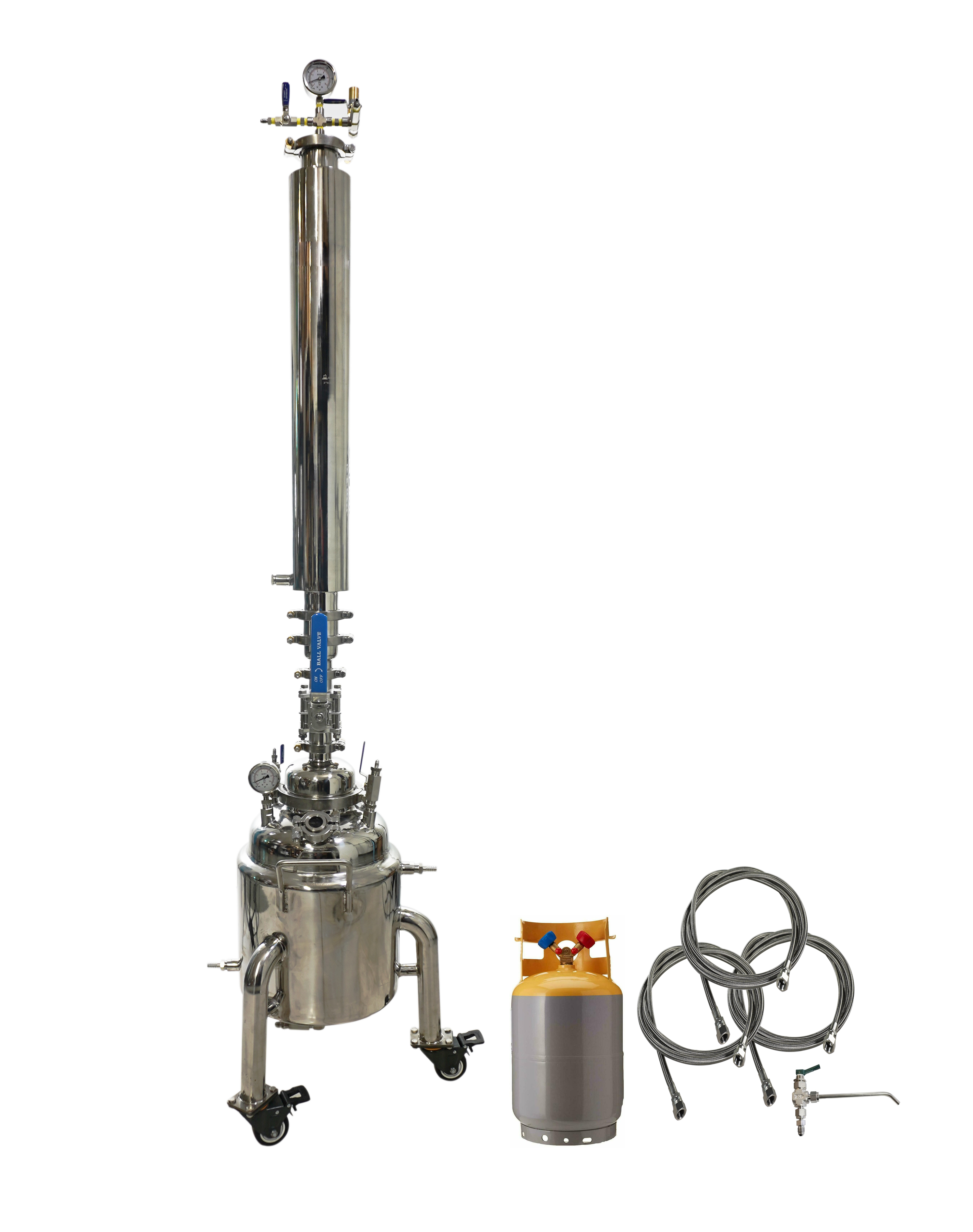

Our 2lb closed loop system is a fully sealed, fully closed system that allows users to perform botanical extraction while maintaining a closed loop system, exposing no solvents to the air. This system is a passive unit that allows users to change pressure in the system via temperature change. Our 2lb system has been fully upgraded with high quality polished 304 stainless steel parts, premium superlok ball valves, 3.3 borosilicate sight glass, and high pressure clamps. No expense has been spared with this system to provide high quality parts at an affordable price.


Packing List

Model

SKU

Quantity

50LB Jacketed Solvent Tank- Coil and Drain Arm Not Included

SOLV-50LB-JACK

1

Hemispherical Reducer - Tri Clamp 6" to 2"

HR-6TO2

1

2" Tri-Clamp Ball Valve Sanitary Stainless

2TCBV

1

Hemispherical Reducer - Tri Clamp 3" to 2"

HR-3TO2

1

Filter Plate Kit - Tri Clamp 3" With 100 Micron Mesh & Filter Ring

FP-3IN

1

Sleeved Dewaxing Material Column - Tri Clamp 3" x 36" w/ 1/2" FNPT

DWS-3X36

1

3" Tri-Clamp to 1/4" FNPT Shower Head End Cap

SH14-3

1

3" High Pressure Tri Clamp

HPTC3

3

 3" Buna-N Gasket

BUNA-3

3

2" High Pressure Tri Clamp

HPTC2

2

 2" Buna-N Gasket

BUNA-2

2

1.5" Tri-Clamp End Cap with 1/2 FNPT

CAP15-12

1

1.5" High Pressure Tri Clamp

HPTC15

1

 1.5" Buna-N Gasket

BUNA-15

1

Street Elbow 90 Degrees

MNMN90-12-38

1

3/8" Superlok FNPT 210 Series Ball Valve

SLBV-38

1

3/8" MNPT To MJIC Adapter

MNMJ-38-38

1

1/2" Steel Hose Barb x MNPT

MNB-12-12

2

1/4" NPT Glycerin Compound Gauge- Bottom Mount

GAUGEBOT-14

2

1/2" MNPT x MNPT Hex Nipple Union

MNMN-12-12

1

1/2" Superlok FNPT 210 Series Ball Valve

SLBV-12

1

1/2" x 1/4" MNPT To MJIC Adapter

MNMJ-12-14

1

1/4" MNPT x MNPT Hex Nipple Union

MNMN-14-14

3

1/4" Superlok FNPT 210 Series Ball Valve

SLBV-14

3

1/4" x 1/4" MNPT To MJIC Adapter

MNMJ-14-14

3

1/4" MxFxFxF 4 Way Union

FFFM4W-14

1

1/4" MxFxF Street Tee NPT

MFFTEE-14-14

1

1/4" MNPT to FNPT Street Elbow Adapters

MNFN90-14-14

1

1/4" MNPT Generant Cryogenic Relief Valve - 100PSI

CRV-100

1

BUSHING 1/2" MNPT to 1/4" FNPT

BMNFN-12-14

1

1/2" Stainless Steel Threaded Plug

SSPLUG12

2

3/8" Superlok Sauce Valve / Dispensing Wand

SS-V-3/8

1

USA Made 1/4" 37° JIC Stainless Steel Hose - 96"

USAJICHOSE14-96

1

USA Made 1/4" 37° JIC Stainless Steel Hose - 48"

USAJICHOSE14-48

1

USA Made 3/8" 37° JIC Stainless Steel Hose - 48"

USAJICHOSE38-48

1

Mastercool Refrigerant Recovery Tank 30LB

MC-RT-30LB

1



For Technical Support, Questions, or Other Issues Please Email or Call Us!


Brand:
USA Lab
Material:
304 Stainless
Material Column Size (in):
3 x 36 (in)
Max Material:
2lb of milled material
