12" Pressurized Buchner Funnel with 50L or 100L Keg




Brand :

$2,249.00
Condition:
New
Brand:
USA Lab

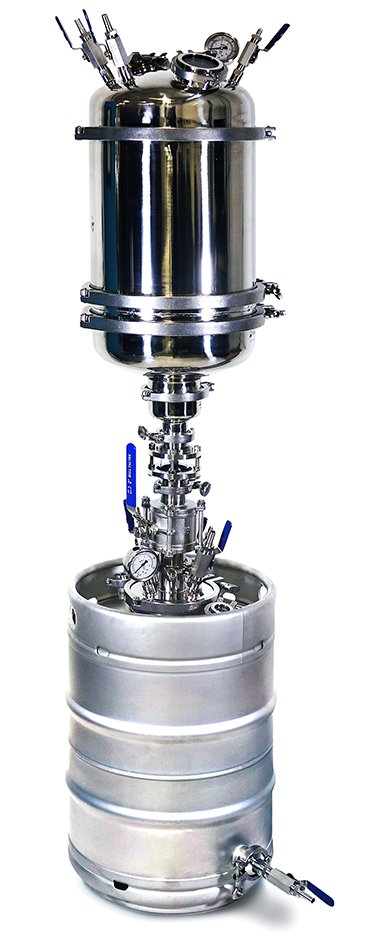

The USA Lab 12" Buchner Funnel Kit With Lid allows for infeed, assisted pressure and pressure releasing all in one unit. We've designed this buchner funnel to allow the user to customize the unit and lid to whatever need they may have. This system feeds directly into a 50L or a 100L keg for maximum storage and ease of use. The keg is equipped with 2 dip tubes allowing for extraction through vacuum or pressure. Step up your filtering game and get started today with our 12" Buchner Funnel Kit.

12BUCHNERKEG SPECIFICATIONS

Material: 304 Stainless Steel

Side Connections: 1.5" TC (1.5" to KF25 Included)

Top Connection: 2x (3" TC for Glass), 2x (1/2"MNPT to 1/2" Barb), 1x (1/4"MNPT to 1/4"MJIC for Nitrogen), 1x (1/4" FNPT for Gauge)

Keg Connection: 2x (1.5" TC for Glass), 2x (1/2" FNPT to 1/2" Barb), 1x (1/2" FNPT to 1/4"MJIC for Nitrogen or Vacuum), 1x (1/4" FNPT for Gauge), 1x (2" TC for Top Port)

Keg Bottom Connection: 1.5" TC to 1/2" Barb

Buchner Capacity: 22L

Keg Capacity: 50L or 100L




PACKING LIST

50L or 100L Keg with 1.5" TC Sight Glass

1 pc

50L or 100L Keg Lid with Dip Tubes

1 pc

2" TC Ball Valve

1 pc

2" Short Sight Glass

1 pc

2" TC to 12" TC Hemi Reducer

1 pc

12" Filter Plate Kit

1 pc

12" x 12" TC Spool

1 pc

12" Hemi Lid with 2x 3" TC

1 pc

1.5" Borosilicate Sight Glass

2 pcs

2" Borosilicate Sight Glass

2 pcs

1.5" Buna-N Gasket

1 pc

2" Buna-N Gasket

2 pcs

12" Buna-N Gasket

3pcs

1.5" Standard Pressure Tri-Clamp

3pcs

2" Standard Pressure Tri-Clamp

3 pcs

4" Standard Pressure Tri-Clamp

1 pc

12" Standard Pressure Tri-Clamp

3 pcs

1/4" Superlok Valve

2 pcs

1/2" Superlok Valve

5 pcs

1/2" MNPT to 1/2" Barb

5 pcs

1/4" MNPT to 1/4" MNPT

1 pc

1/2" MNPT to 1/4" MNPT

1 pc

1/4" MNPT to 1/4" MJIC

2 pcs

1/2" MNPT to 1/2" MNPT

5 pcs

1/4" Gauge

2 pcs

1.5" TC to 1/2" FNPT

1 pc



For Technical Support, Questions, or Other Issues Please Email or Call Us!


Brand:
USA Lab
Fittings and steel do NOT carry any warranty. Fittings and steel items with a defect or other issue must be identified within 30 days of arrival and USA Lab MUST be contacted. After 30 days, there will be no replacements sent for fittings or steel items with a defect or issue. Cross threading, misuse, improper storage, or improper care of fittings/steel are considered user error and are not covered under warranty.
